Description
Product Overview

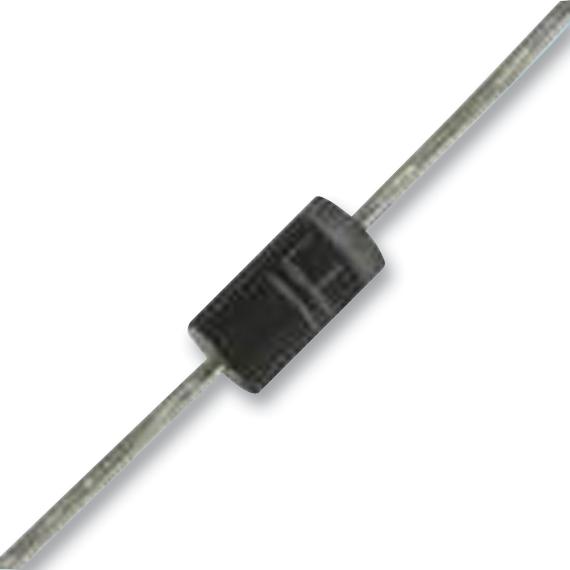

The TRANSZORB P6KE series Transient Voltage Suppressor Diode offers 600W peak pulse power capability with a 10/1000μs waveform, 0.01% repetitive rate (duty cycle). It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- Glass passivated chip junction
- Available in unidirectional and bidirectional
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- -55 to 175°C Operating junction temperature range
Applications
Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Product details
| Product Range | P6KE4 |
| Reverse Standoff Voltage | 40.2V |
| Diode Case Style | DO-204AC |
| Minimum Breakdown Voltage | 44.7V |
| Peak Pulse Power Dissipation | 600W |
| Diode Mounting | Through Hole |
| SVHC | Lead (04-Feb-2026) |
| TVS Polarity | Bidirectional |
| Clamping Voltage Max | 64.8V |
| No. of Pins | 2Pins |
| Maximum Breakdown Voltage | 49.4V |
| Operating Temperature Max | 175°C |
| Qualification | - |
Other details
| Brand | VISHAY |
| Part Number | P6KE47CA-E3/54 |
| Quantity | Each |
| Product Change Notice (315.07KB) EN | View or download |
| Technical Data Sheet (133.00B) EN | View or download |
| Packaging / Drawing / Footprint (226.00KB) EN | View or download |
