| ₹ 9980.77 includes GST and import duties. | |
| B2B customers can avail ₹ 1522.07 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

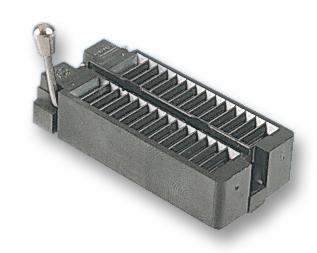

The 6554 series universal zero insertion force DIP Test Socket accepts devices on 0.3 to 0.6-inch centres. The socket handle can be configured with closed contacts (ON) when in the UP or DOWN position and can be mounted on either the right or left side. It can be soldered into PCB or plugged into any socket. Socket fits into Aries or any competitive test socket receptacle. It is made of glass-filled polyphenylene sulphide (PPS) body with gold-plated beryllium copper contacts and stainless steel handle.
- Contacts are normally closed to eliminate dependence on plastic to sustain contact
- 1A Contact current rating
- 1000MΩ Minimum insulation resistance
- 25000 to 50000 Life cycles
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| No. of Contacts | 40Contacts |
| Pitch Spacing | 2.54mm |
| Row Pitch | 15.24mm |
| Contact Plating | Gold Plated Contacts |
| Connector Type | DIP |
| Product Range | 6554 |
| Contact Material | Beryllium Copper |
Other details
| Brand | ARIES |
| Part Number | 40-6554-11 |
| Quantity | Each |
| Technical Data Sheet (477.20KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9781.15 |
| 3-5 | ₹ 9681.35 |
| 5-10 | ₹ 9481.73 |
| 10+ | ₹ 9282.12 |
Bulk discount will be automatically applied during checkout based on quantity.
