Description
Product Overview

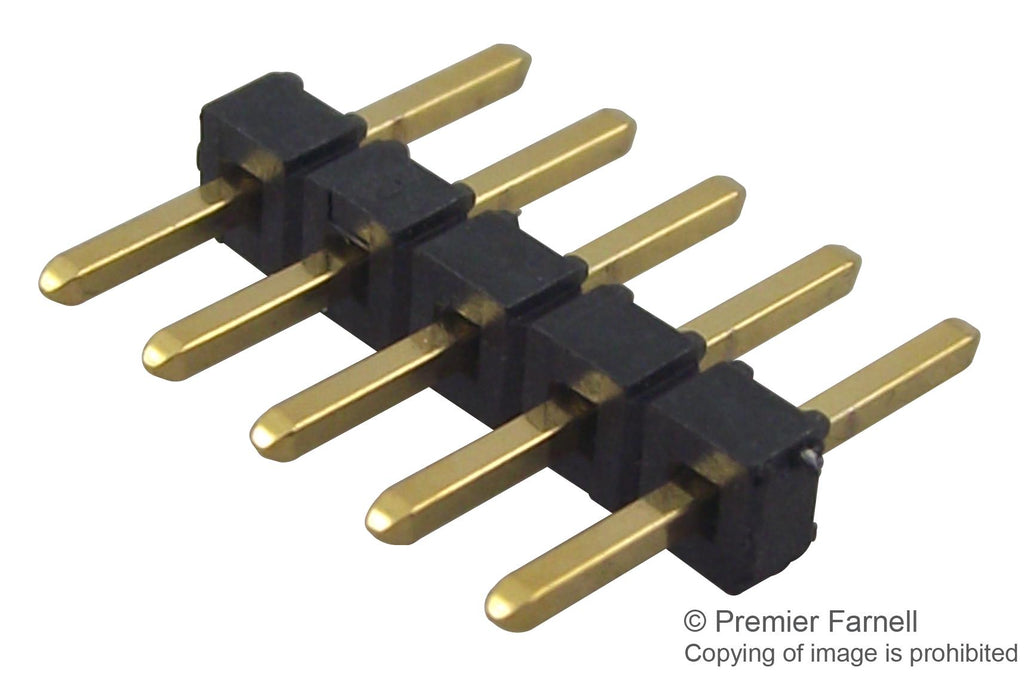

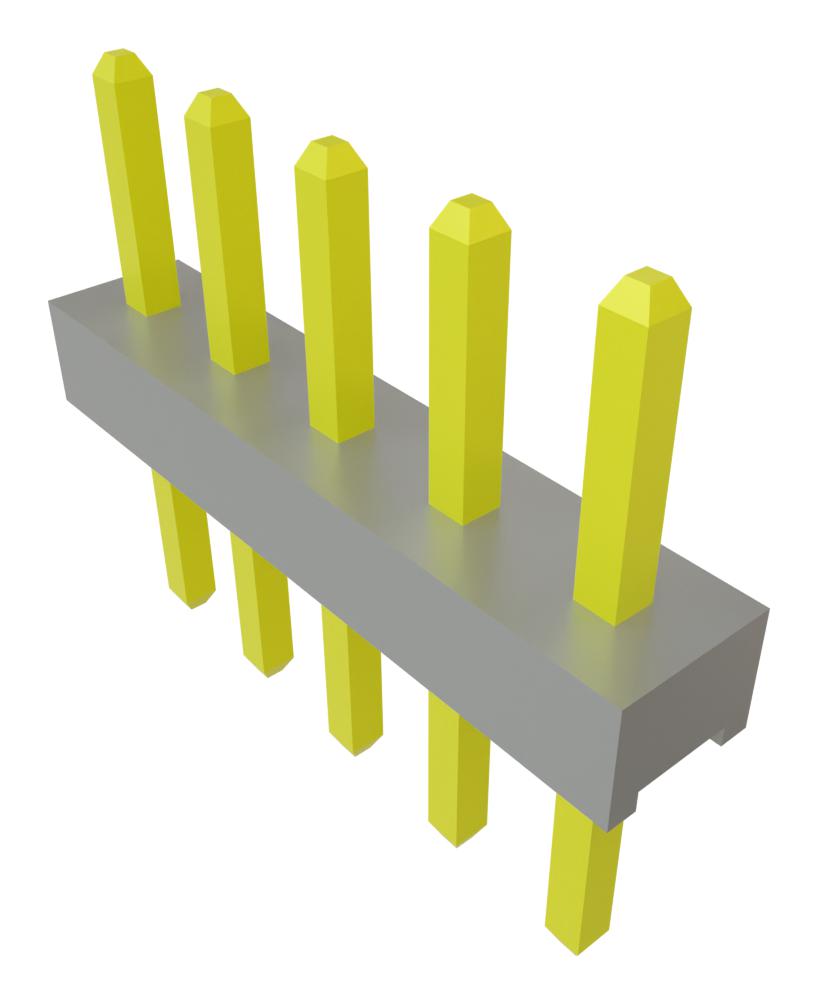

TMM-105-01-G-S is a TMM series, single row, 2mm (0.0787") pitch, low profile Tiger Eye™ header strip.
- Pin header connector
- 5 number of contacts
- Through hole contact termination and straight connector orientation
- LCP (Liquid Crystal Polymer) connector body and phosphor bronze contact material
- Gold plated contacts
- Voltage rating is 281V AC/397V DC (mated with SQW)
- Operating temperature range from -55°C to +125°C
- Current rating is 3A per pin (2 pin powered)
- Special feature: FleXYZ™ provides design flexibility in all three axes
- Mates with CLT, SQT, SQW, ESQT, TLE, SMM, MMS series (board) and TCSD series (cable)
Applications
Industrial
Product details
| Connector Systems | Board-to-Board |
| No. of Rows | 1Rows |
| Contact Termination Type | Through Hole |
| Connector Shroud | Unshrouded |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 2mm |
| No. of Contacts | 5Contacts |
| Product Range | TMM |
| Contact Material | Phosphor Bronze |
| Connector Type | Pin Header |
Other details
| Brand | SAMTEC |
| Part Number | TMM-105-01-G-S |
| Quantity | Each |
| Drawing (68.00B) EN | View or download |
| Manufacturer Catalogue (17.23MB) EN | View or download |
| Technical Data Sheet (54.00B) EN | View or download |
| Enhanced Product Overview (56.00B) EN | View or download |
