Description
Product Overview

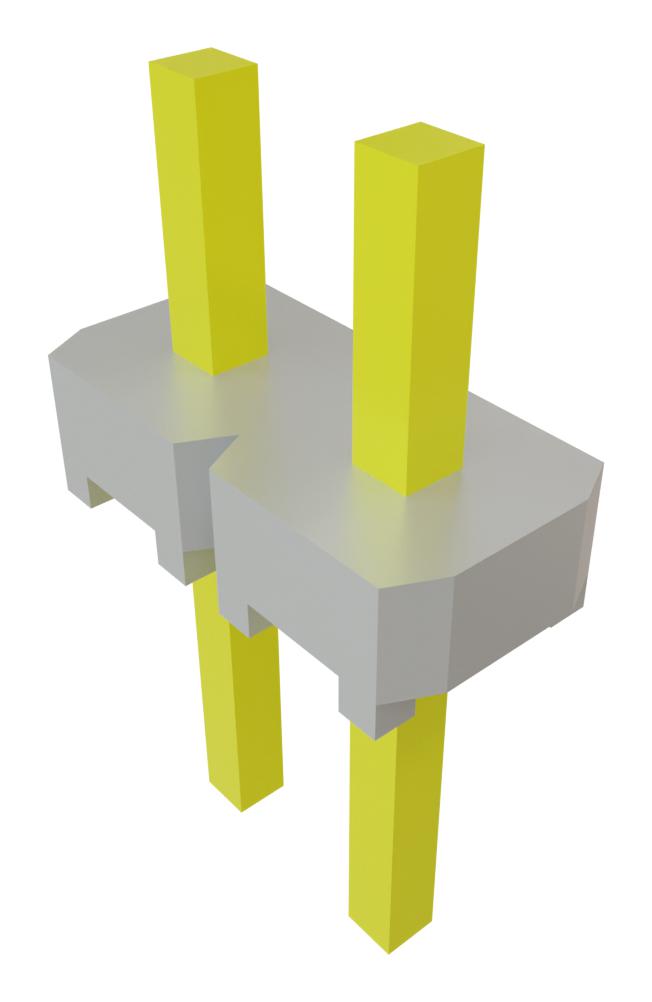

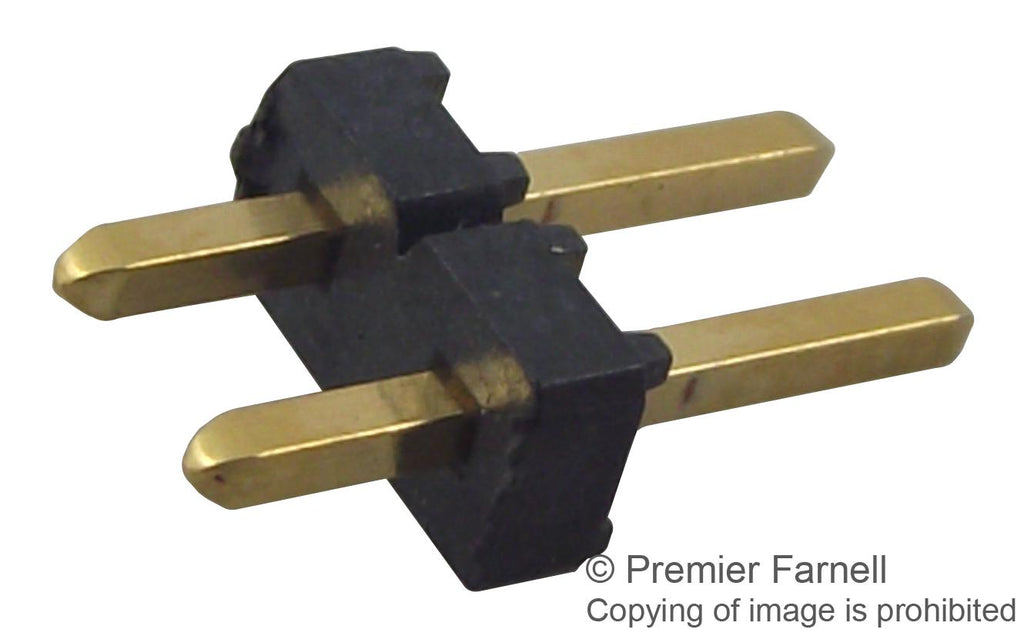

The TLW-102-05-G-S is a 2-pole 1-row 2.54mm Low Profile Terminal Strip, 10μinch (0.25μm) gold-plated phosphor bronze contact and LCP insulator. The TLW series terminal strip compatible with CES, HLE, ISDM, ISSM, MNT, SLW, SMSD, SMSS, SNT, SSQ and SSW series connectors. These headers provide the ultimate low profile 0.025-inch (0.64mm) square post board stacking system. The high quality phosphor bronze terminals are available with a standard short post height for mating with low profile sockets.
- Black colour
- 5.2A Current rating
- Lead-free solderable
- Through-hole termination
Applications
Industrial
Product details
| Connector Systems | Board-to-Board |
| No. of Rows | 1Rows |
| Contact Termination Type | Through Hole |
| Connector Shroud | Unshrouded |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 2.54mm |
| No. of Contacts | 2Contacts |
| Product Range | TLW |
| Contact Material | Phosphor Bronze |
| Connector Type | Pin Header |
Other details
| Brand | SAMTEC |
| Part Number | TLW-102-05-G-S |
| Quantity | Each |
| Drawing (68.00B) EN | View or download |
| Enhanced Product Overview (56.00B) EN | View or download |
| CAD CadSoft_EAGLE (2.28KB) EN | View or download |
| Technical Data Sheet (793.56KB) EN | View or download |
