Description
Product Overview
The CY62147EV30LL-45ZSXI is a 4-Mbit high performance CMOS Static Random Access Memory (SRAM) organized as 256K words by 16-bit. This device features advanced circuit design to provide ultra low active current. It is ideal for providing More Battery Life™ (MoBL®) in portable applications such as cellular telephones. The device also has an automatic power down feature that significantly reduces power consumption when addresses are not toggling. Placing the device into standby mode reduces power consumption by more than 99% when deselected. To write to the device, take chip enable and write enable inputs LOW. If byte low enable is LOW, then data from I/O pins is written into the location specified on the address pins. If byte high enable is LOW, then data from I/O pins is written into the location specified on the address pins. To read from the device, take chip enable and output enable LOW while forcing the write enable HIGH.
- Very high speed - 45ns
- Pin compatible with CY62147DV30
- Ultralow standby power
- Ultralow active power
- Easy memory expansion with CE and OE
- Automatic power down when deselected
- CMOS for optimum speed/power
Applications
Computers & Computer Peripherals, Industrial, Portable Devices
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| SRAM Type | Asynchronous SRAM |
| Memory Configuration | 256K x 16bit |
| No. of Pins | 44Pins |
| Supply Voltage Max | 3.6V |
| Clock Frequency Max | - |
| Operating Temperature Min | -40°C |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
| Memory Density | 4Mbit |
| IC Case / Package | TSOP |
| Supply Voltage Min | 2.2V |
| Supply Voltage Nom | 3V |
| IC Mounting | Surface Mount |
| Operating Temperature Max | 85°C |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | INFINEON |
| Part Number | CY62147EV30LL-45ZSXI.. |
| Quantity | Each |
| Technical Data Sheet (1.50MB) EN | View or download |

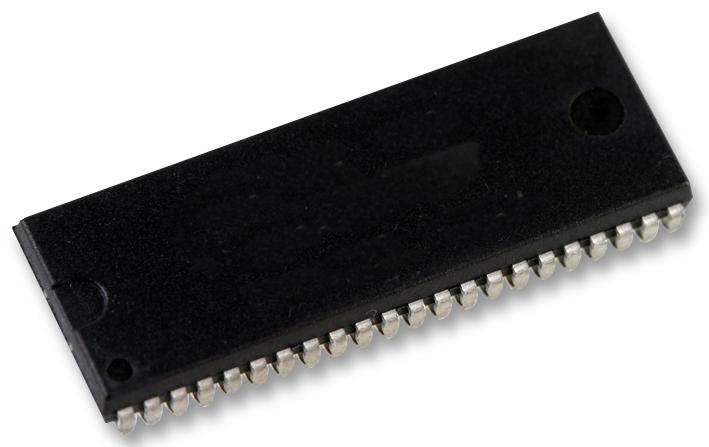

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
