Description
Product Overview
The 7914H-001-000 is a single-pole single-throw (SPST) 4mm Sealed Key Switch with through-hole terminal and NO Au contacts and 1.65mm button height. Compatible with popular vacuum pick-and place equipment. It is sealed for board washing. Meets EIA/EIAJ/IPC/VRCI SMD standard outline dimensions.
- Top or side actuated
- 100mΩ Maximum contact resistance
- 100MΩ Minimum insulation resistance
- 250VAC Dielectric strength
Applications
Industrial
Product details
| Product Range | 7914 Series |
| Switch Mounting | Through Hole |
| Actuating Force | 300gf |
| Switch Dimensions (L x W) | 5mm x 5mm |
| Illumination | Non Illuminated |
| Actuator Orientation | Top Actuated |
| Actuator Style | Round Button |
| Contact Rating | 100mA at 16VDC |
| IP Rating | IP67 |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | BOURNS |
| Part Number | 7914H-001-000 |
| Quantity | Each |
| Technical Data Sheet (505.23KB) EN | View or download |

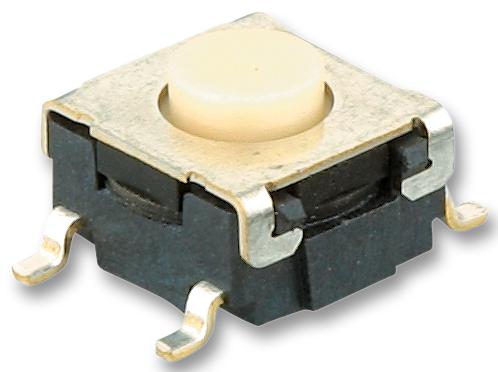

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
