Description
Product Overview

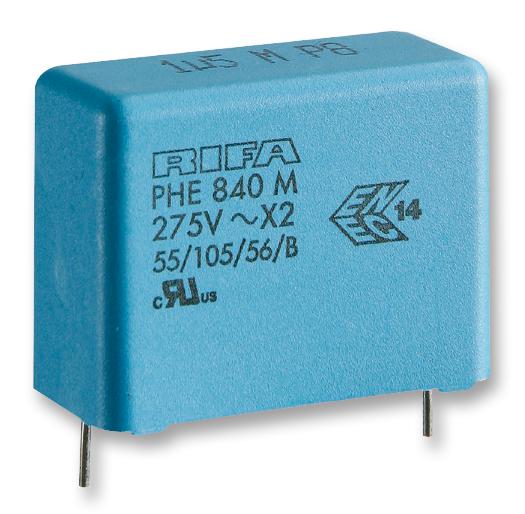

The PHE840MY6470MD14R06L2 is an EMI suppressor Film Capacitor with radial leaded terminals. Metalized polypropylene film encapsulated with self-extinguishing epoxy resin in a box of material. The low profile capacitor is suitable for electromagnetic interference suppressor in all X2 and across-the-line applications.
- UL94V-0 Flammability rating
- UL approved
- -55 to 105°C Temperature range
- 55/105/56/B Climatic category
Applications
Safety, Industrial
Product details
| Dielectric Type | Metallized PP |
| Capacitance | 0.47µF |
| Suppression Class | X2 |
| Voltage Rating X | 275VAC |
| dv/dt Rating | 100V/µs |
| Lead Spacing | 22.5mm |
| Operating Temperature Max | 105°C |
| Qualification | - |
| Capacitor Case / Package | Radial Box - 2 Pin |
| Capacitance Tolerance | ± 20% |
| Capacitor Mounting | Through Hole |
| Voltage Rating Y | - |
| Humidity Rating | GRADE II (Test Condition A) |
| Operating Temperature Min | -55°C |
| Product Range | PHE840M/F840 Series |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | KEMET |
| Part Number | PHE840MY6470MD14R06L2 |
| Quantity | Each |
| Product Change Notice (267.37KB) EN | View or download |
