Description
Product Overview

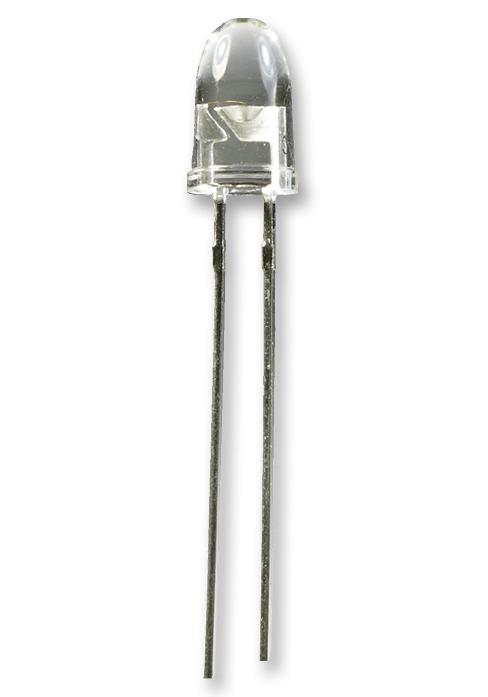

The OVLGS0C8B9 is a High-intensity LED with water clear lens. It is made of AlInGaP. The high intensity LED mounted in a clear plastic package. Each device incorporates an integral moulded lens that enables a narrow beam angle and provides an even emission pattern. Designed to produce light over a wide range of drive currents, this LED is useful in applications that require a higher on-axis brightness than that achievable with standard lamps. It is suitable for indoor/outdoor applications, variable message boards, store front signage and indicators.
- Narrow beam angle
- High brightness
- UV-resistant epoxy
- 5V Reverse voltage
- 72mW Power dissipation
- 125°C Junction temperature
Applications
Signalling, Industrial, Commercial
Product details
| LED Colour | Red |
| LED Case Size | T-1 3/4 (5mm) |
| Forward Voltage | 2V |
| Luminous Intensity | 8.55cd |
| Lens Shape | Round |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (27-Jun-2024) |
| LED Mounting | Through Hole |
| Forward Current If | 20mA |
| Wavelength Typ | 630nm |
| Viewing Angle | 6° |
| Product Range | - |
| MSL | - |
Other details
| Brand | TT ELECTRONICS / OPTEK TECHNOLOGY |
| Part Number | OVLGS0C8B9 |
| Quantity | Each |
| Technical Data Sheet (668.34KB) EN | View or download |
