Product Overview

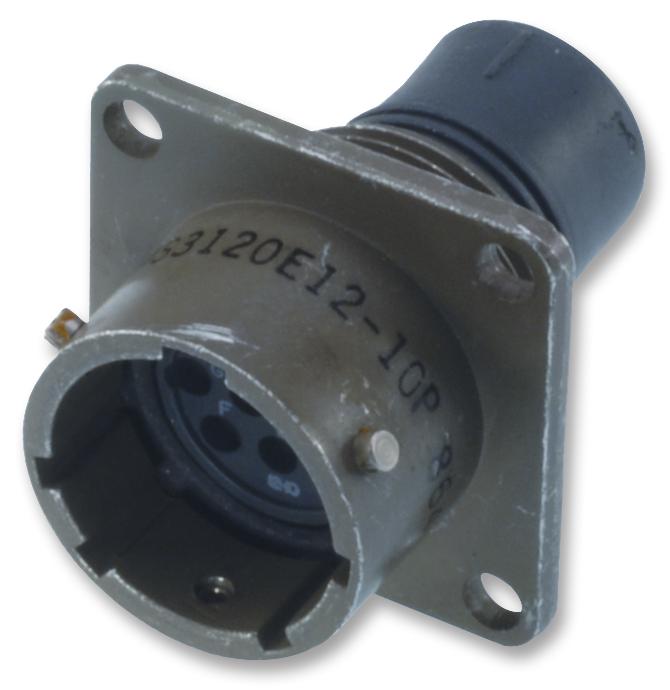

ITT CANNON KPSE00F12-10PW Circular Connector, KPS Series, MIL-DTL-26482 Series I, Wall Mount Receptacle, 10 Contacts
Product details
| Product Range |
KPS Series |
| Circular Connector Shell Style |
Wall Mount Receptacle |
| Circular Connector Contact Type |
Crimp Pin |

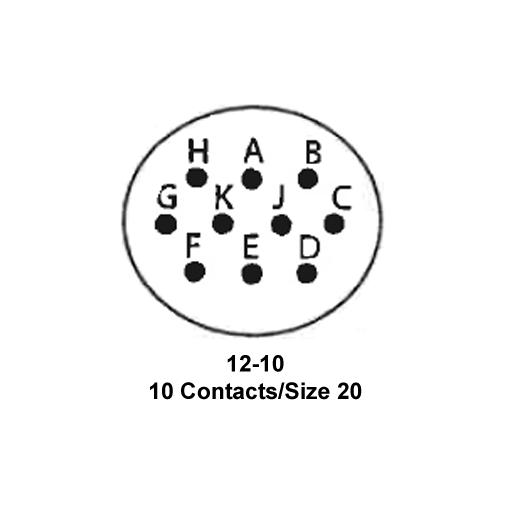

| Insert Arrangement |
12-10 |
| Connector Body Plating |
Olive Drab Chromate over Cadmium |
| Contact Plating |
Gold |
| Service Class |
Environmentally Sealed |
| Equivalent Military Specification |
MIL-DTL-26482 Series I |
| No. of Contacts |
10Contacts |
| Coupling Style |
Bayonet |
| Connector Body Material |
Aluminium Alloy Body |
| Contact Material |
Copper Alloy |
| Insert Rotation |
W |
| SVHC |
No SVHC (17-Dec-2014) |
Other details
| Brand |
ITT CANNON |
| Part Number |
KPSE00F12-10PW |
| Quantity |
Each |
| Technical Data Sheet (6.05MB) EN |
View or download |
