| ₹ 157.64 includes GST and import duties. | |
| B2B customers can avail ₹ 24.04 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

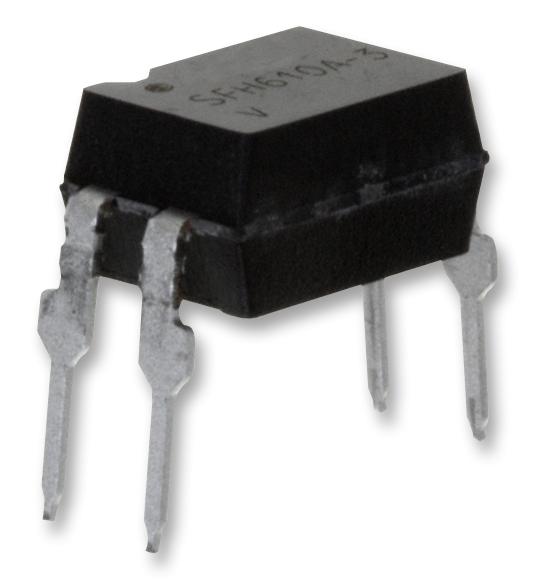

The SFH610A-2 is a 1-channel 4-pin Phototransistor Output Optocoupler features a high current transfer ratio, low coupling capacitance and high isolation voltage. This coupler has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector. The coupling device is designed for signal transmission between two electrically separated circuits. The coupler is end-stackable with 2.54mm spacing. Creepage and clearance distances of <gt/>8mm. This version complies with IEC 60950 (DIN VDE 0805) for reinforced insulation up to an operation voltage of 400VRMS or DC.
- High reliability
- Good CTR linearity depending on forward current
- Low saturation voltage
- Fast switching time
- Low CTR degradation
- Temperature stable
- Low coupling capacitance
- High common-mode interference immunity
- 70V High collector emitter voltage
- 6V Reverse voltage
- 60mA DC forward current
- 10mA Saturated current
Applications
Signal Processing
Product details
| No. of Channels | 1 Channel |
| No. of Pins | 4Pins |
| Isolation Voltage | 5.3kV |
| Collector Emitter Voltage V(br)ceo | 70V |
| SVHC | 0 |
| Optocoupler Case Style | DIP |
| Forward Current If Max | 60mA |
| CTR Min | 63% |
| Product Range | - |
Other details
| Brand | VISHAY |
| Part Number | SFH610A-2 |
| Quantity | Each |
| Product Change Notice (248.72KB) EN | View or download |
| Technical Data Sheet (133.00B) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 154.49 |
| 3-5 | ₹ 152.91 |
| 5-10 | ₹ 149.76 |
| 10+ | ₹ 146.61 |
Bulk discount will be automatically applied during checkout based on quantity.
