Description
Product Overview

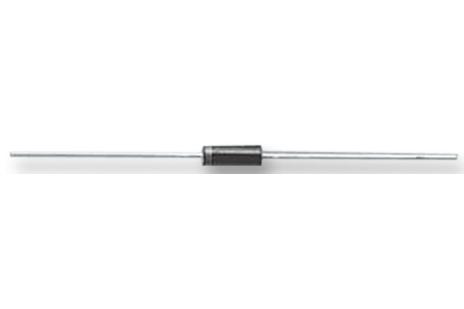

The 1N5819G is an axial-leaded Schottky Barrier Rectifier with an epoxy molded case, all external surfaces corrosion-resistant and terminal lead is readily solderable finish. This series employs the Schottky barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifier in low-voltage, high-frequency inverter and freewheeling diodes.
- Cathode indicated by polarity band
- Extremely low forward voltage
- Low stored charge and majority carrier conduction
- Low power loss and high efficiency
- 48V Non-repetitive peak reverse voltage
- 28V RMS reverse voltage
- 80°C/W Junction-to-ambient thermal resistance
Applications
Power Management, Safety
Product details
| Repetitive Peak Reverse Voltage | 40V |
| Diode Configuration | Single |
| No. of Pins | 2Pins |
| Forward Surge Current | 25A |
| Diode Mounting | Through Hole |
| Qualification | - |
| Average Forward Current | 1A |
| Diode Case Style | DO-41 (DO-204AL) |
| Forward Voltage Max | 600mV |
| Operating Temperature Max | 125°C |
| Product Range | 1N5819 |
| SVHC | Lead (25-Jun-2025) |
Other details
| Brand | ONSEMI |
| Part Number | 1N5819G |
| Quantity | Each |
| Product Change Notice (188.37KB) EN | View or download |
| Technical Data Sheet (182.63KB) EN | View or download |
