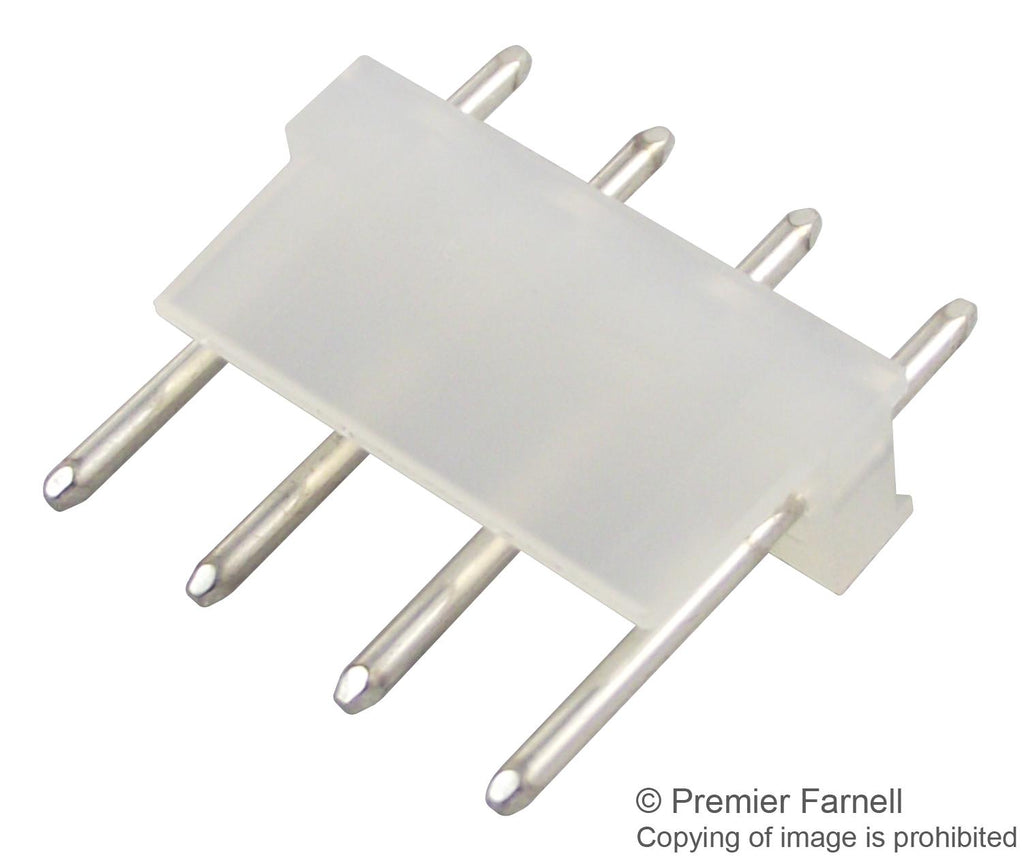

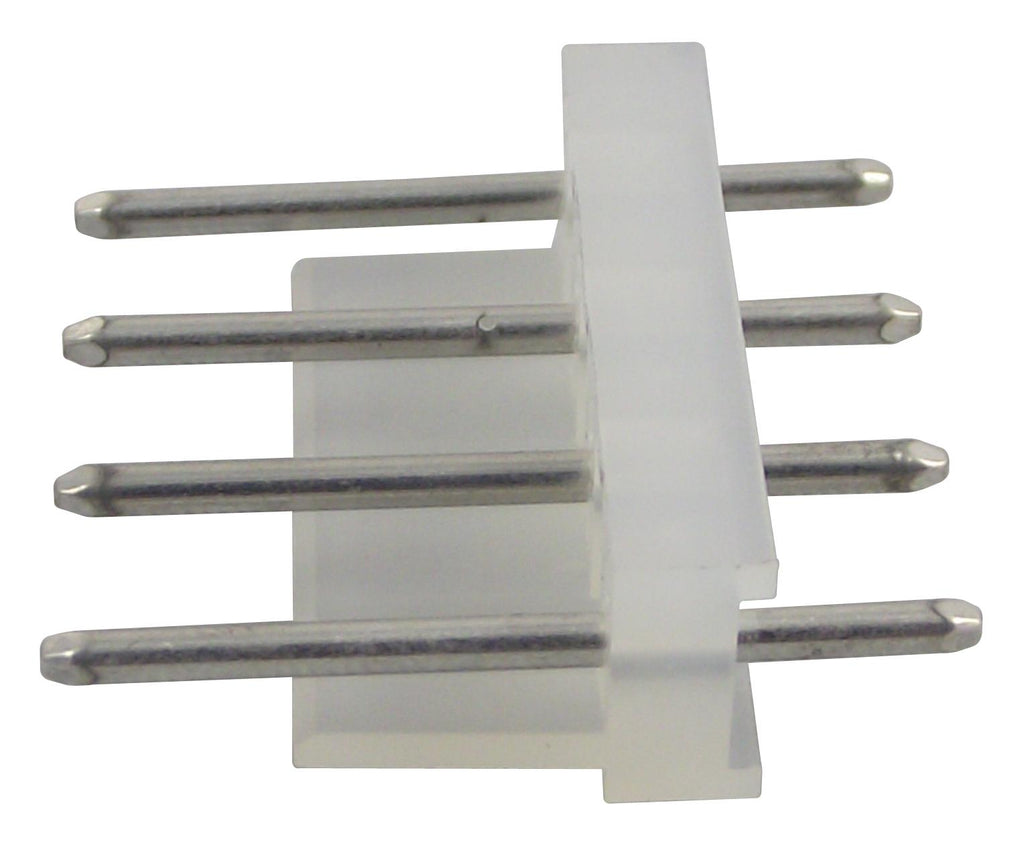

Product Overview
- Locking tangs on terminals
- Reflow matte tin plating
- Polarizing ribs on housings
- Friction lock headers; friction lock ramp housings
- Polarizing back walls
- RPC (Reflow Process Compatible) Connector System
- High-temperature nylon housing
- Signal Applications (KK 254 Connector System)
- Power Applications (KK 396 Connector System)
Product details
| Connector Systems |
Wire-to-Board |
| No. of Rows |
1Rows |
| Contact Termination Type |
Through Hole Straight |
| Connector Shroud |
Partially Shrouded |
| Contact Plating |
Matte Tin Plated Contacts |
| Connector Body Material |
Nylon 6.6 (Polyamide 6.6) Body |
| Contact Current Rating |
7A |
| Pitch Spacing |
5.08mm |
| No. of Contacts |
4Contacts |
| Product Range |
KK 508 2599 Series |
| Contact Material |
Brass |
| Connector Type |
Pin Header |
| Connector Orientation |
Straight |
| SVHC |
No SVHC (04-Feb-2026) |
