Product Overview

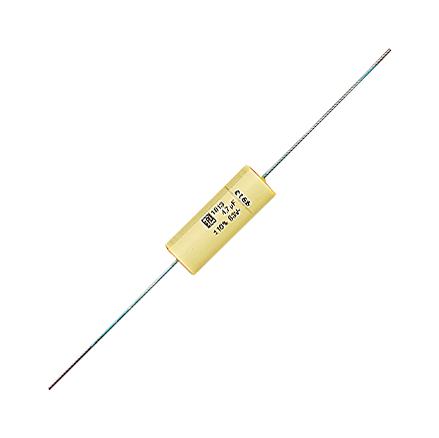

MKT1813 series is an axial DC film capacitor for low building height applications. It is used in blocking, bypassing, filtering, timing, coupling and decoupling, interference suppression in low voltage applications.
- Metallized polyester film capacitor
- Plastic-wrapped, epoxy resin sealed, flame retardant encapsulation
- Tinned wire leads
- Operational life <gt/> 3,00,000h (40°C)
- Climatic testing class according to IEC 60068-1: 55/100/56
Product details
| Dielectric Type |
Metallized PET |
| Capacitance |
0.22µF |
| Voltage(AC) |
40V |
| Capacitor Mounting |
Through Hole |
| Humidity Rating |
- |
| Product Length |
11mm |
| Product Height |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Capacitor Case / Package |
Axial Leaded |
| Capacitance Tolerance |
± 10% |
| Voltage(DC) |
63V |
| Capacitor Terminals |
PC Pin |
| Lead Spacing |
- |
| Product Width |
- |
| Product Range |
MKT1813 Series |
| Operating Temperature Max |
100°C |
| SVHC |
No SVHC (23-Jan-2024) |
Other details
| Brand |
VISHAY |
| Part Number |
MKT1813422065 |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
