Product Overview

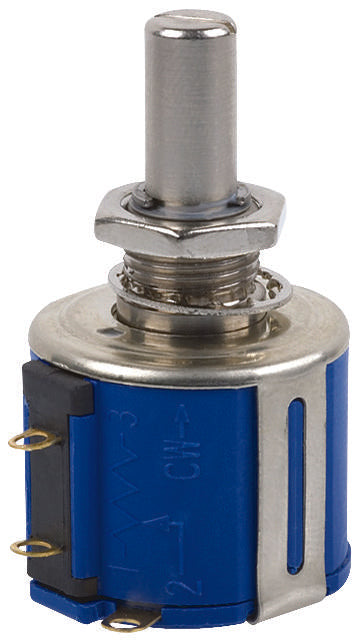

BOURNS 3541H-1-102L. Wirewound Potentiometer
Product details
| Track Resistance |
1kohm |
| No. of Turns |
10Turns |
| Track Taper |
Linear |
| Resistance Tolerance |
± 10% |
| Product Range |
3541 Series |
| Potentiometer Mounting |
Panel Mount |
| No. of Gangs |
1 |
| Shaft Length |
20.62mm |
| Temperature Coefficient |
± 100ppm/°C |
| Potentiometer Type |
Precision |
| Potentiometer Terminals |
Solder Lug |
| Product Length |
39.67mm |
| Product Width |
- |
| Operating Temperature Min |
-40°C |
| SVHC |
Lead |
| Power Rating |
2W |
| Shaft Diameter |
6.34mm |
| Adjustment Type |
Screwdriver Slot |
| Resistor Technology |
Hybritron |
| Resistor Case / Package |
- |
| Product Height |
- |
| Operating Temperature Max |
125C |
Other details
| Brand |
BOURNS |
| Part Number |
3541H-1-102L. |
| Quantity |
Each |
| Technical Data Sheet (228.80KB) EN |
View or download |
