Description
Product Overview

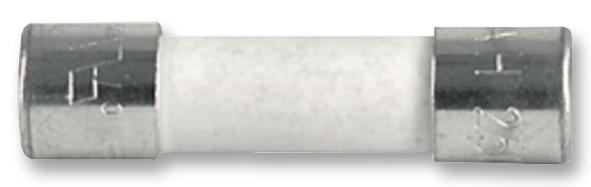

The 0001.2511 is a SPT-series 5A 250VAC time-delay anti-surge Non-resettable Fuse with ceramic tube and nickel-plated copper alloy endcaps, 5 x 20mm miniature fuse, Time-Lag T characteristic, this is an IEC standard fuse. Meets IEC 60127-2/5, UL248-14 and CSA C22.2 #248.14 standards.
- 100mV Maximum Voltage drop
- 4000mW Maximum power dissipation
- -55 to 125°C Ambient air temperature range
Applications
Safety
Product details
| Blow Characteristic | Time Delay |
| Voltage Rating VAC | 250V |
| Fuse Size Imperial | 0.2" x 0.79" |
| Breaking Capacity Current AC | 1.5kA |
| Fuse Current | 5A |
| Fuse Size Metric | 5mm x 20mm |
| Product Range | SPT |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | SCHURTER |
| Part Number | 0001.2511 |
| Quantity | Each |
| Technical Data Sheet (377.43KB) EN | View or download |
| Application Note (799.41KB) EN | View or download |
| Application Note (804.33KB) EN | View or download |
| Product Change Notice (1001.75KB) EN | View or download |
