Description
Product Overview

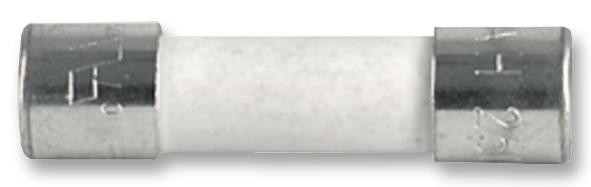

The 0001.1001 is a 0.5A/250VAC quick-acting Non-resettable Fuse with ceramic tube and nickel-plated copper alloy end caps. This SP-series fuse features high breaking capacity. Provides low voltage primary and secondary protection. Devices meet applicable international safety standards. Used for primary protection in equipment.
- 1800mV Maximum voltage drop
- 2500mW Maximum Power dissipation 1.5 In
- -55 to 125°C Operating temperature range
Applications
Safety
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Blow Characteristic | Fast Acting |
| Voltage Rating VAC | 250V |
| Fuse Size Imperial | - |
| Breaking Capacity Current AC | 1.5kA |
| Fuse Current | 500mA |
| Fuse Size Metric | 5mm x 20mm |
| Product Range | SP |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | SCHURTER |
| Part Number | 0001.1001 |
| Quantity | Each |
| Product Change Notice (1001.75KB) EN | View or download |
| Technical Data Sheet (313.50KB) EN | View or download |
| Application Note (799.41KB) EN | View or download |
| Application Note (804.33KB) EN | View or download |
