Description
Product Overview

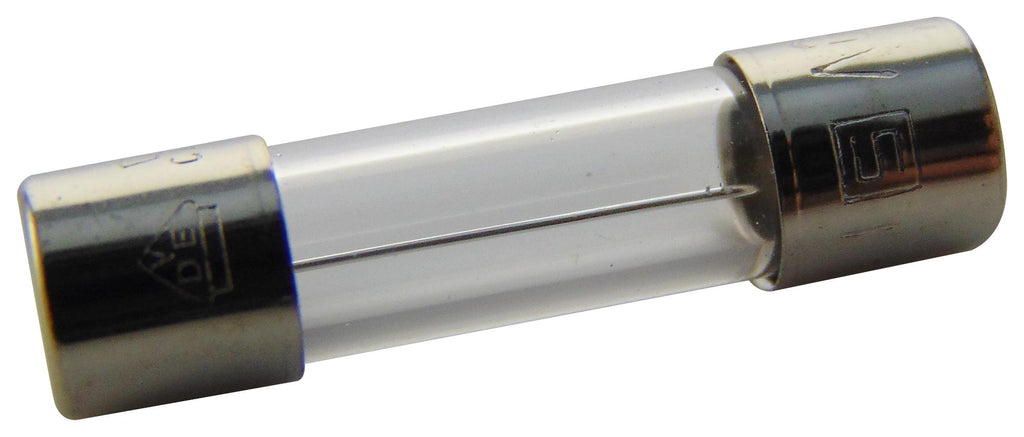

The 0034.1526 is a FSF-series 10A 250VAC fast acting cartridge Non-resettable Fuse with glass tube and nickel-plated copper alloy endcaps, 5 x 20mm miniature fuse, quick-acting F characteristic, this is an IEC standard fuse. Meets IEC 60127-2/2, UL248-14 and CSA C22.2 #248.14 standards.
- 130mV Maximum voltage drop
- 4000mW Maximum power dissipation
- -55 to 125°C Ambient air temperature range
Applications
Safety
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Blow Characteristic | Fast Acting |
| Voltage Rating VAC | 250V |
| Fuse Size Imperial | 0.2" x 0.79" |
| Breaking Capacity Current AC | 100A |
| Fuse Current | 10A |
| Fuse Size Metric | 5mm x 20mm |
| Product Range | FSF |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | SCHURTER |
| Part Number | 0034.1526 |
| Quantity | Each |
| Product Change Notice (1001.75KB) EN | View or download |
| Application Note (799.41KB) EN | View or download |
| Technical Data Sheet (311.61KB) EN | View or download |
| 3D Product Image (686.08KB) EN | View or download |
| Application Note (804.33KB) EN | View or download |
