Product Overview

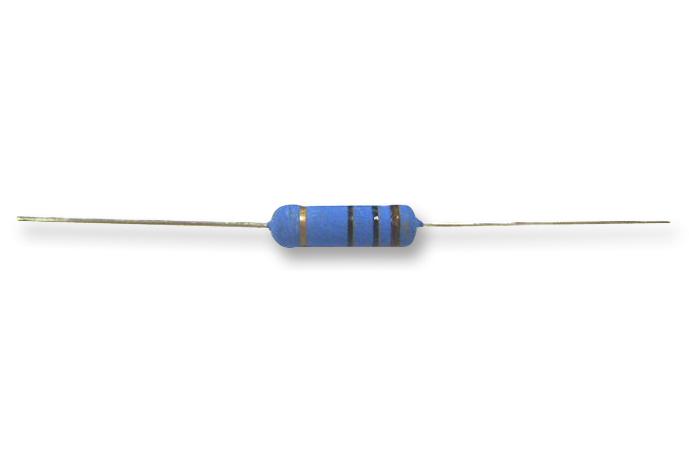

The MOR01SJ0471A10 is a Through-hole Resistor with metal oxide film element and high safety standard high purity ceramic core. It offers too low or too high ohmic value can be supplied on a case to case basis. It also offers stable performance in diverse environment and meets EIAJ-RC2655A requirements.
- Minimum 95% coverage solderability
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Product details
| Resistance |
10kohm |
| Power Rating |
500mW |
| Resistor Case / Package |
Axial Leaded |
| Resistor Technology |
Metal Oxide |
| Resistor Type |
High Stability |
| Product Length |
7.5mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Product Range |
MOR Series |
| Resistance Tolerance |
± 5% |
| Voltage Rating |
250V |
| Temperature Coefficient |
± 350ppm/°C |
| Product Diameter |
2.5mm |
| Product Width |
- |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MOR0S2J0103A50 |
| Quantity |
Each |
| Technical Data Sheet (516.85KB) EN |
View or download |
