Description
Product Overview

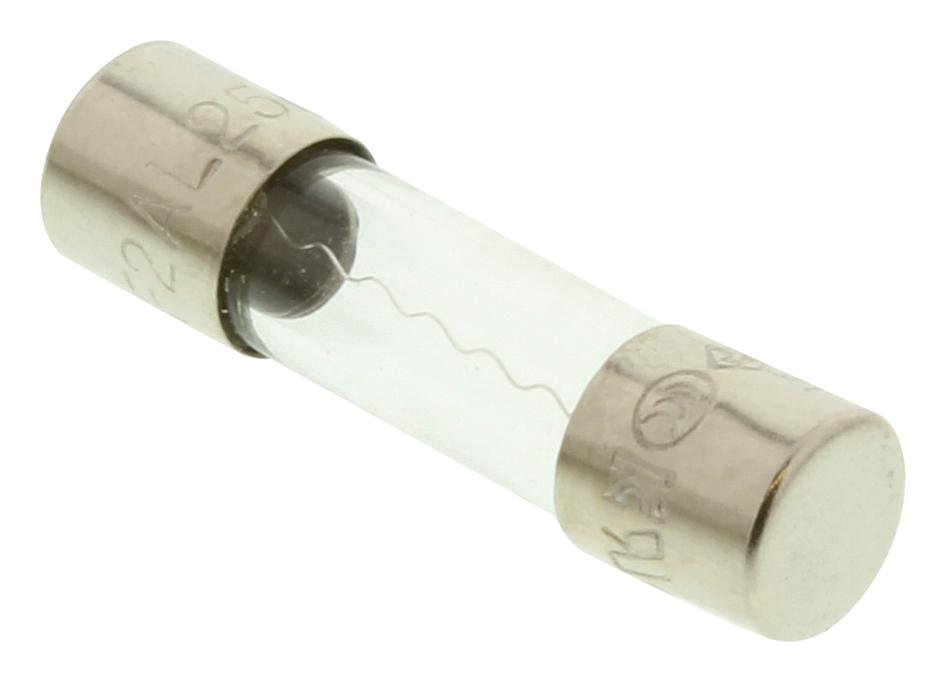

The 0217002.TXP is a 217-series 2A 250VAC quick blow fast acting Cartridge Fuse with glass body, nickel-plated brass cap and tin-plated copper leads, 5 x 20mm, fast acting characteristic, this is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits, it is designed to International (IEC ) standards for use globally. Meets the IEC 60127-2 standard.
- 170mV Maximum Voltage drop
- 0.0416Ω Cold resistance
- 1.6W Maximum power dissipation
- -55 to 125°C Operating temperature range
- Available in 35A, 40A, 50A, 63A, 80A, 100A, 150A breaking capacity
- Power dissipation of 1.6W, 2.5W, 4W
- Current rating range from 0.032A to 15A
- Operating temperature range -55°C to 125°C
Applications
Safety, Safety
Product details
| Blow Characteristic | Fast Acting |
| Voltage Rating VAC | 250V |
| Fuse Size Imperial | 0.2" x 0.79" |
| Breaking Capacity Current AC | 35A |
| Fuse Current | 2A |
| Fuse Size Metric | 5mm x 20mm |
| Product Range | 217 |
| SVHC | No SVHC (23-Jan-2024) |
Other details
| Brand | LITTELFUSE |
| Part Number | 0217002.TXP |
| Quantity | Each |
| Miscellaneous (248.62KB) EN | View or download |
| Technical Data Sheet (760.18KB) EN | View or download |
| Product Change Notice (225.22KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
