| ₹ 330.11 includes GST and import duties. | |
| B2B customers can avail ₹ 50.34 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

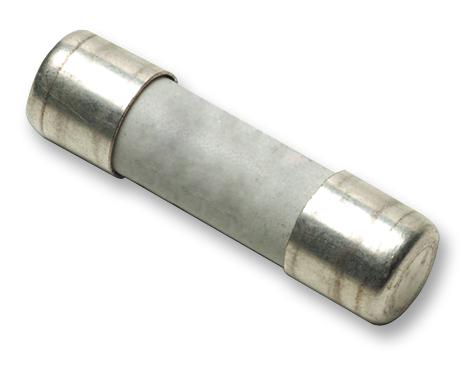

The 0216016.MXP is a 16A/250VAC fast acting Cartridge Fuse with ceramic body, tin-plated copper leads and nickel-plated brass cap. The 216-series cartridge fuse designed to International (IEC ) standards for use globally. Meets the IEC 60127-2, sheet 1 specification for fast-acting fuses. Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- 200mV Maximum voltage drop
- 4.5W Maximum power dissipation at 1.5ln
- 0.004Ω Nominal cold resistance
- -55 to 125°C Operating temperature range
Applications
Safety
Product details
| Blow Characteristic | Fast Acting |
| Voltage Rating VAC | 250V |
| Fuse Size Imperial | 0.2" x 0.79" |
| Breaking Capacity Current AC | 750A |
| Fuse Current | 16A |
| Fuse Size Metric | 5mm x 20mm |
| Product Range | 216 |
| SVHC | No SVHC (25-Jun-2020) |
Other details
| Brand | LITTELFUSE |
| Part Number | 0216016.MXP |
| Quantity | Each |
| Product Change Notice (703.14KB) EN | View or download |
| Technical Data Sheet (1003.81KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 323.51 |
| 3-5 | ₹ 320.21 |
| 5-10 | ₹ 313.6 |
| 10+ | ₹ 307.0 |
Bulk discount will be automatically applied during checkout based on quantity.
