Description
Product Overview
The MCP6542-E/P is a push-pull output sub-microamp Comparator offered in dual configurations. The outputs are push-pull and are capable of driving heavy DC or capacitive loads. This comparator is optimized for low power, single-supply operation with greater than rail-to-rail input operation. The push-pull output of the MCP6542 family supports rail-to-rail output swing and interfaces with TTL/CMOS logic. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The output limits supply current surges and dynamic power consumption while switching. This product family operates with a single-supply voltage as low as 1.6V and draws less than 1µA/comparator of quiescent current.
- Low quiescent current - 600nA per comparator
- 4µs Propagation delay
- Low switching current
- 3.3mV Internal hysteresis
Applications
Computers & Computer Peripherals, Consumer Electronics, Metering, Clock & Timing, Security, Communications & Networking, Sensing & Instrumentation
Product details
| Comparator Type | Low Power |
| Response Time / Propogation Delay | 4µs |
| IC Case / Package | DIP |
| Comparator Output Type | CMOS, Push Pull, TTL |
| IC Mounting | Through Hole |
| Operating Temperature Max | 125°C |
| Qualification | AEC-Q100 |
| SVHC | No SVHC (04-Feb-2026) |
| Comparator Case Style | DIP |
| No. of Comparators | 2 Comparators |
| No. of Channels | 2Channels |
| Supply Voltage Range | 1.6V to 5.5V |
| No. of Pins | 8Pins |
| Power Supply Type | Single Supply |
| Operating Temperature Min | -40°C |
| Product Range | - |
| MSL | - |
| Automotive Qualification Standard | AEC-Q100 |
| IC Output Type | CMOS, Push Pull, TTL |
| Response Time | 4µs |
Other details
| Brand | MICROCHIP |
| Part Number | MCP6542-E/P |
| Quantity | Each |
| CAD CadSoft_EAGLE (2.63KB) EN | View or download |
| Technical Data Sheet (1.55MB) EN | View or download |
| Product Change Notice (18.61KB) EN | View or download |

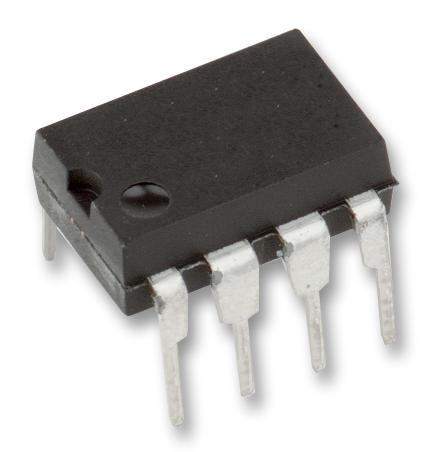

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
