Description
Product Overview

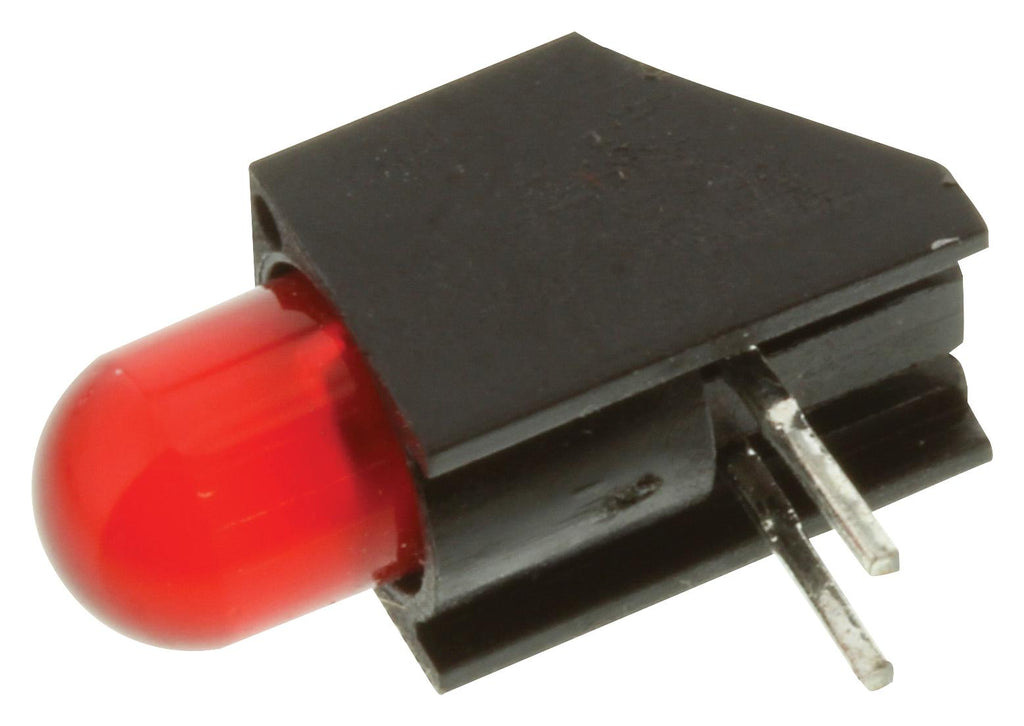

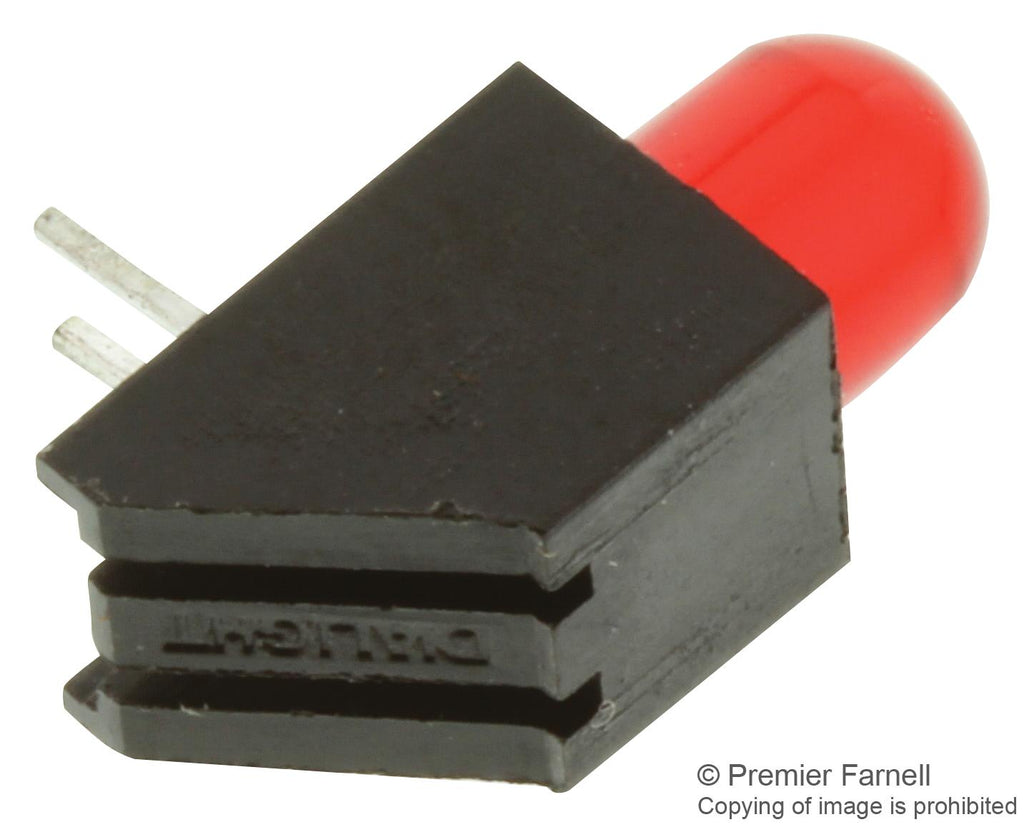

The 550-2407F is a 5mm LED CBI® Circuit Board Indicator offers right angle viewing and single colour lamp. The multiple CBIs form horizontal LED arrays on 6.35mm centrelines. LEDs are safe for direct viewing per IEC 825-1, EN-60825-1. It is compatible with 550-xx07 dual block and 550-xx07-004 quad block.
- Cathode right polarity
- Diffused lens
- High efficiency LED
- High contrast, UL94V-0 flame-rated black housing
- 32% Oxygen index
- PBT (0.206g) polymer
- Housing standoffs facilitate PCB cleaning
- Solderability per MIL-STD-202F, method 208F
Applications
Signalling
Product details
| LED Colour | Red |
| LED Mounting | Through Hole |
| Forward Current If | 10mA |
| Forward Voltage | 2.2V |
| Height | 6.1mm |
| Product Range | - |
| No. of LEDs | 1LEDs |
| Bulb Size | T-1 3/4 (5mm) |
| Luminous Intensity | 7mcd |
| Viewing Angle | 50° |
| Width | 6.1mm |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | DIALIGHT |
| Part Number | 550-2407F |
| Quantity | Each |
| Drawing (101.03KB) EN | View or download |
| Product Change Notice (30.49KB) EN | View or download |
| Technical Data Sheet (214.31KB) EN | View or download |
