Description
Product Overview

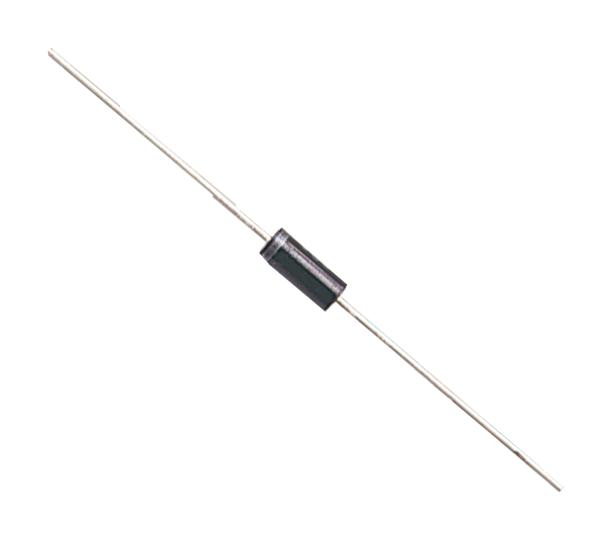

The SF38G is a glass-passivated Super-fast Rectifier with moulded plastic case and solderable axial-leads as per MIL-STD- 202 standard. It can be Mountable to any position.
- Colour band denotes cathode end
- Low forward voltage drop
- High current capability
- High reliability
- High surge current capability
- UL94V-0 Flammability rating
- 260°C/10sec High temperature soldering guaranteed
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Repetitive Peak Reverse Voltage | 600V |
| Diode Configuration | Single |
| Reverse Recovery Time | 35ns |
| Operating Temperature Max | 150°C |
| No. of Pins | 2 Pin |
| Qualification | - |
| Average Forward Current | 3A |
| Forward Voltage Max | 1.7V |
| Forward Surge Current | 125A |
| Diode Case Style | DO-201AD |
| Product Range | SFx |
| SVHC | No SVHC (17-Jan-2023) |
Other details
| Brand | TAIWAN SEMICONDUCTOR |
| Part Number | SF38G |
| Quantity | Each |
| Product Change Notice (324.38KB) EN | View or download |
| Technical Data Sheet (372.93KB) EN | View or download |
