Description
Product Overview

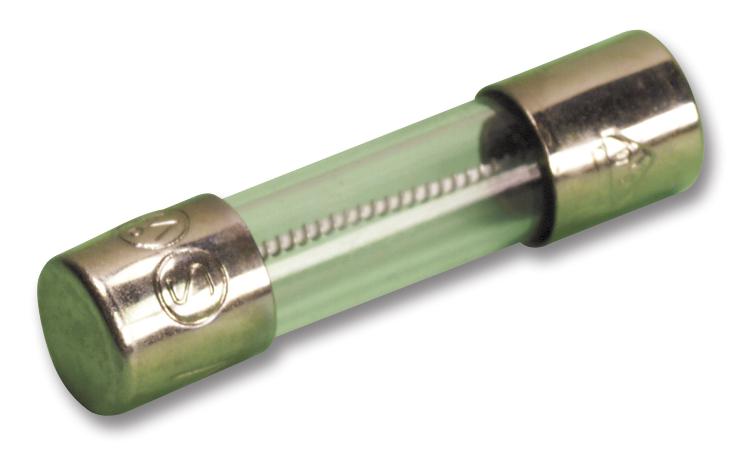

The 02183.15MXP from Littelfuse is a time lag glass body cartridge fuse. This device is designed to international ( IEC ) standards for use globally and meets IEC 60127-2 specification for time lag fuses. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- Fuse size is 5mm x 20mm
- Fuse current of 0.315A
- Interrupting rating of 35A at 250VAC
- Operating temperature range from -55°C to 125°C
- Nominal power dissipation of 1.6W
- Nominal voltage drop of 1000mV
- Rated voltage is 250VAC
- Nickel plated brass cap with tin plated copper leads
- VDE, CE, CCC, CSA and SEMKO approved
Applications
Safety
Product details
| Blow Characteristic | Time Delay |
| Voltage Rating VAC | 250V |
| Fuse Size Imperial | 0.2" x 0.79" |
| Breaking Capacity Current AC | 35A |
| Fuse Current | 3.15A |
| Fuse Size Metric | 5mm x 20mm |
| Product Range | 218 |
| SVHC | No SVHC (25-Jun-2020) |
Other details
| Brand | LITTELFUSE |
| Part Number | 02183.15MXP |
| Quantity | Each |
| Miscellaneous (248.90KB) EN | View or download |
| Product Change Notice (703.14KB) EN | View or download |
| Technical Data Sheet (1002.81KB) EN | View or download |
