Description
Product Overview

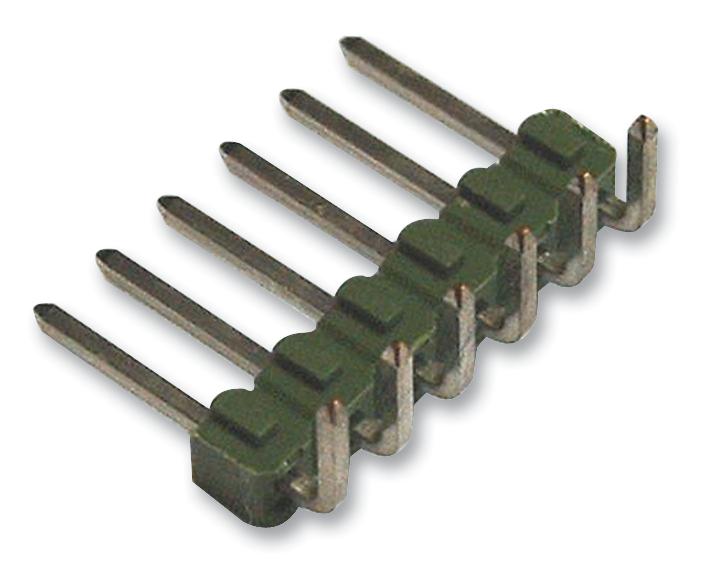

The TE Connectivity AMPMODU Mod II breakaway pin headers provide a comprehensive solution for popular connection standard. These headers can be conveniently broken to any size to ensure maximum versatility and are available in straight and right angle. Mod II breakaway headers are compatible with mating receptacles assured through a range of pin lengths and plating options. Pin headers are offered for surface mount, press fit action pin and standard through hole solder types.
- Comprehensive single and double row connector system
- Current rating 3A max per contact
- Pitch size is 2.54mm
- Operating temperature range -55°C to +105°C
- Contact resistance of 20mohm
- Insulation resistance of 1000Mohm
- Tin and gold plated contacts available
- Features 0.63mm posts with mating receptacles
Applications
Industrial
Product details
| Connector Systems | Board-to-Board |
| No. of Rows | 1Rows |
| Contact Termination Type | Through Hole Right Angle |
| Connector Shroud | Unshrouded |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 2.54mm |
| No. of Contacts | 6Contacts |
| Product Range | AMPMODU II |
| Contact Material | Brass |
| Connector Type | Pin Header |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 826947-6 |
| Quantity | Each |
| 3D Product Image (111.21KB) EN | View or download |
| Technical Data Sheet (243.39KB) EN | View or download |
| Drawing (37.60KB) EN | View or download |
