Description
Product Overview

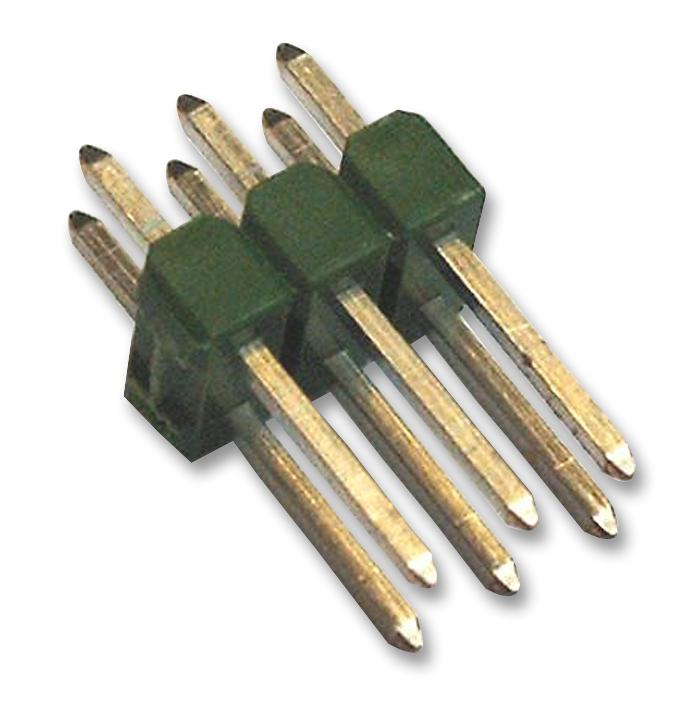

The 826942-3 is a 6-way 2-row Straight Header with PBT GV housing and tin-plated brass contacts, 2.54mm pitch spacing and through hole termination. This straight header is suitable for use with printed circuit board.
- Green housing
- UL94V-0 Flammability rating
- 5A Contact current rating
- 2µm Plating thickness of contact mating area
- Contact resistance of 20mohm
- Insulation resistance of 1000Mohm
- Tin and gold plated contacts available
- Features 0.63mm posts with mating receptacles
Applications
Industrial
Product details
| Connector Systems | Board-to-Board |
| No. of Rows | 2Rows |
| Contact Termination Type | Through Hole Straight |
| Connector Shroud | Unshrouded |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 2.54mm |
| No. of Contacts | 6Contacts |
| Product Range | AMPMODU II |
| Contact Material | Brass |
| Connector Type | Pin Header |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 826942-3 |
| Quantity | Each |
| Technical Data Sheet (243.39KB) EN | View or download |
| Drawing (29.18KB) EN | View or download |
