Description
Product Overview

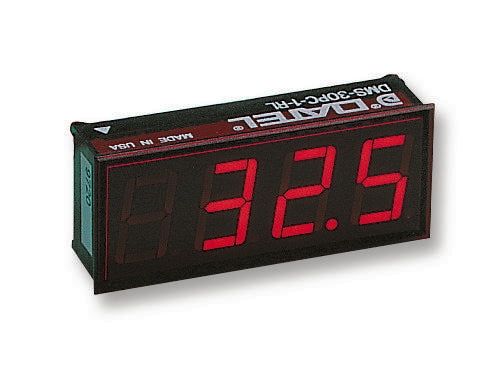

The DMS-30PC-4/20S-24RL-C is a 3-1/2-digit low power red LED Panel Meter with isolated supply. It offers an outstanding combination of electrical performance, display readability, ease-of-use and long-term reliability. This meter is constructed using Murata Power Solutions super-reliable, field-proven epoxy-encapsulated DMS-30PC digital voltmeter. The decimal point and range-change settings are made on a gold-plated, vibration-resistant, DIP switch and there is no cumbersome solder gap or jumpers to contend with connections to the current loop and the power source are both made on a rugged, 4-position, screw-type terminal block. It is user-friendly design accommodates virtually hundreds of different input-current/output-reading combinations. This eliminates the majority of requirements for more costly, long-lead-time, factory "specials" especially in applications requiring several different-range meter.
- Entire assembly utilizes 100% soldered connections
- Secure screw fasteners and an EPDM rubber gasket
- Requiring moisture and dust resistance
- DIP-switch selectable range and decimal points
- Hundreds of different input/readout combinations
- 100Ω Impedance
Applications
Industrial, Metering, Test & Measurement
Product details
| No. of Digits / Alpha | 3-1/2 |
| Meter Range | 4mA to 20mA |
| Panel Cutout Height | 22.3mm |
| Supply Voltage Min | 7.5VDC |
| Operating Temperature Min | 0°C |
| Product Range | - |
| Meter Function | Current Loop Indicator |
| Digit Height | 14.2mm |
| Panel Cutout Width | 53.8mm |
| Supply Voltage Max | 32VDC |
| Operating Temperature Max | 60°C |
| SVHC | Lead (17-Jan-2022) |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | DMS-30PC-4/20S-24RL-C |
| Quantity | Each |
| EOL Notices (638.61KB) EN | View or download |
| Technical Data Sheet (170.18KB) EN | View or download |
| Product Change Notice (150.28KB) EN | View or download |
