Description
Product Overview

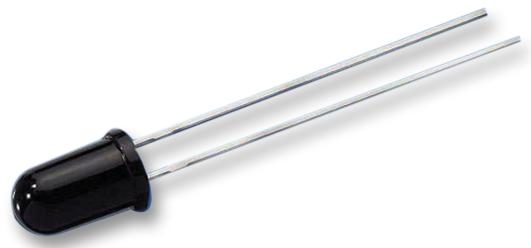

SFH203-FA is silicon PIN photodiode. Suitable for appliances & tools, access control and security.
- Package: black epoxy
- ESD: 2kV according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- Short switching time (typ 5ns)
- 5mm LED plastic package
- ≥ 34µA photocurrent at Ee = 1mW/cm², λ = 870nm, VR = 5V
- 50µA typical photocurrent at Ee = 1mW/cm², λ = 870nm, VR = 5V
- Operating temperature range from -40°C to 100°C
- 900nm typical wavelength of max sensitivity
- 20° typical half angle
- 1.3V typical forward voltage (IF = 100mA, E = 0)
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| No. of Pins | 2Pins |
| Wavelength of Peak Sensitivity | 900nm |
| Dark Current | 1000pA |
| Operating Temperature Max | 100°C |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (21-Jan-2025) |
| Diode Case Style | T-1 3/4 (5mm) |
| Angle of Half Sensitivity ± | 20° |
| Operating Temperature Min | -40°C |
| Product Range | - |
| MSL | - |
Other details
| Brand | AMS OSRAM GROUP |
| Part Number | SFH 203 FA |
| Quantity | Each |
| Product Change Notice (255.77KB) EN | View or download |
| Technical Data Sheet (1.11MB) EN | View or download |
