Description
Product Overview
The MC78M15CDTG is a Positive Voltage Regulator with 15V output voltage. It is identical to the popular MC7800 Series devices, except that they are specified for only half the output current. Like the MC7800 devices, the MC78M00 device 3-terminal regulator is intended for local, on-card voltage regulation. It features internal current limiting and thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine to makes this device remarkably rugged under most operating conditions. Maximum output current with adequate heat-sinking is 500mA.
- No external components required
- ±2% High accuracy
Applications
Automotive, Power Management, Industrial
Product details
| Output Type | Fixed |
| Output Voltage - Nom | 15V |
| Output Voltage Min | - |
| Input Voltage Min | 23V |
| Product Range | 7815 Voltage Regulators |
| Max Output Current | 500mA |
| No. of Pins | 3Pins |
| Operating Temperature Min | 0°C |
| Qualification | - |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Outputs | 1Outputs |
| Output Voltage Nom | 15V |
| Output Voltage Max | - |
| Input Voltage Max | 35V |
| Output Current Max | 500mA |
| IC Case / Package | TO-252 (DPAK) |
| IC Mounting | Surface Mount |
| Operating Temperature Max | 125°C |
| MSL | - |
Other details
| Brand | ONSEMI |
| Part Number | MC78M15CDTG |
| Quantity | Each |
| Product Change Notice (530.30KB) EN | View or download |
| Manufacturer Catalogue (137.97KB) EN | View or download |
| Technical Data Sheet (224.27KB) EN | View or download |

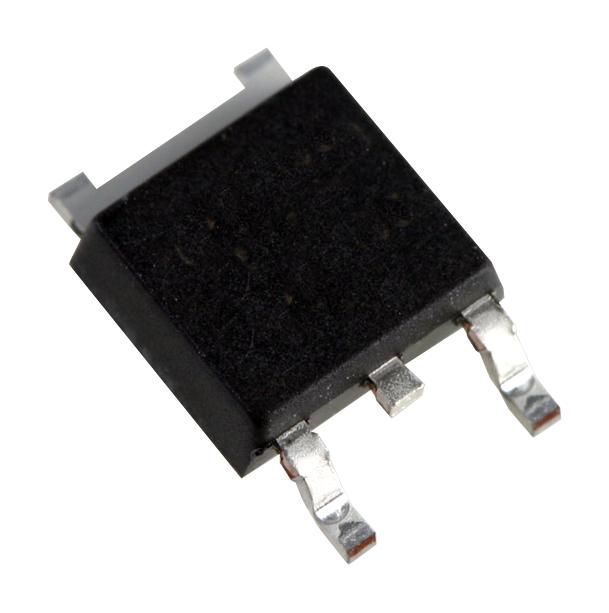

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
