Description
Product Overview

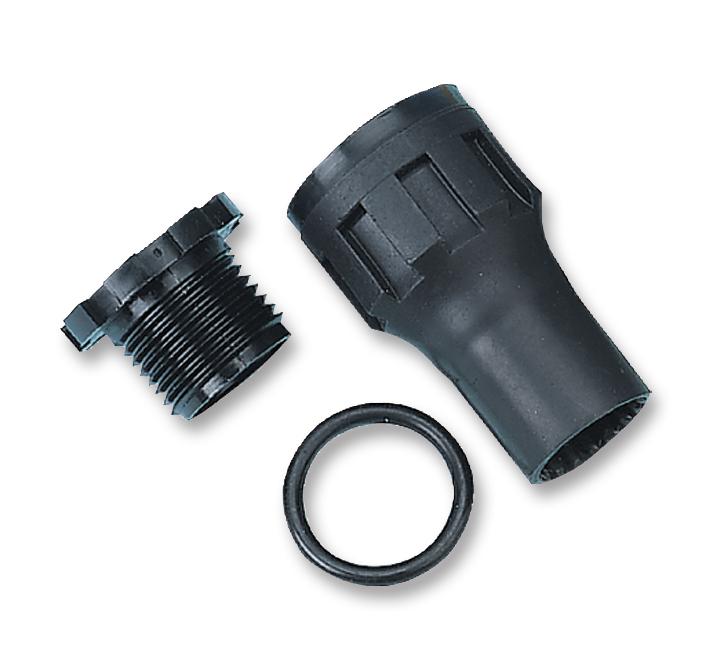

The CES-3 is a heat-shrinkable Cable Entry Seal made of flame retardant polyolefin. It provides a watertight, fume-tight seal where cables enter connection boxes, bulkheads or other enclosures. This standard seal features thin-wall enclosures consists of a three-part assembly - a rigid plastic nylon nut, an O-ring and a heat-shrinkable molded area. It is available with the molded area configured with one opening for a single wire or cable entry or with two, three or four legs of equal size to seal multiple wires or cables at the entry to enclosures and/or bulkheads. To meet sealing requirements, It has factory-applied adhesive that provides the seal to wire and cable jackets.
- Seals multicable openings
- Seals per U.S. coast guard HQ 3774 in wet, dry and corrosive locations
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Boot Configuration | Straight |
| I.D. Supplied - Metric | 28.5mm |
| Total Length - Imperial | 3.75" |
| I.D. Recovered Max - Imperial | 0.5" |
| Shrink Tubing / Boot Material | PO (Polyolefin) |
| Product Range | - |
| I.D. Supplied - Imperial | 1.12" |
| Shrink Tubing / Boot Colour | Black |
| Total Length - Metric | 95.25mm |
| I.D. Recovered Max - Metric | 12.7mm |
| Shrink Ratio | 3:1 |
| SVHC | 1,1'-(ethane-1,2-diyl)bis[pentabromobenzene] (DBDPE) (04-Feb-2026) |
Other details
| Brand | TE CONNECTIVITY - RAYCHEM |
| Part Number | CES-3 |
| Quantity | Each |
| Technical Data Sheet (129.98KB) EN | View or download |
| Product Change Notice (80.76KB) EN | View or download |
| Drawing (100.16KB) EN | View or download |
| 3D Product Image (563.23KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
