Product Overview

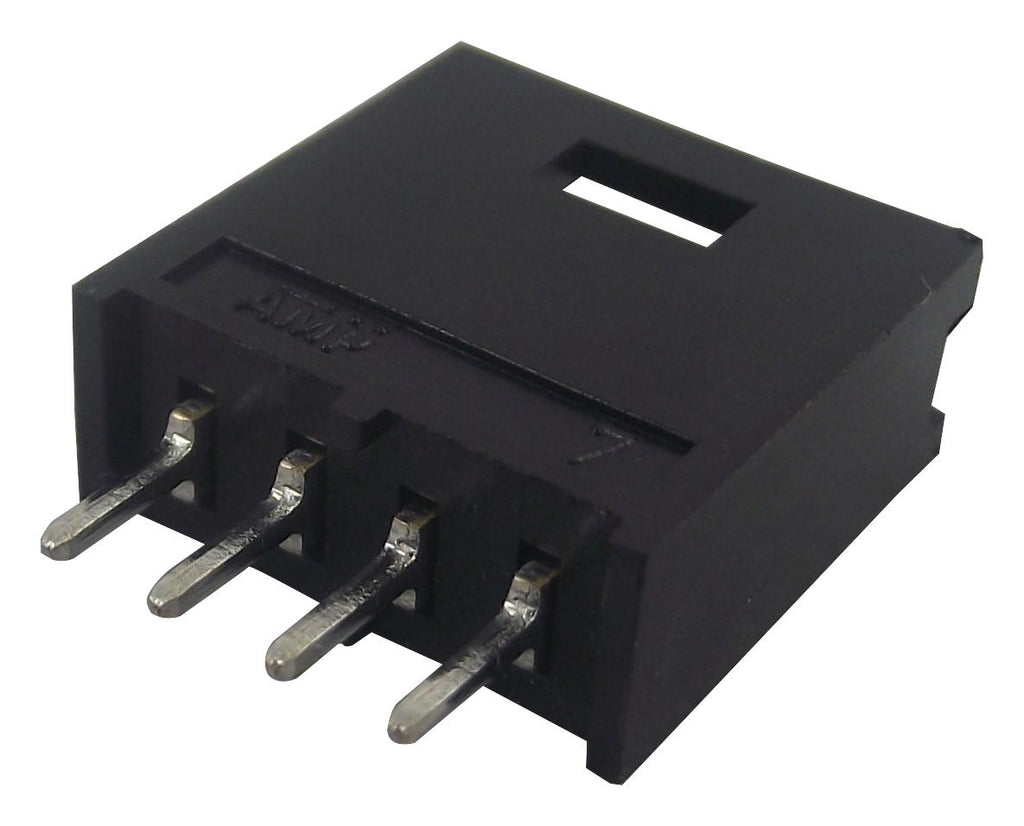

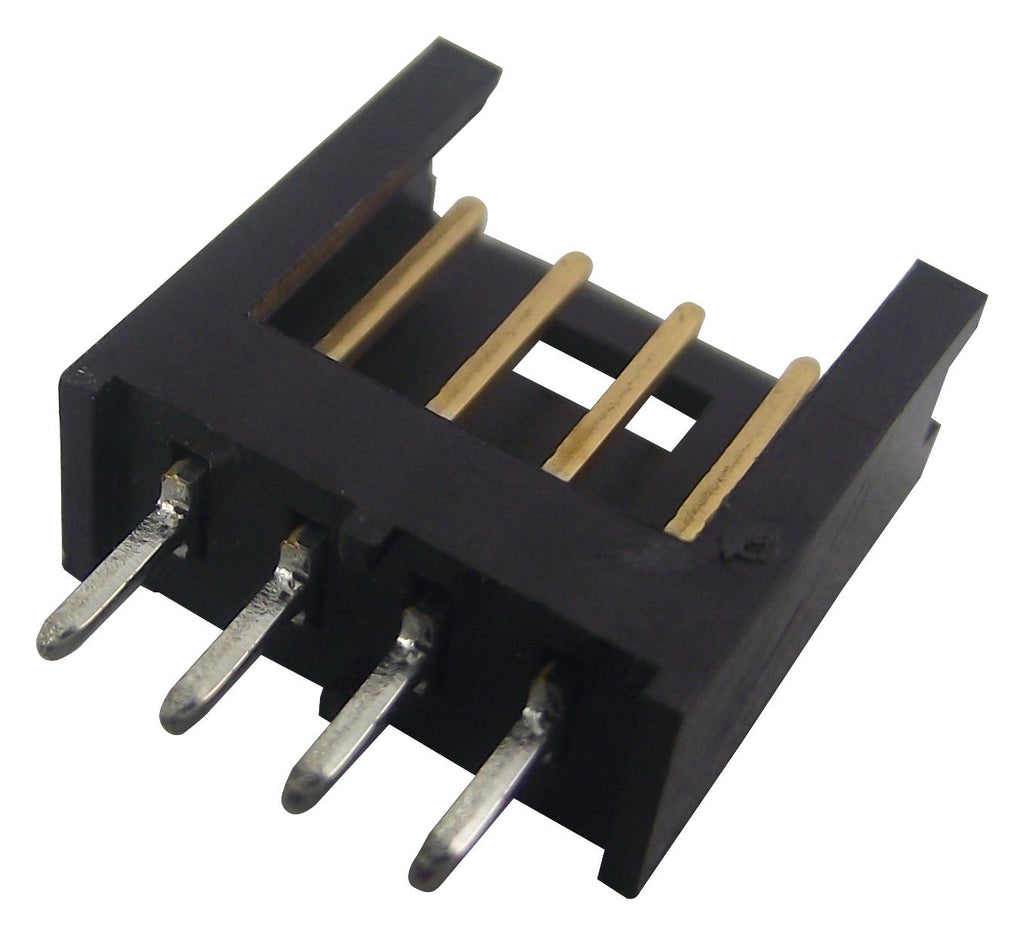

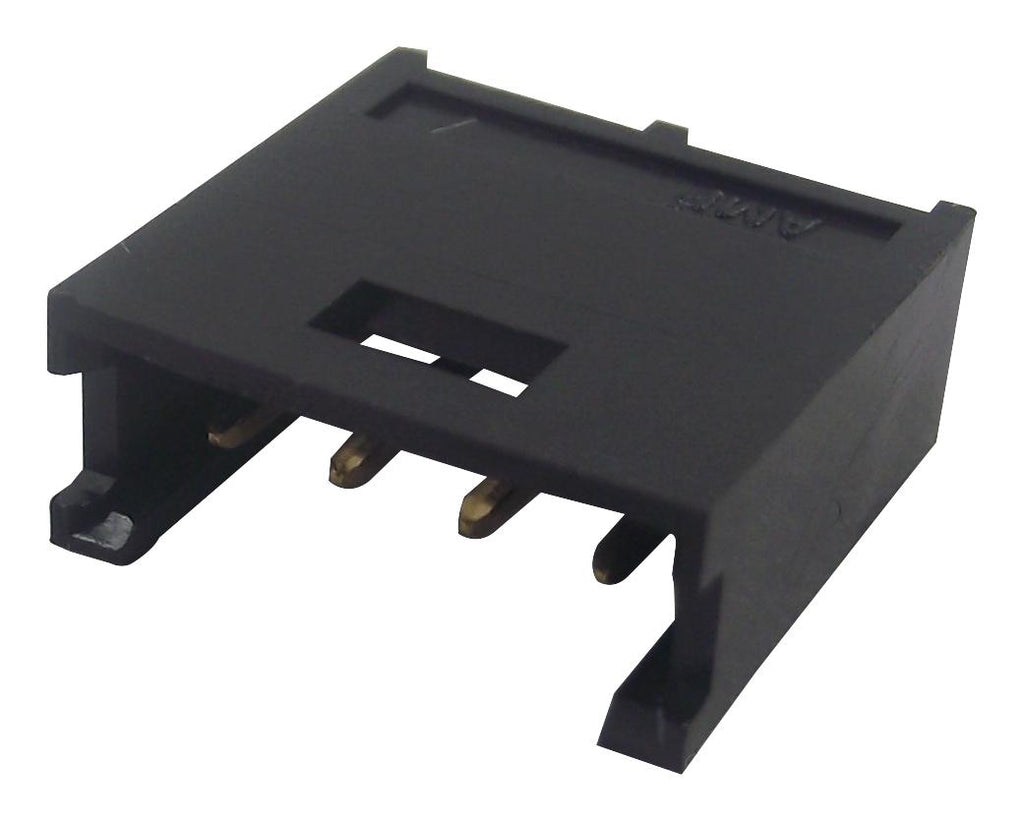

280371-2 is a AMPMODU II partially shrouded, rectangular PCB mount header.
- Single row, 4 position, 2.54mm [.1in] pitch vertical pin connector
- 40VAC, 40VDC operating voltage and 3A max contact current rating
- 750V max dielectric withstanding voltage
- Black flame retardant thermoplastic housing
- Through hole-solder termination method to PCB
- Tin PCB contact termination area plating material
- Nickel contact underplating material
- Brass contact material and gold contact mating area plating material
- With mating retention and mating alignment
- Polarization mating alignment type
Product details
| Connector Systems |
Wire-to-Board |
| No. of Rows |
1Rows |
| Contact Termination Type |
Through Hole Straight |
| Connector Shroud |
Shrouded |
| Contact Plating |
Gold Plated Contacts |
| SVHC |
No SVHC (04-Feb-2026) |
| Pitch Spacing |
2.54mm |
| No. of Contacts |
4Contacts |
| Product Range |
AMPMODU MOD II |
| Contact Material |
Phosphor Bronze |
| Connector Type |
PCB Header |
