Description
Product Overview

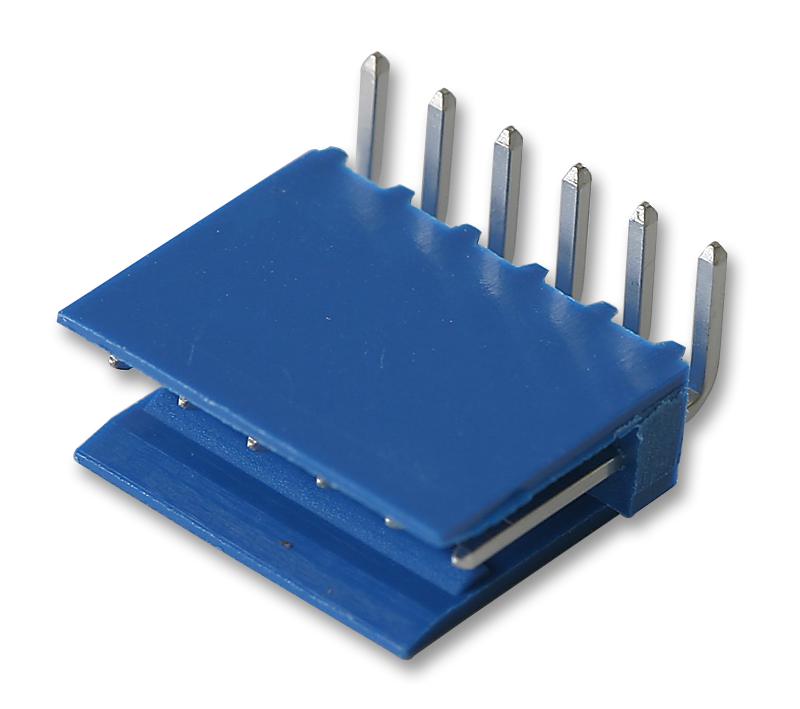

The 281698-6 is a 6-position 1-row right angle shrouded Wire-to-Board Header with tin-plated phosphor bronze pin contacts and blue high temperature thermoplastic 2-sided housing. This plug style connector supports crimp, Insulation Displacement Crimp (IDC) termination method to wire/cable and polarization mating alignment type. It is applicable to printed circuit board.
- With contact protection
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Connector Systems | Wire-to-Board |
| No. of Rows | 1Rows |
| Contact Termination Type | Through Hole Right Angle |
| Connector Shroud | Shrouded |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 2.54mm |
| No. of Contacts | 6Contacts |
| Product Range | AMPMODU HE14 |
| Contact Material | Phosphor Bronze |
| Connector Type | PCB Header |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 281698-6 |
| Quantity | Each |
| Technical Data Sheet (53.93KB) EN | View or download |
| 3D Product Image (247.32KB) EN | View or download |
| Drawing (66.94KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 97999999.02 |
| 3-5 | ₹ 96999999.03 |
| 5-10 | ₹ 94999999.05 |
| 10+ | ₹ 92999999.07 |
Bulk discount will be automatically applied during checkout based on quantity.
