Description
Product Overview

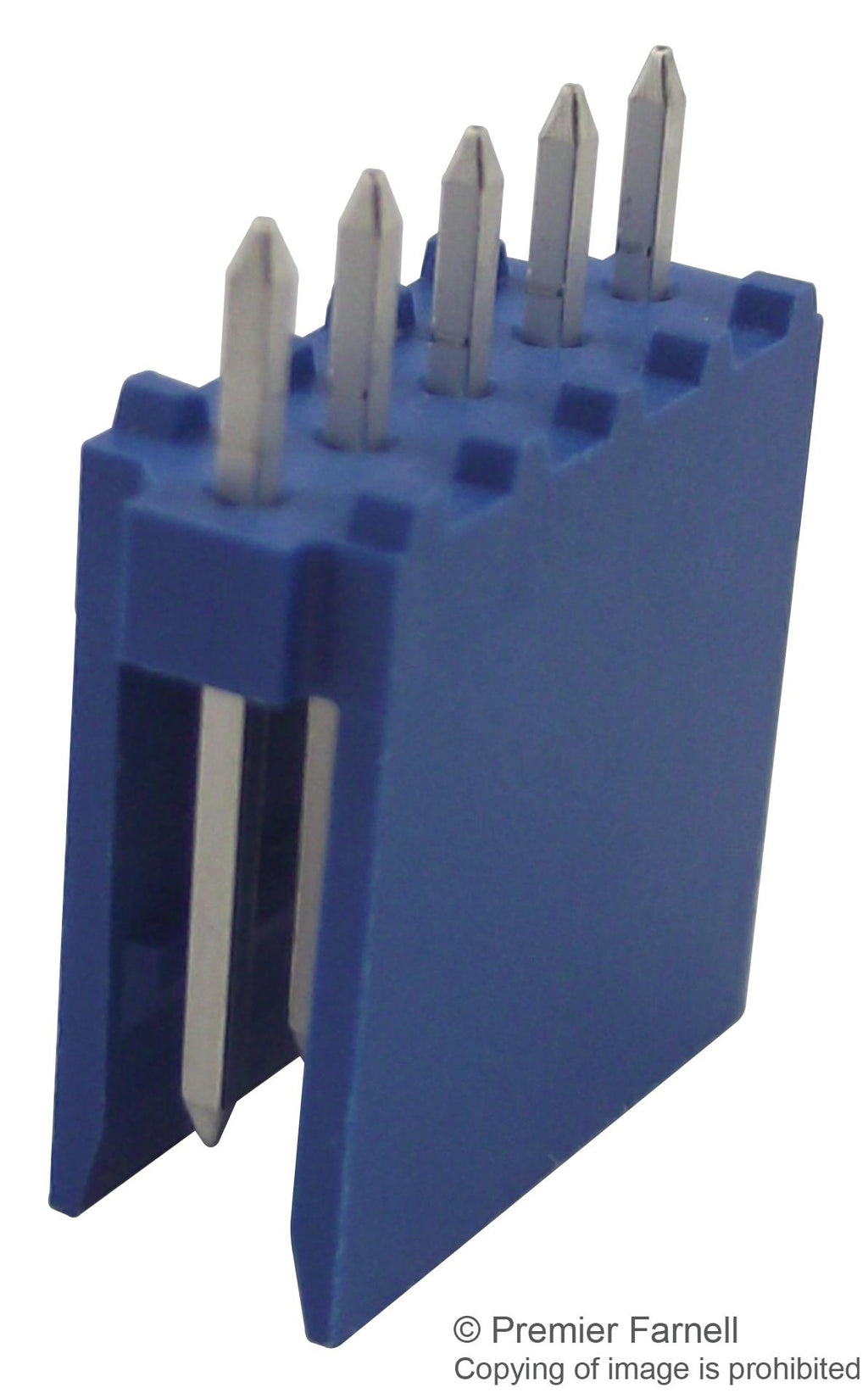

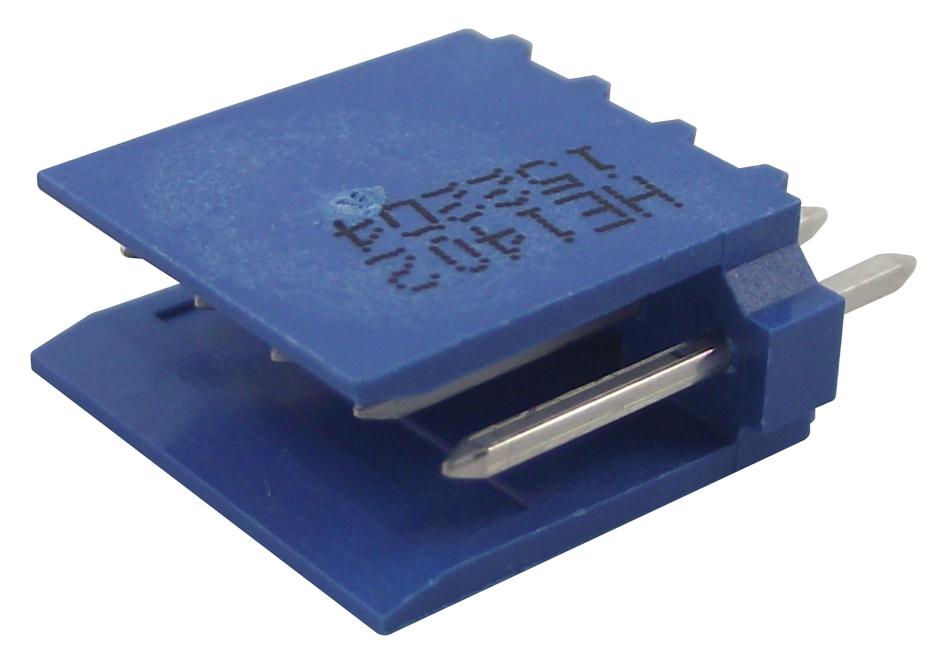

The 281695-5 is a 5-way 1-row Vertical Header with thermoplastic housing and tin-plated phosphor bronze contacts, 2.54mm pitch spacing and through hole termination. This vertical header is suitable for use with printed circuit board.
- Blue housing
- UL94V-0 Flammability rating
- 3A Contact current rating
Applications
Industrial
Product details
| Connector Systems | Wire-to-Board |
| No. of Rows | 1Rows |
| Contact Termination Type | Through Hole Straight |
| Connector Shroud | Shrouded |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 2.54mm |
| No. of Contacts | 5Contacts |
| Product Range | AMPMODU HE14 |
| Contact Material | Phosphor Bronze |
| Connector Type | PCB Header |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 281695-5 |
| Quantity | Each |
| Technical Data Sheet (58.44KB) EN | View or download |
| Drawing (112.58KB) EN | View or download |
| 3D Product Image (233.21KB) EN | View or download |
