Description
Product Overview

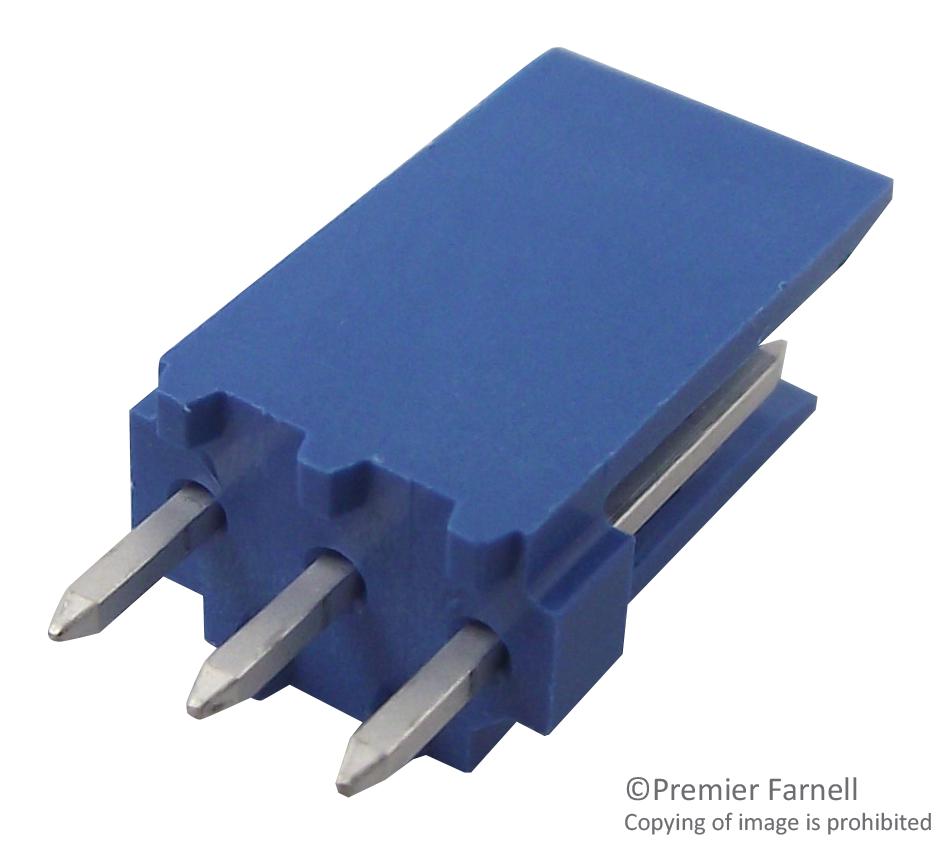

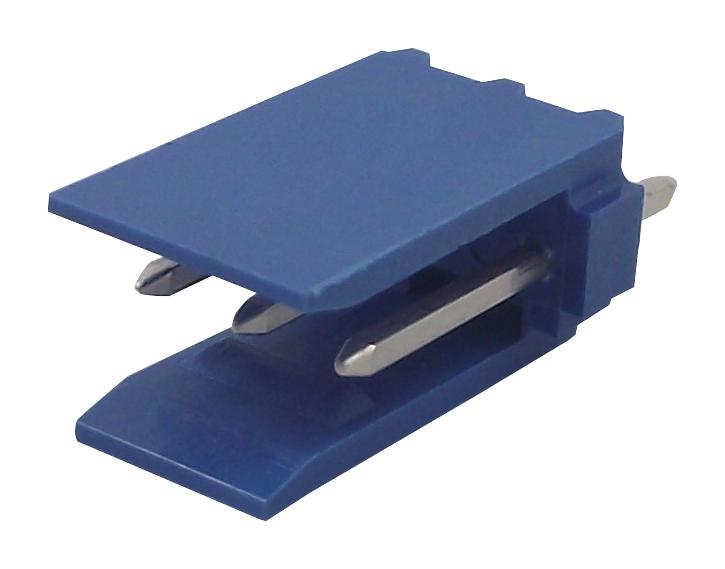

The 281695-3 from TE Connectivity is a 2.54mm pitch, single row 3 position HE14 straight shrouded header.
- Current rating is 3A
- Operating temperature range from -55°C to 105°C
- Phosphor bronze with tin plated contacts
- Blue colour high temperature thermoplastic housing
- UL, CSA approved
Applications
Industrial
Product details
| Connector Systems | Wire-to-Board |
| No. of Rows | 1Rows |
| Contact Termination Type | Through Hole Straight |
| Connector Shroud | Shrouded |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 2.54mm |
| No. of Contacts | 3Contacts |
| Product Range | AMPMODU HE14 |
| Contact Material | Phosphor Bronze |
| Connector Type | PCB Header |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 281695-3 |
| Quantity | Each |
| 3D Product Image (222.53KB) EN | View or download |
| Drawing (112.58KB) EN | View or download |
| Technical Data Sheet (53.93KB) EN | View or download |
