Description
Product Overview

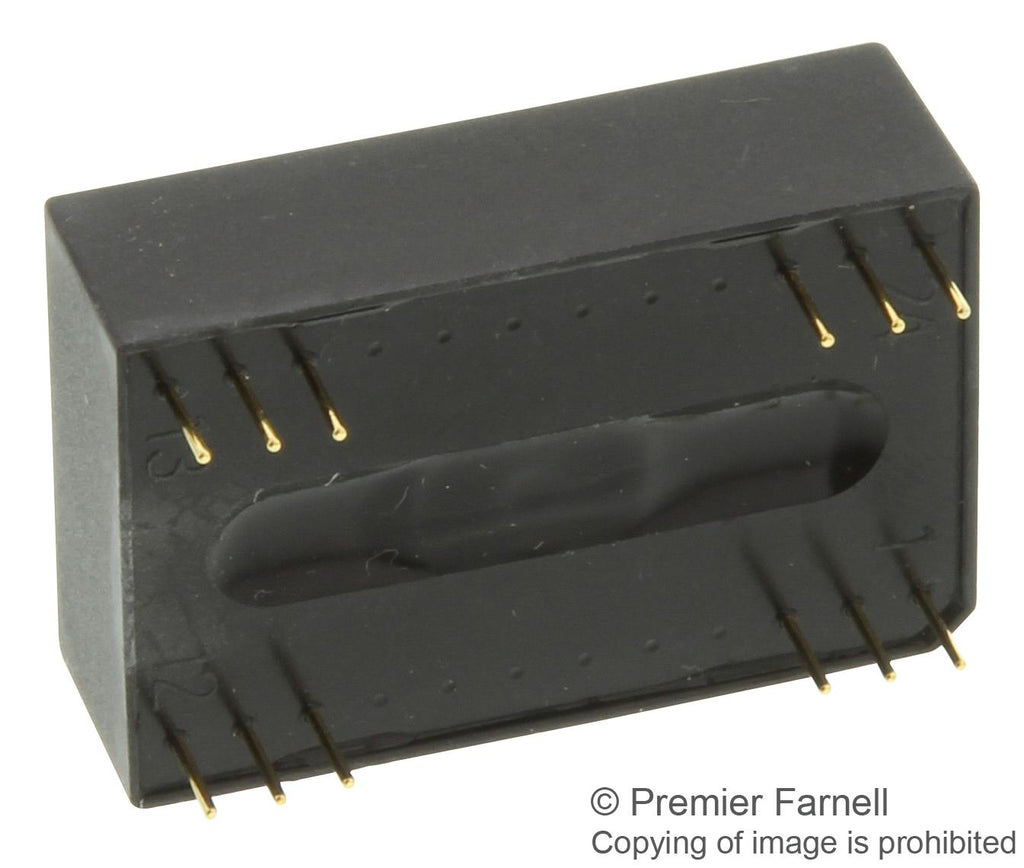

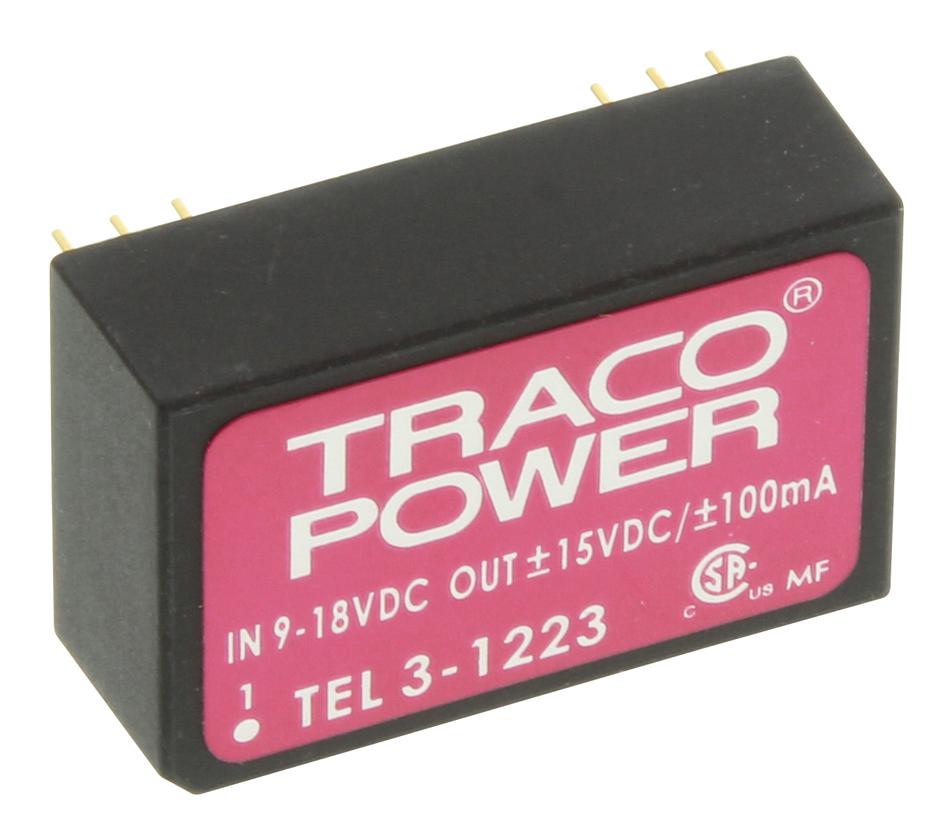

The TEL 3-1223 is a 2-output board-mount isolated DC to DC Converter with wide 2:1 and 3:1 input voltage ranges. The TEL 3 series 3W converter features low output noise and high efficiency at full load.
- Indefinite short-circuit protection
- High efficiency up to 81%
- 1500VDC I/O Isolation
- <lt/>60mV pk-pk Typical output ripple and noise
- -40 to +85°C Operating temperature range
Applications
Industrial, Consumer Electronics
Notes
NRND - Not Recommended for New Designs
Product details
| Power Supply Applications | ITE |
| Input Ratio | 2:1 |
| No. of Outputs | 2 Output |
| Output Current - Output 1 | 100mA |
| Output Current - Output 2 | 100mA |
| Isolation Voltage | 1.5kV |
| DC / DC Converter Output Type | Fixed |
| Height | 10.2mm |
| Input Voltage DC Min | 9V |
| Product Range | TEL 3 Series |
| DC / DC Converter Type | DIP |
| Output Power Max | 3W |
| Output Voltage - Output 1 | 15V |
| Output Voltage - Output 2 | -15V |
| Output Regulation | Regulated |
| Input Voltage DC Nom | 12V |
| Width | 20mm |
| Depth | 32mm |
| Input Voltage DC Max | 18V |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | TRACO POWER |
| Part Number | TEL 3-1223 |
| Quantity | Each |
| CAD Multiple Formats (40.46KB) EN | View or download |
| Miscellaneous (95.97KB) EN | View or download |
| Technical Data Sheet (245.79KB) EN | View or download |
