Description
Product Overview

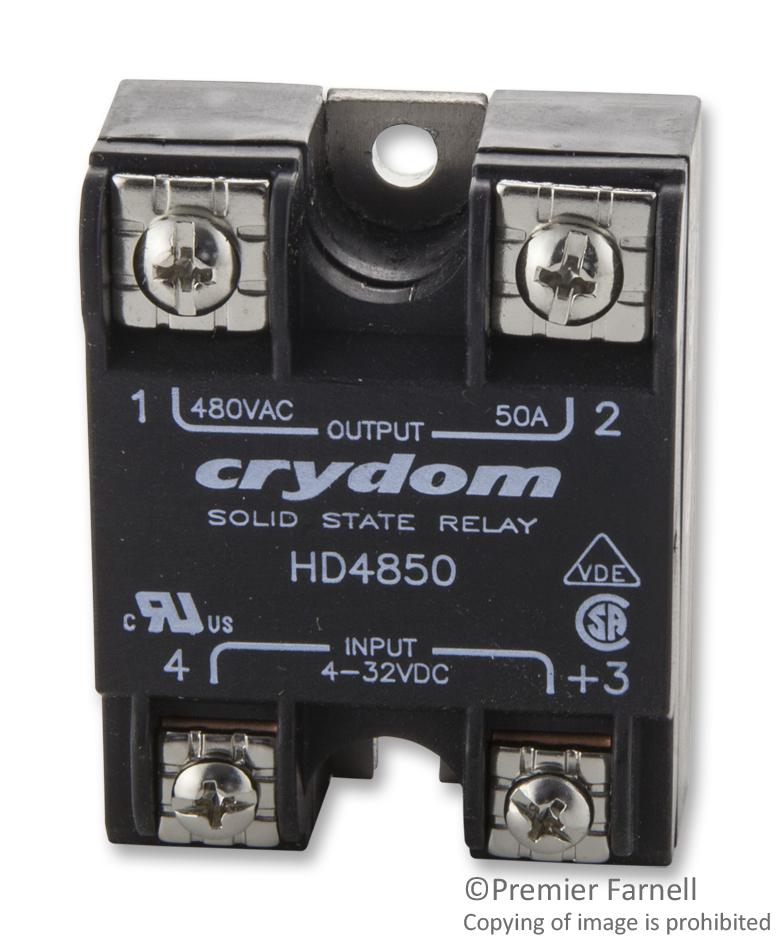

The HD4850 is a Solid State Relay with aluminium base plate, UL94V-0 housing, SPST-NO contact, zero crossing switching mode and screw terminals. This HD48-series panel mount relay features improved SEMS screw and washer, redesigned housing with anti-rotation barrier. Direct bond copper substrate and direct power lead frame. EMC compliant to level-3.
- Epoxy-free design
- AC or DC Control
- SCR output for heavy industrial loads
- 1.15Vrms Maximum on-state voltage drop
- Current regulated nominal input impedance
- 4000Vrms Dielectric strength
- 1/2 cycle ms Turn-on/off maximum time
- -40 to 80°C Ambient operating temperature range
Applications
Industrial
Warnings
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
Product details
| Contact Configuration | SPST-NO |
| Operating Voltage Max | 530Vrms |
| Relay Terminals | Screw |
| Operating Voltage Min | 48Vrms |
| Control Voltage Max | 32VDC |
| Load Current | 50A |
| Relay Mounting | Panel Mount |
| Switching Mode | Zero Crossing |
| Control Voltage Min | 4VDC |
| Product Range | HD48 Series |
Other details
| Brand | SENSATA/CRYDOM |
| Part Number | HD4850 |
| Quantity | Each |
| Product Change Notice (295.37KB) EN | View or download |
| Technical Data Sheet (2.87MB) EN | View or download |
| Drawing (66.91KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11540.09 |
| 3-5 | ₹ 11422.33 |
| 5-10 | ₹ 11186.82 |
| 10+ | ₹ 10951.31 |
Bulk discount will be automatically applied during checkout based on quantity.
