Product Overview

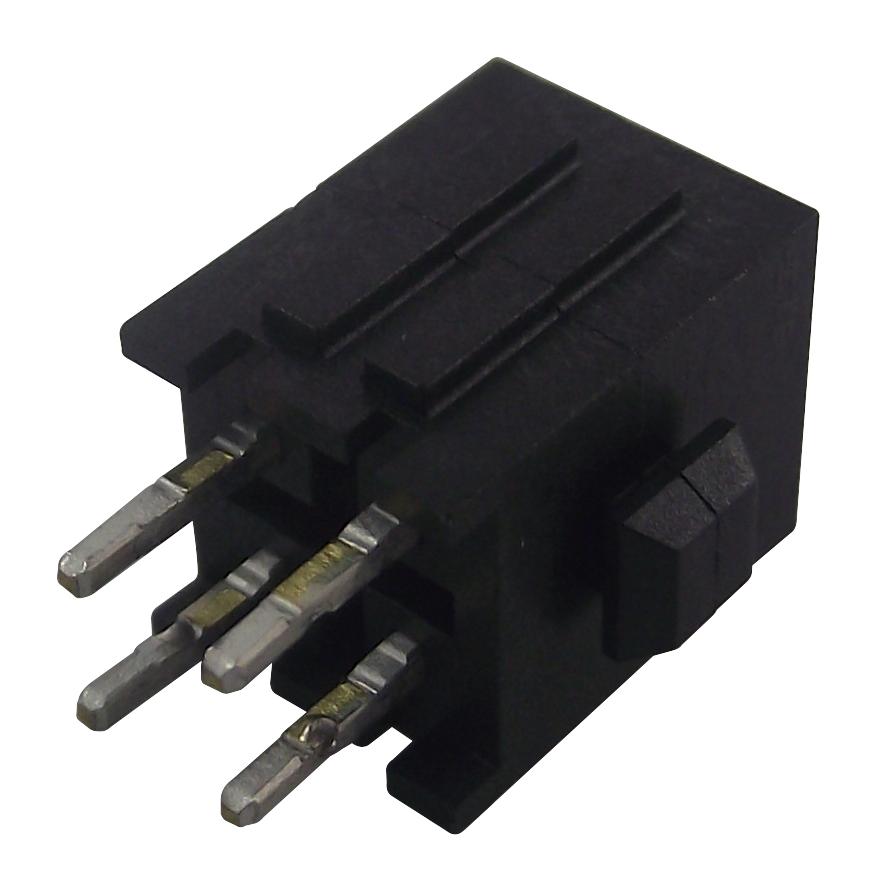

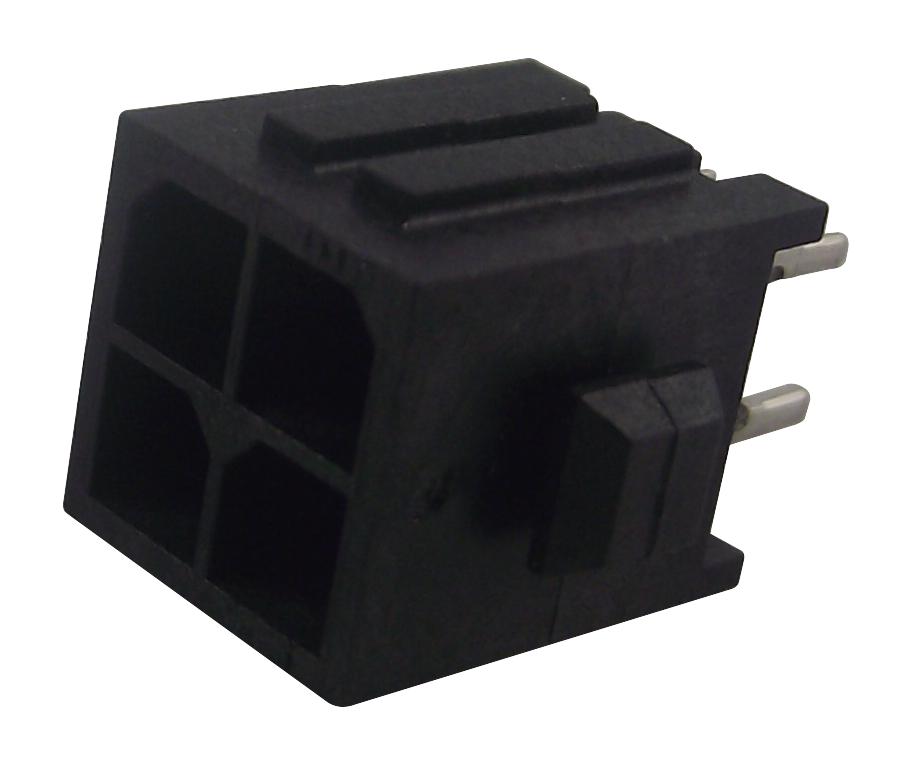

- Fully shrouded vertical header assembly for Micro MATE-N-LOK 3mm connector system
- Dual row, through-hole, with retention feature on soldertail
- Number of positions are 4, number of rows are 2, termination post and tail length is 3.18mm
- Operating voltage is 250VAC, 250VDC, contact current rating (max) is 5A
- Tin contact mating area plating/PCB contact termination area plating
- Contact mating area plating material thickness is 2.54 – 7.62µm
- Approved standards are UL E28476, VDE 40005280
- Locking tab mating retention, with PCB mount retention, mating alignment and mating retention
- Board mounting, black nylon housing
- Length is 6.86mm, width is 8.67mm, -40 to 105°C temperature rating
Product details
| Connector Systems |
Wire-to-Board |
| No. of Rows |
2Rows |
| Contact Termination Type |
Through Hole Straight |
| Connector Shroud |
Shrouded |
| Contact Plating |
Tin Plated Contacts |
| SVHC |
No SVHC (04-Feb-2026) |
| Pitch Spacing |
3mm |
| No. of Contacts |
4Contacts |
| Product Range |
Micro MATE-N-LOK Series |
| Contact Material |
Brass |
| Connector Type |
PCB Header |
Other details
