Description
Product Overview

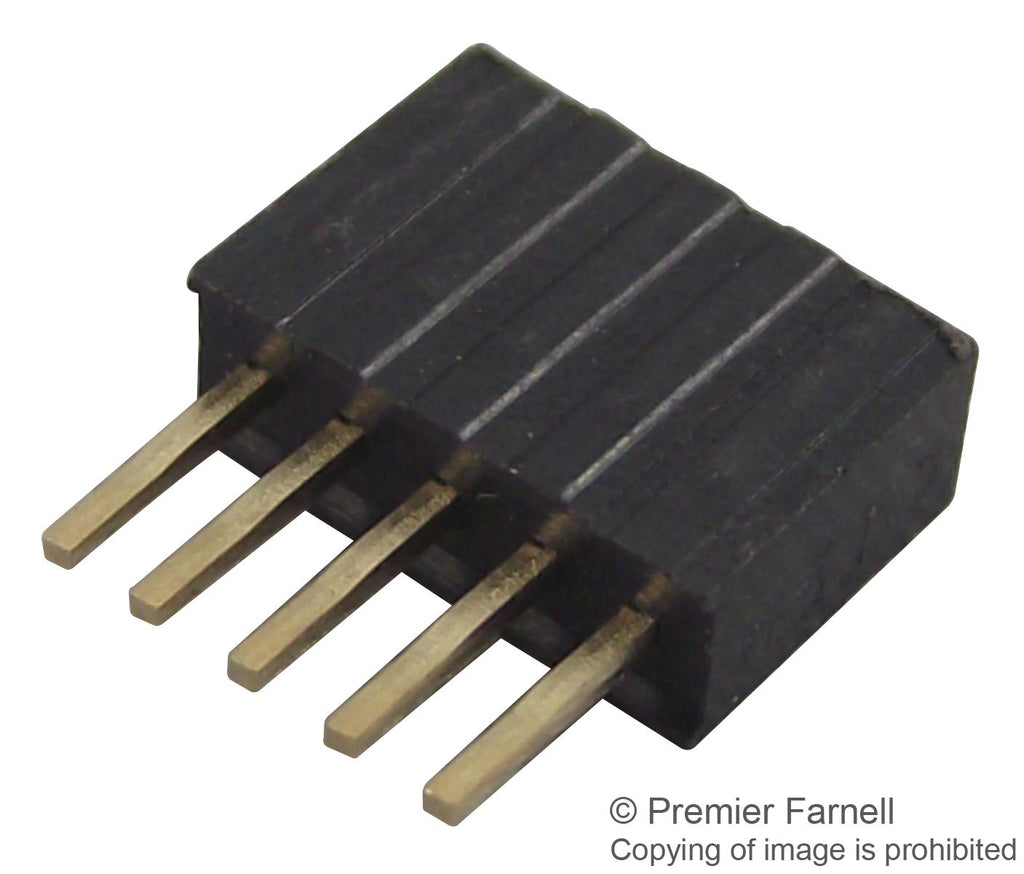

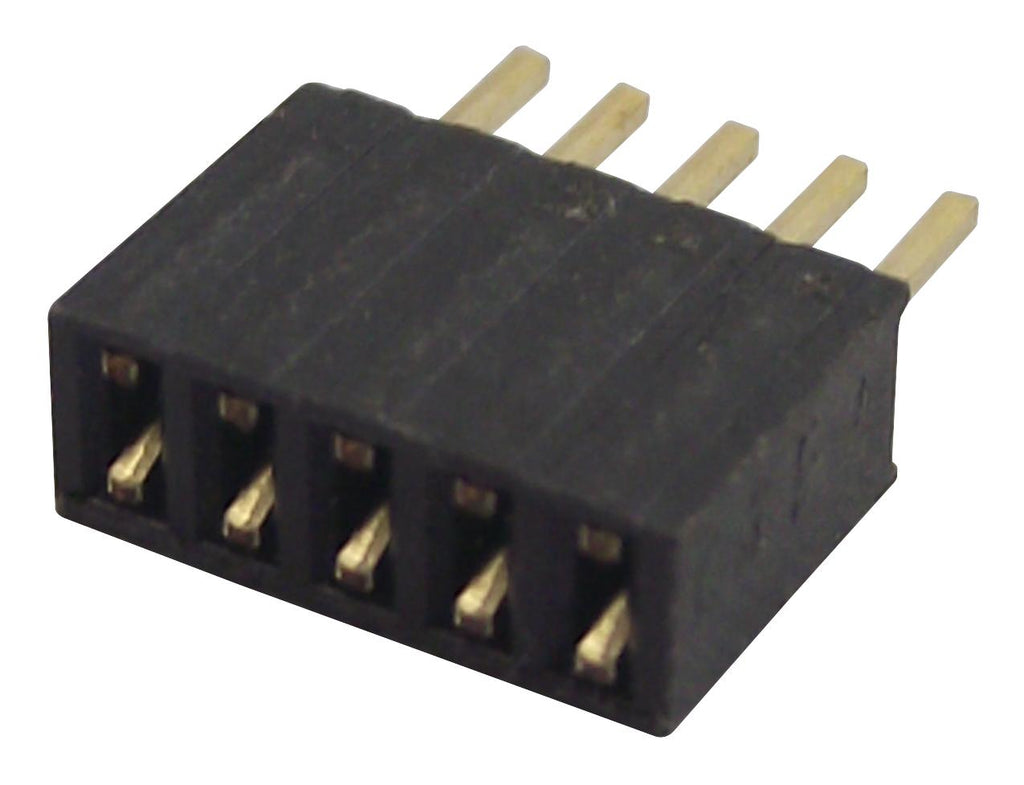

The M52-5000545 is a 5-way SIL Vertical Socket with 4.6mm height, gold-plated phosphor bronze contact, black UL94V-0 polyamide (nylon) 6T housing and 1.27 x 2.54mm contact pitch. Suitable for vertical board-to-board applications. Suitable for use with male connectors.
- 1A Contact rating
- 30mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance
- 300-cycle Durability
Applications
Industrial
Product details
| Connector Systems | Board-to-Board |
| No. of Rows | 1Rows |
| Connector Mounting | Through Hole Mount |
| Contact Material | Copper |
| Contact Termination Type | Through Hole Straight |
| Pitch Spacing | 1.27mm |
| No. of Contacts | 5Contacts |
| Product Range | Archer M52 Series |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | HARWIN |
| Part Number | M52-5000545 |
| Quantity | Each |
| Drawing (69.18KB) EN | View or download |
| Technical Data Sheet (246.21KB) EN | View or download |
| 3D Product Image (162.81KB) EN | View or download |
| Manufacturer Catalogue (67.21KB) EN | View or download |
