Description
Product Overview

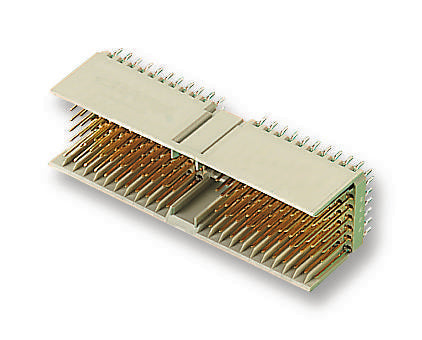

The Z-PACK series 2mm HM (hardmetric) Connector System designed to meet the current and future needs of instrumentation applications giving excellent electrical and mechanical characteristics. It is a high performance, high density system with flexible configuration which offers upgradeability. The connector system is fully supported by Tyco Electronics spice models to guarantee choosing the right product to match the application.
- High density system with small real estate on backplane and daughtercard
- Extensive range of signal, power, coaxial and fibre board-to-board and cable-to-board connections
- Modular units give flexible configuration
- Special versions for VME64 extensions and CompactPCI
- Signal contact rating 1.5a fully energized
- Universal power module rated at 7.8A/line, 23.4A fully energized
- All lines impedance controlled to 50 (single ended) and 100Ω (differential) nominal
- Safe design, complies with IEC950 in mated condition
- Universal power module is safe in unmated condition
- Several performance levels for board and cable connectors with unshielded and shielded versions
- Mismatching keys block mating before any contact touch
- Small press fit board hole allows maximum track width and minimum signal corruption
- 1.4 to 5.6mm (0.055 to 0.220 inch) Backplane thickness range
Applications
Communications & Networking, Computers & Computer Peripherals, Sensing & Instrumentation
Product details
| Product Range | Z-PACK |
| Pitch Spacing | 2mm |
| Contact Termination Type | Press Fit |
| Row Pitch | 2mm |
| Contact Plating | Gold Plated Contacts |
| No. of Contacts | 154Contacts |
| Gender | Header |
| No. of Rows | 7Rows |
| Contact Material | Phosphor Bronze |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 5188835-1 |
| Quantity | Each |
| 3D Product Image (95.31KB) EN | View or download |
| Technical Data Sheet (100.66KB) EN | View or download |
| Drawing (203.50KB) EN | View or download |
| Enhanced Product Overview (296.62KB) EN | View or download |
| Product Change Notice (137.68KB) EN | View or download |
| Application Note (1.80MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
