Description
Product Overview

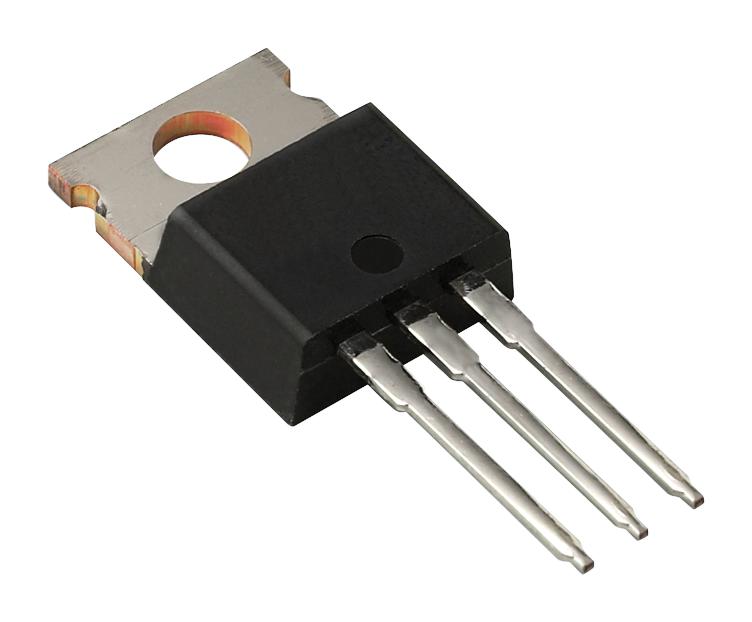

The L7815ACV is a 1.5A 3-terminal positive Voltage Regulator IC can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. This embeds internal current limiting, thermal shut-down and safe area protection and making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as fixed voltage regulators, this device can be used with external components to obtain adjustable voltage and currents.
- Thermal overload protection
- Short-circuit protection
- Output transition SOA protection
- 2% Output voltage tolerance
- Guaranteed in extended temperature range
Applications
Power Management
Product details
| Output Type | Fixed |
| Output Voltage Nom | 15V |
| Output Voltage Min | - |
| Input Voltage Min | 23V |
| Product Range | 7815 Voltage Regulators |
| Max Output Current | 1.5A |
| No. of Pins | 3Pins |
| Operating Temperature Min | 0°C |
| Qualification | - |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Outputs | 1Outputs |
| Output Voltage - Nom | 15V |
| Output Voltage Max | - |
| Input Voltage Max | 35V |
| Output Current Max | 1.5A |
| IC Case / Package | TO-220 |
| IC Mounting | Through Hole |
| Operating Temperature Max | 125°C |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | L7815ACV |
| Quantity | Each |
| Technical Data Sheet (1.60MB) EN | View or download |
| Product Change Notice (85.20KB) EN | View or download |
