Description
Product Overview

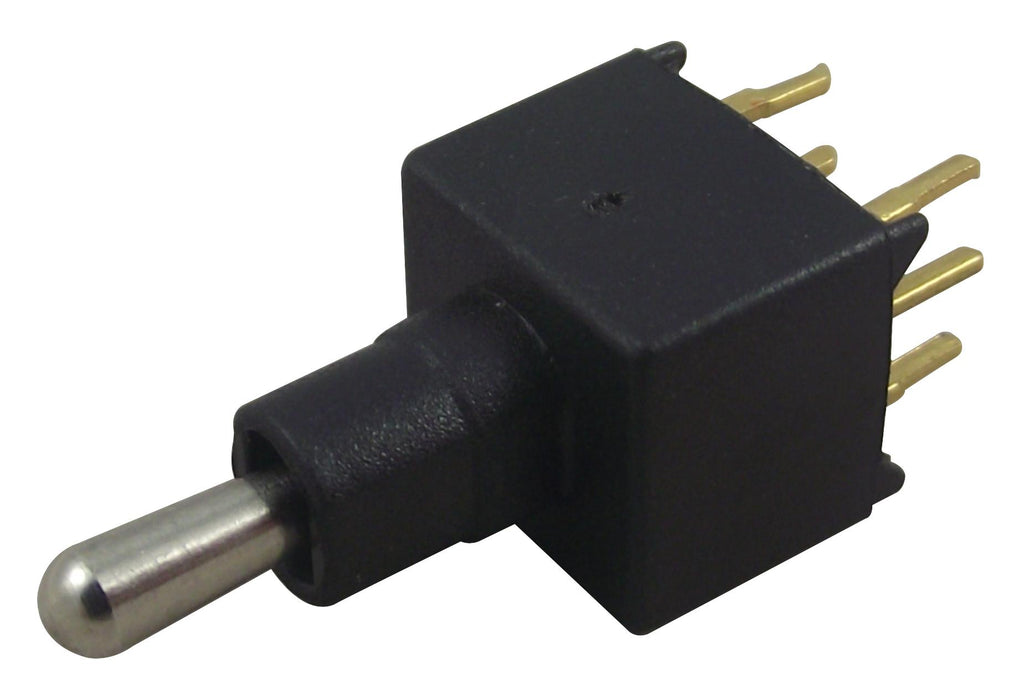

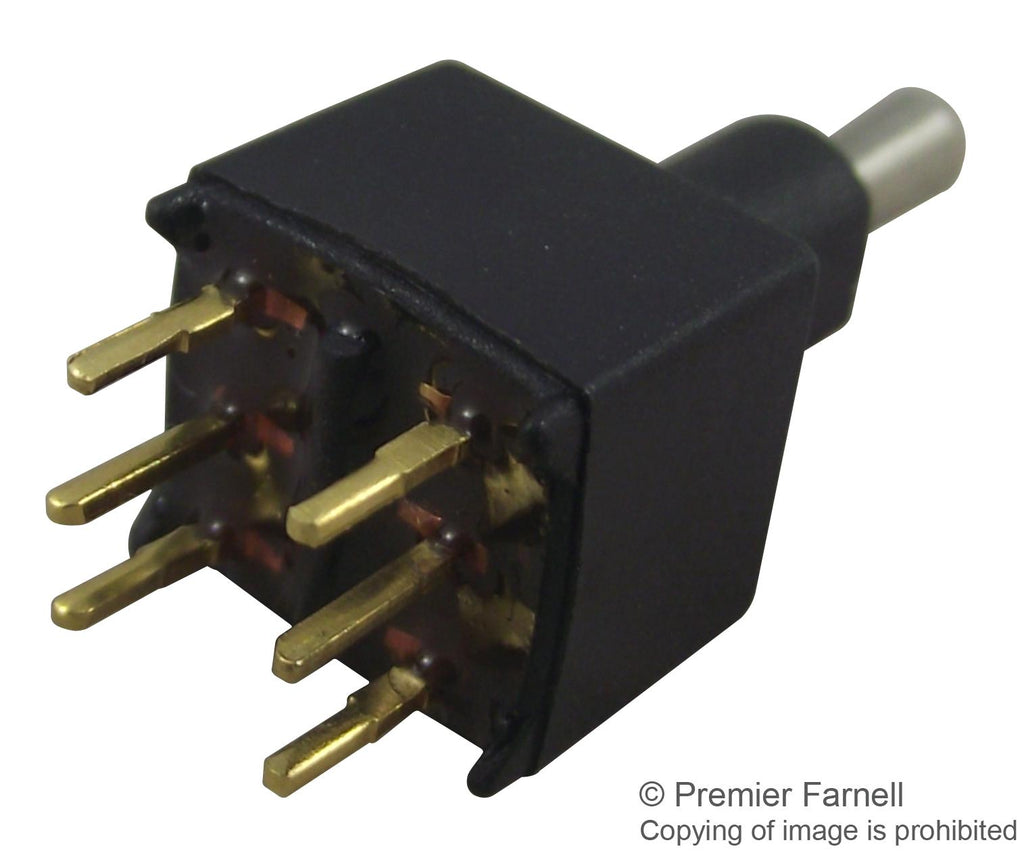

The TL series tiny washable Sub-miniature Toggle Switch is available in single and double pole with gold or silver plating. It is process sealed switch with single piece case, O-ring seal between actuator and bushing with epoxy sealed terminals.
- Wide variety of contact materials
- Same PCB layout as TP, TR and TG tiny switches
- -30 to 85°C Operating temperature range
Applications
Audio, Commercial, Communications & Networking, Medical, HVAC, Power Management, Industrial
Product details
| Switch Operation | On-Off-On |
| Illumination | Non Illuminated |
| Switch Mounting | Through Hole |
| Contact Voltage AC Nom | 20V |
| Contact Voltage DC Nom | 20V |
| Contact Configuration | DPDT |
| Product Range | TL Series |
| Contact Current Max | - |
| Switch Terminals | Solder |
Other details
| Brand | APEM |
| Part Number | TL49P005000 |
| Quantity | Each |
| Technical Data Sheet (208.70KB) EN | View or download |
