Description
Product Overview

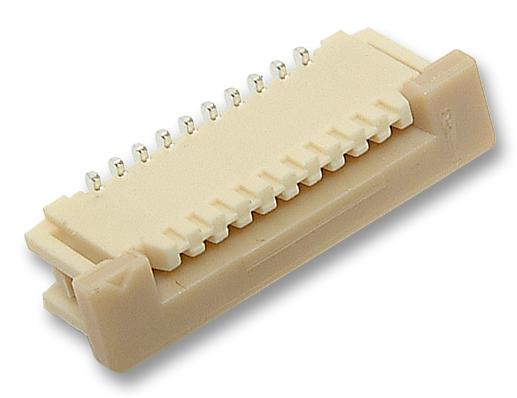

Easy-On FFC FPC Connectors are ideal for tight-packaging applications. They feature positive lock and dual-contact design that ensures reliable connection. Additionally, a wide variety of actuator options including ZIF, slider and flip help to establish a secure connection between the FFC/FPC connectors and terminals.
- Movable terminals ensure more secure contact retention
- Actuators reinforcements for large circuit sizes
- Various cable tab and actuator locking styles
- Accepts standard or shielded FFC connectors
- Grounding terminals accommodate high-speed, high-frequency signal requirements such as LVDS
- Multiple polarizing keys
- Positive inertia lock
Applications
Automotive, Consumer Electronics, Industrial, Medical, Data / Computing
Product details
| Pitch Spacing | 1mm |
| Gender | Receptacle |
| Contact Termination Type | Solder |
| No. of Rows | 1 Row |
| Contact Material | Phosphor Bronze |
| Connector Mounting | Surface Mount |
| SVHC | No SVHC (15-Jan-2019) |
| No. of Contacts | 22Contacts |
| Product Range | Easy-On 52610 Series |
| Contact Position | - |
| Contact Plating | Tin-Bismuth Plated Contacts |
| FFC / FPC Thickness | 0.3mm |
| Connector Orientation | Straight |
Other details
| Brand | MOLEX |
| Part Number | 52610-2271 |
| Quantity | Each |
| CAD Multiple Formats (292.75KB) EN | View or download |
| Technical Data Sheet (29.58KB) EN | View or download |
| Product Change Notice (60.82KB) EN | View or download |
| Drawing (358.95KB) EN | View or download |
