Description

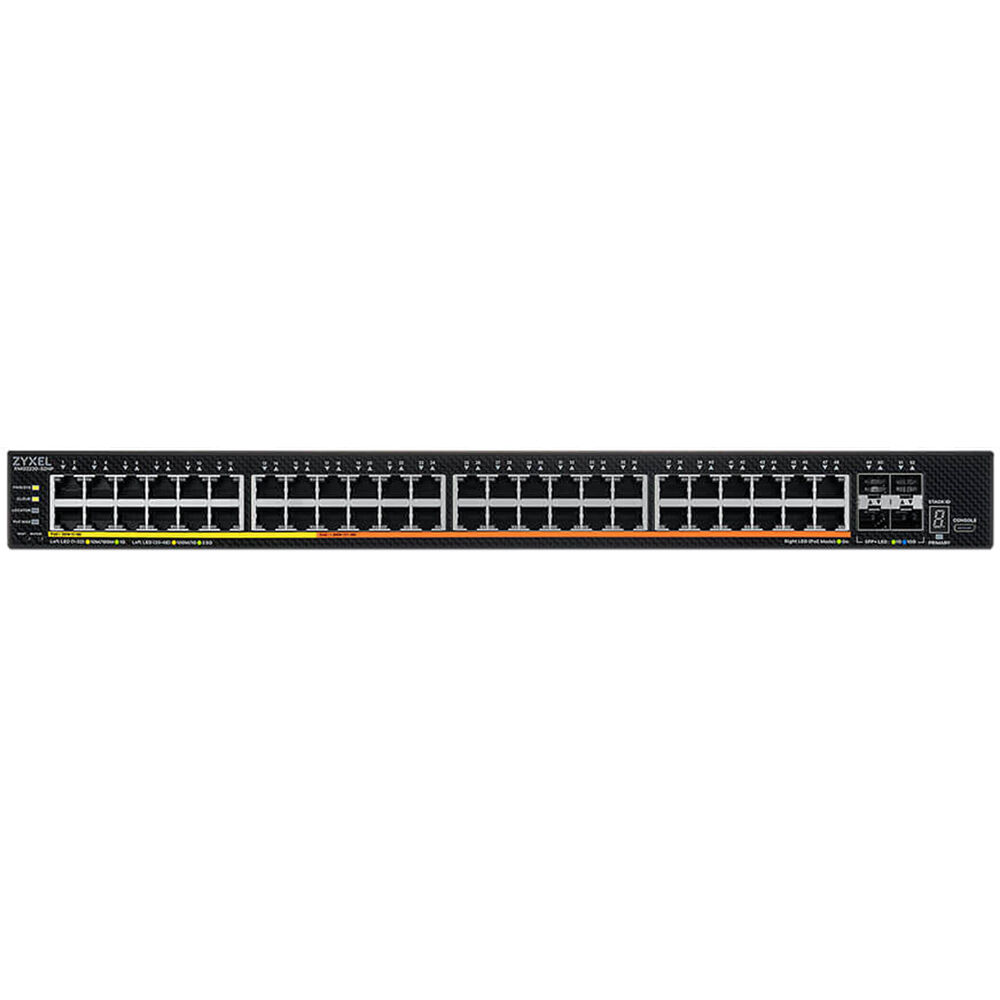

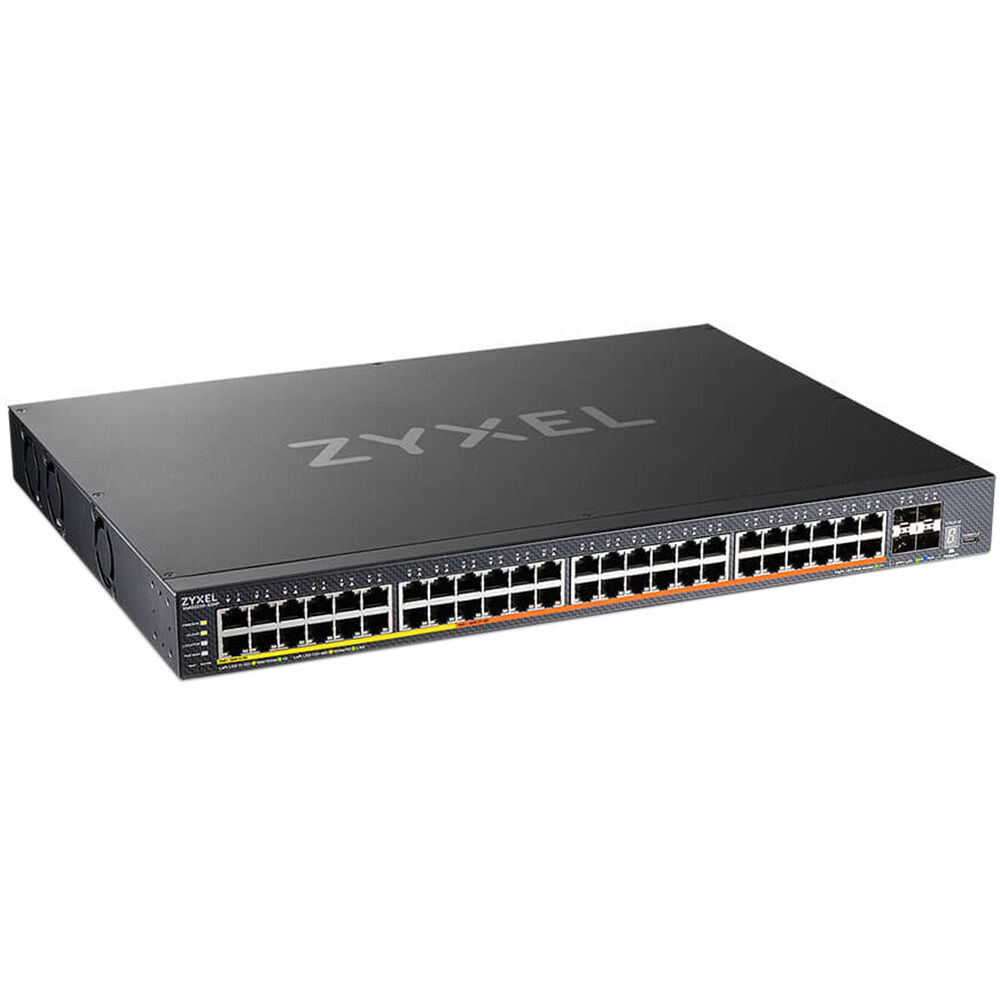

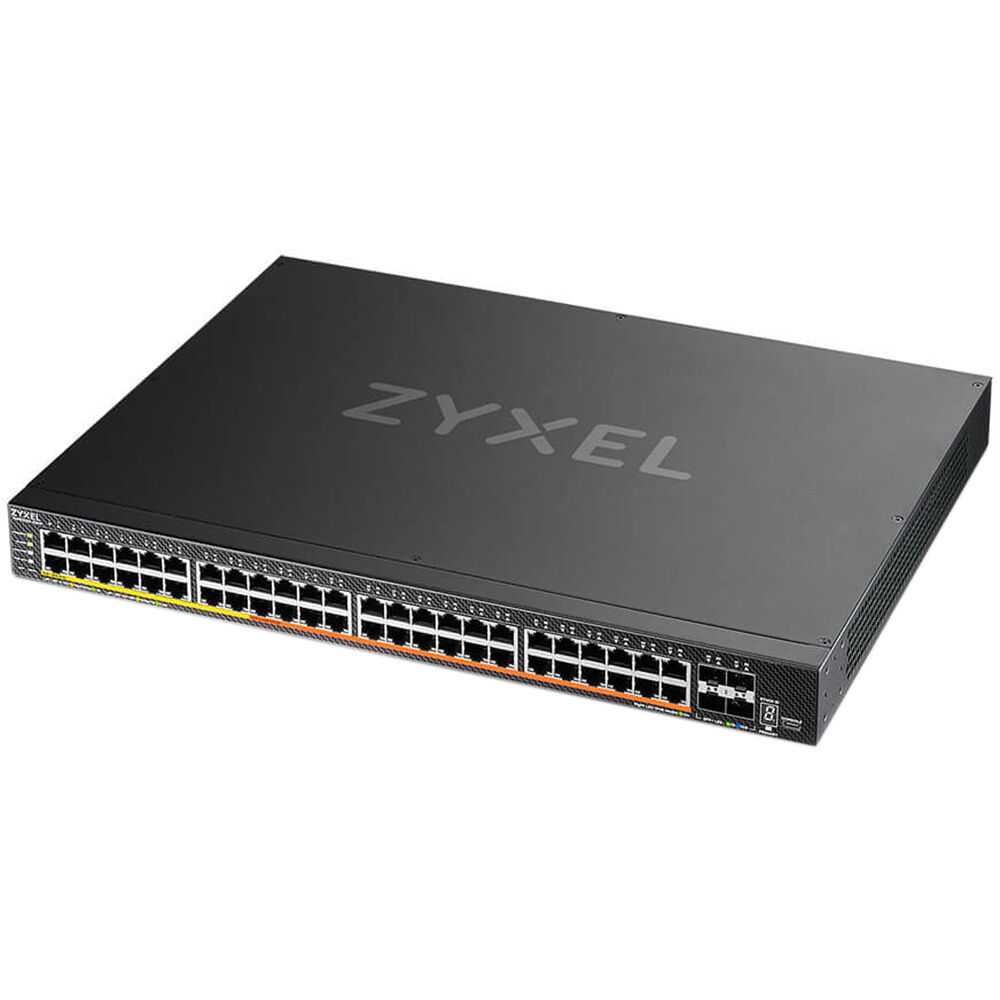

Operate advanced security cameras, access points, VoIP phones, and other devices with the ZyXEL XMG2230-52HP 48-Port 1G / 2.5G PoE++ Compliant Managed Network Switch. Designed for flexibility, this managed rack mountable switch features thirty-two Gigabit-speed and sixteen 2.5 Gb/s compatible RJ45 ports that provide 30W PoE+ and 60W PoE++ to compatible devices.
All sixteen of the 2.5G ports and half of the Gigabit RJ45 ports support up to 60W output to compatible devices. The remaining Gigabit ports provide up to 30W. Using the internal AC power supply enables a 960W power budget. Connecting the switch to external DC power provides failover redundancy while increasing the power budget to 1400W. There are also four SFP+ slots available for up to 10 Gb/s fiber uplinks. A 224 Gb/s switching capacity, 166.6 Mpps forwarding rate, and 2MB packet buffer help to ensure smooth performance. You can manage the ZyXEL XMG2230-52HP in standalone mode or through the Nebula cloud platform.
| Networking I/O | 52 Total Connections Supporting up to 10 GbE |
| Stackable | No |
| Switching Bandwidth | 224 Gb/s |
| PoE Power Budget | 2400 W |
| Networking I/O | 16x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 16x RJ45 Gigabit Ethernet PoE++ (60 W, 802.3bt Type 3) 16x RJ45 2.5 GbE PoE++ (60 W, 802.3bt Type 3) 4x SFP+ 10 GbE |
| Stackable | No |
| Layer Services Supported | Layer 2, Layer 3 |
| Supported Protocols | Auto-MDIX/MDI DHCP Server IGMP Snooping IPv4 IPv6 Link Aggregation |
| Jumbo Frames Support | 12,000 Bytes |
| MAC Address Table Size | 32K |
| Forwarding Rate | 166.6 Mpps |
| Switching Bandwidth | 224 Gb/s |
| Packet Buffer | 2 MB |
| Flash Memory | 64 MB |
| Memory | 1 GB |
| PoE Power Budget | 2400 W |
| Power Draw | 2525.00 W (Max) |

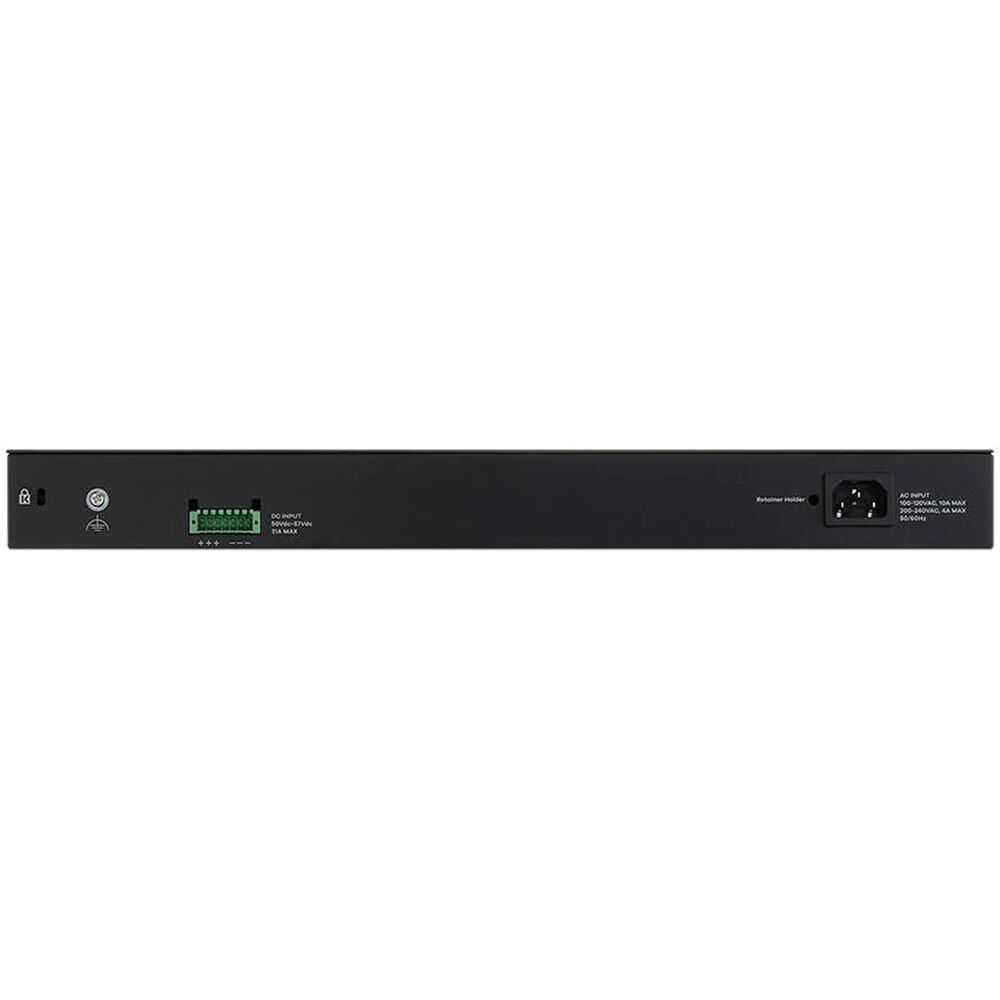

| Input Power | 50 to 57 VDC 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Operating Conditions | -4 to 122°F / -20 to 50°C at 5 to 95% Humidity |
| Storage Conditions | -40 to 158°F / -40 to 70°C at 5 to 95% Humidity |
| Cooling System | Fan (Noise Level 63.76 dB) |
| Mean Time Between Failures (MTBF) | 0.4 Million Hours |
| Indicator Lights | Yes |
| Rack Mountable | Yes |
| Dimensions | 17.4 x 13 x 1.7" / 441 x 330 x 44 mm |
| Weight | 11 lb / 5 kg |
| Package Weight | 15.225 lb |
| Box Dimensions (LxWxH) | 22.9 x 20.2 x 3.9" |
