Description

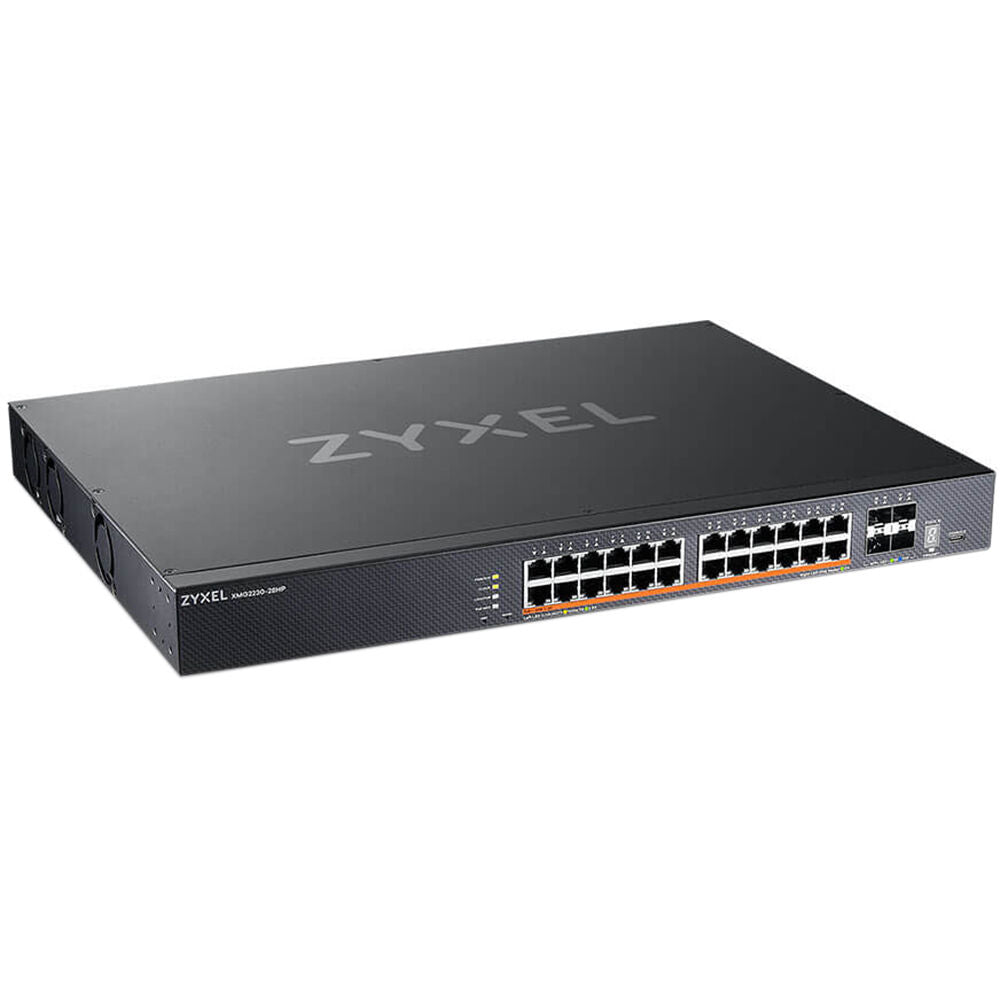

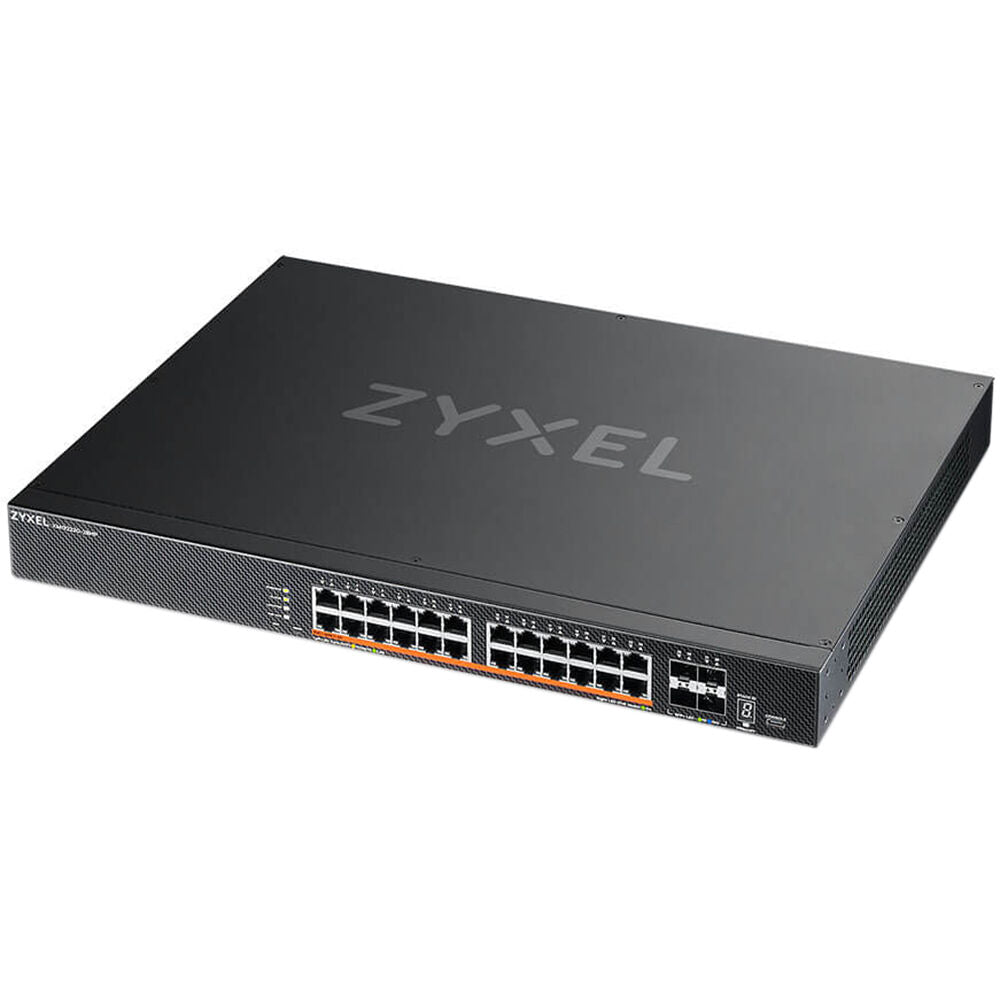

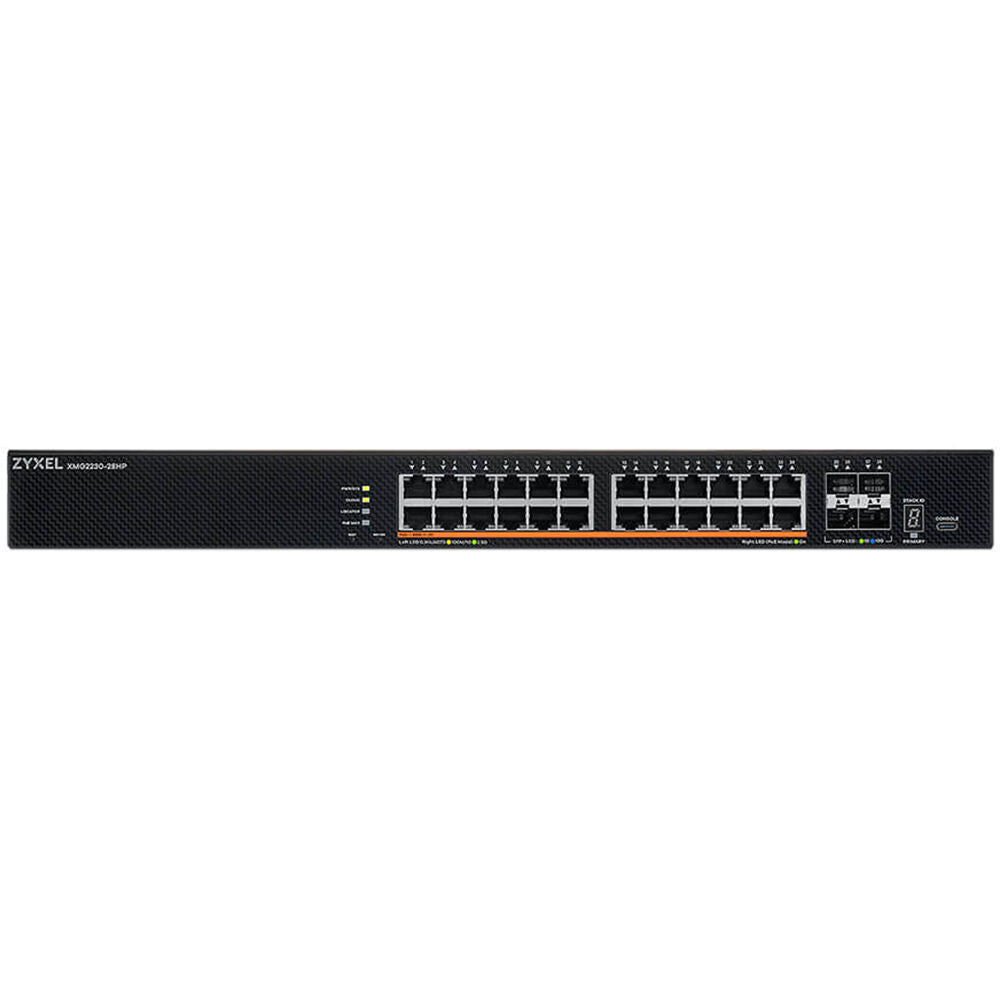

Operate advanced security cameras, access points, VoIP phones, and other devices with the ZyXEL XMG2230-28HP 24-Port 2.5G PoE++ Compliant Managed Network Switch. Designed for flexibility, this managed rack mountable switch features twenty-four 2.5 Gb/s compatible RJ45 ports, each supporting 60W to PoE++ compatible devices.

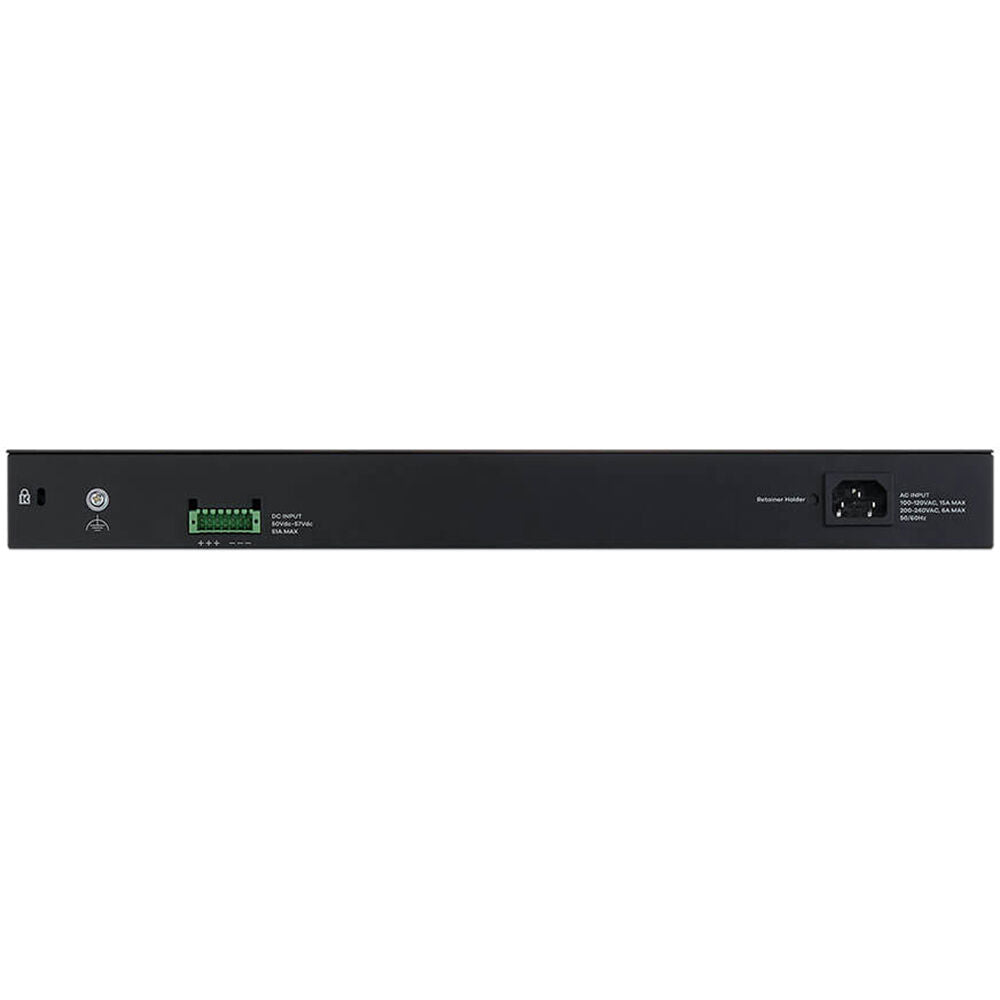

Using the internal AC power supply enables a 700W power budget. Connecting the switch to external DC power provides failover redundancy while increasing the power budget to 1440W. There are also four SFP+ slots available for up to 10 Gb/s fiber uplinks. A 200 Gb/s switching capacity, 148.8 Mpps forwarding rate, and 2MB packet buffer help to ensure smooth performance. You can manage the ZyXEL XMG2230-28HP in standalone mode or through the Nebula cloud platform.
| Networking I/O | 28 Total Connections Supporting up to 10 GbE |
| Stackable | No |
| Switching Bandwidth | 200 Gb/s |
| PoE Power Budget | 1440 W |
| Networking I/O | 24x RJ45 2.5 GbE PoE++ (60 W, 802.3bt Type 3) 4x SFP+ 10 GbE |
| Stackable | No |
| Layer Services Supported | Layer 2, Layer 3 |
| Supported Protocols | Auto-MDIX/MDI DHCP Server IGMP Snooping IPv4 IPv6 Link Aggregation |
| Jumbo Frames Support | 12,000 Bytes |
| MAC Address Table Size | 32K |
| Forwarding Rate | 148.8 Mpps |
| Switching Bandwidth | 200 Gb/s |
| Packet Buffer | 2 MB |
| Flash Memory | 64 MB |
| Memory | 1 GB |
| PoE Power Budget | 1440 W |
| Power Draw | 2525.00 W (Max) |
| Input Power | 50 to 57 VDC 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Operating Conditions | -4 to 122°F / -20 to 50°C at 5 to 95% Humidity |
| Storage Conditions | -40 to 158°F / -40 to 70°C at 5 to 95% Humidity |
| Cooling System | Fan (Noise Level 48.85 dB) |
| Mean Time Between Failures (MTBF) | 0.5 Million Hours |
| Indicator Lights | Yes |
| Rack Mountable | Yes |
| Dimensions | 17.4 x 13 x 1.7" / 441 x 330 x 44 mm |
| Weight | 9.99 lb / 4.53 kg |
| Package Weight | 14.09 lb |
| Box Dimensions (LxWxH) | 22.9 x 20.2 x 4.1" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
