Description

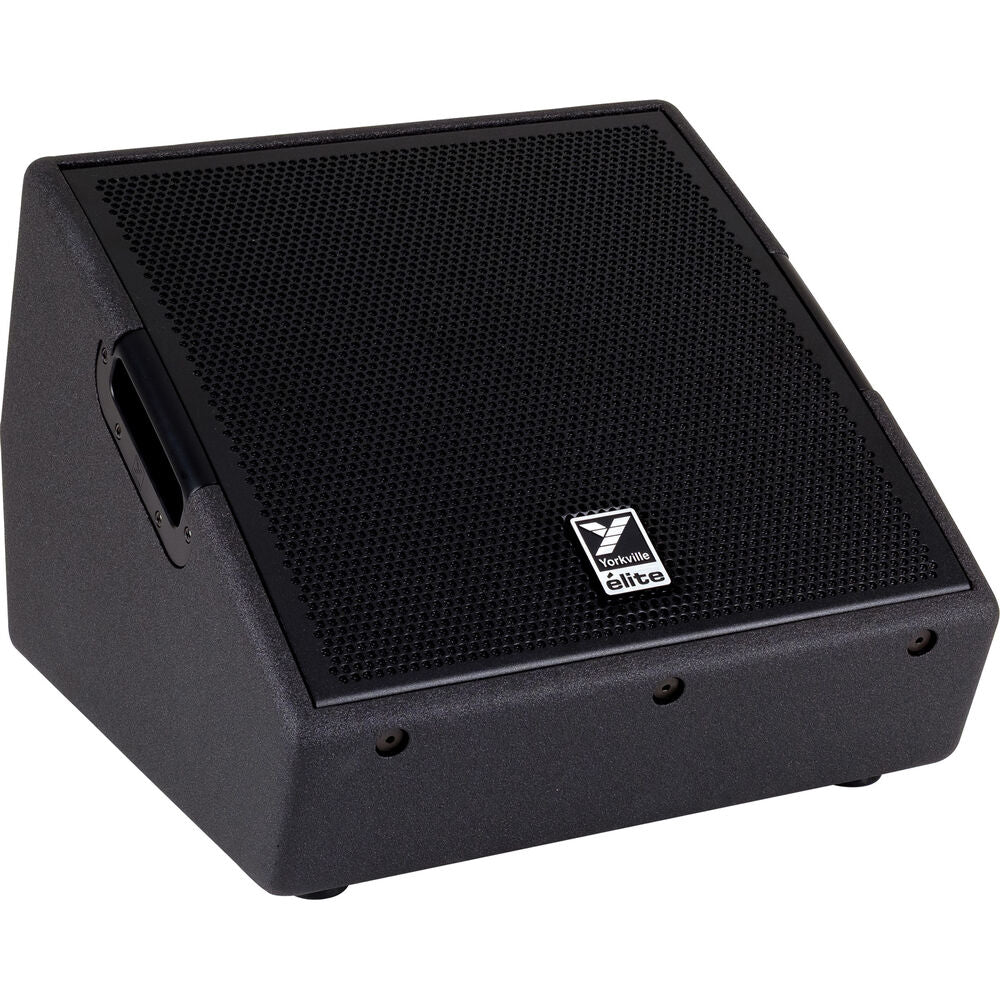

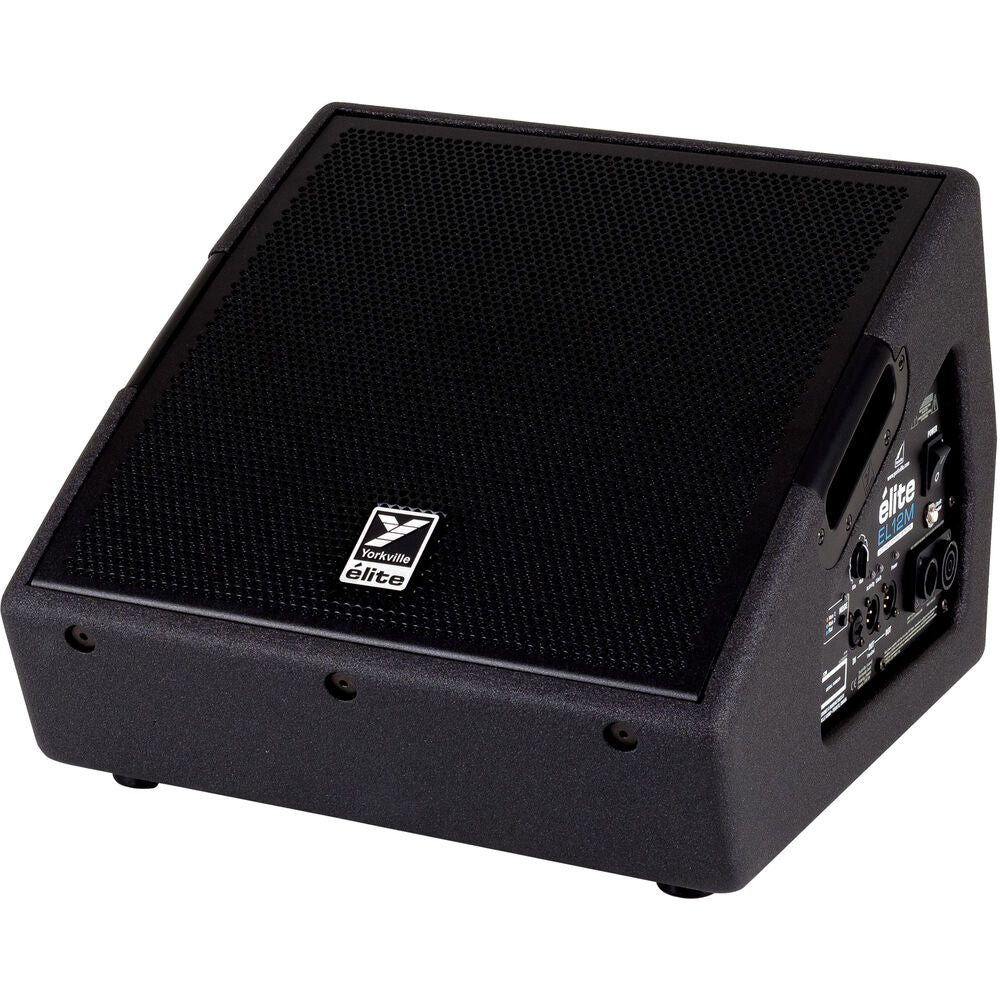

The Yorkville EL12M is a dedicated 1200W 2-way coaxial 12" powered stage monitor, offering superior sound quality from a box weighing less than 40 lb. The coaxial placement of the 1" high-frequency driver within the 12" woofer provides phase accurate performance for next-level clarity.

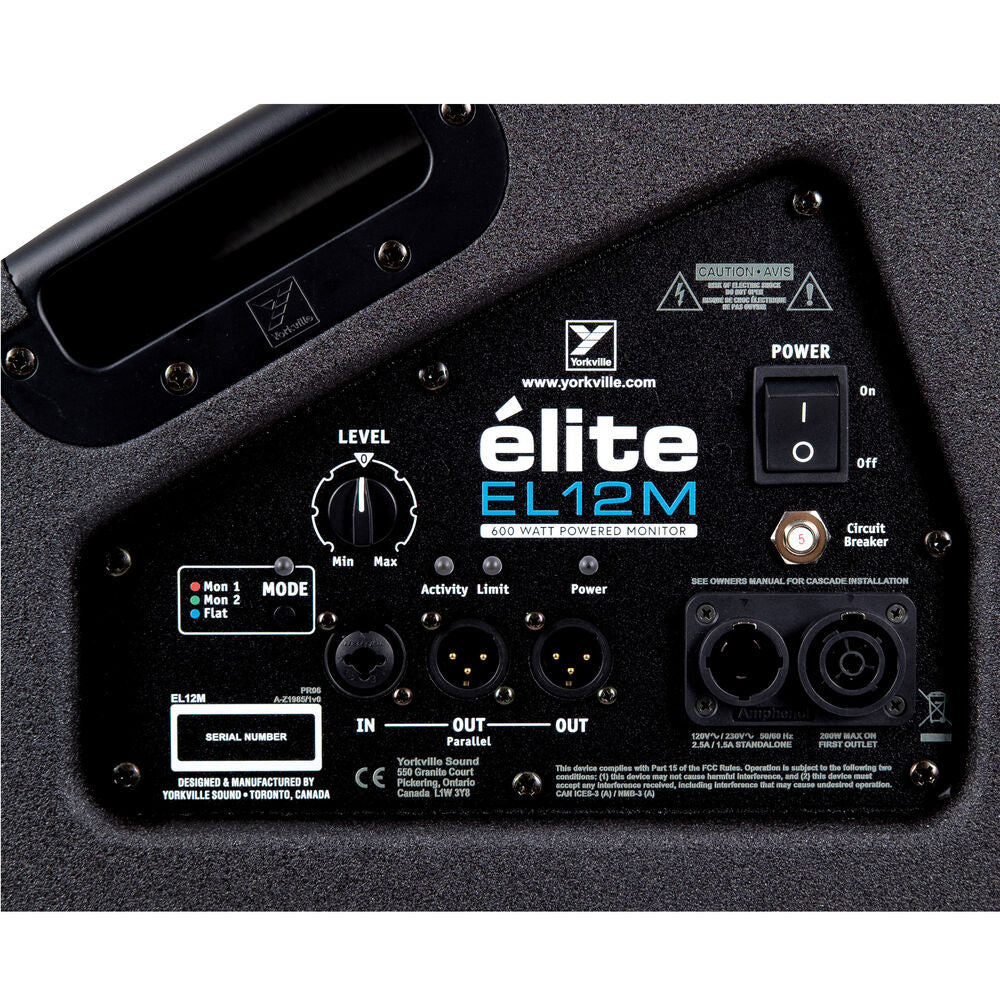

The EL12M features two selectable monitor modes, which are voiced for vocals, and its flat mode is ideal for instrument sources like synthesizers, electronic drum kits, or for use as an FRFR solution for amp modelers. It also features an XLR-1/4" input jack, two XLR outputs, and powerCON TRUE1 input and output connectors, so it integrates easily into any PA system.
| Speaker Type | Active Floor Monitor |
| Configuration | 2-Way |
| Total Output Power | 600 W Program / 1200 W Peak |
| LF Driver | 1x 12" / 30.5 cm Woofer Voice Coil: 2.5" / 6.4 cm |
| HF Driver | 1x 1" / 25.4 mm Horn-Loaded Compression Driver Throat: 1" / 25.4 mm Voice Coil: 1.75" / 44.45 mm |
| Frequency Range/Response | 60 Hz to 20 kHz (±3 dB) |
| Speaker Type | Active Floor Monitor |
| Configuration | 2-Way |
| Enclosure Type | Bass-Reflex |
| Total Output Power | 600 W Program / 1200 W Peak |
| LF Driver | 1x 12" / 30.5 cm Woofer Voice Coil: 2.5" / 6.4 cm |
| HF Driver | 1x 1" / 25.4 mm Horn-Loaded Compression Driver Throat: 1" / 25.4 mm Voice Coil: 1.75" / 44.45 mm |
| Frequency Range/Response | 60 Hz to 20 kHz (±3 dB) |
| Maximum SPL | 132 dB (Peak) |
| Coverage Angle | 60° H x 60° V |
| Protections | Output Limiter, Signal Limiter, Thermal |
| Crossover Frequency | 1500 Hz |
| EQ & Filters | No |
| Dynamic Processing | Peak Limiter |
| Alignment Delay | No |
| Digital Signal Processing | Venue Settings |
| Audio I/O | 1x Combo XLR-1/4" TRS Line Input 2x XLR 3-Pin Line Thru/Output |
| Network I/O | No |
| USB I/O | No |
| Wireless | No |
| Mobile App Compatible | No |
| AC Input Power | 120 to 230 VAC, 50 / 60 Hz |
| AC Power I/O | 1x powerCON TRUE1 Input 1x powerCON TRUE1 Output |
| Current Consumption | 2.5 A (Typical) / 6 A (Max) |
| Color | Black |
| Mounting | No |
| Handles | 1x Each Side 1x Bottom |
| Construction Material | Plywood |
| Environmental Resistance | No |
| Dimensions | 17 x 16.3 x 12.2" / 43.2 x 41.4 x 31 cm |
| Weight | 38.7 lb / 17.6 kg |
| Package Weight | 39.795 lb |
| Box Dimensions (LxWxH) | 17.7 x 17.5 x 13.7" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 97999999.02 |
| 3-5 | ₹ 96999999.03 |
| 5-10 | ₹ 94999999.05 |
| 10+ | ₹ 92999999.07 |
Bulk discount will be automatically applied during checkout based on quantity.
