Description

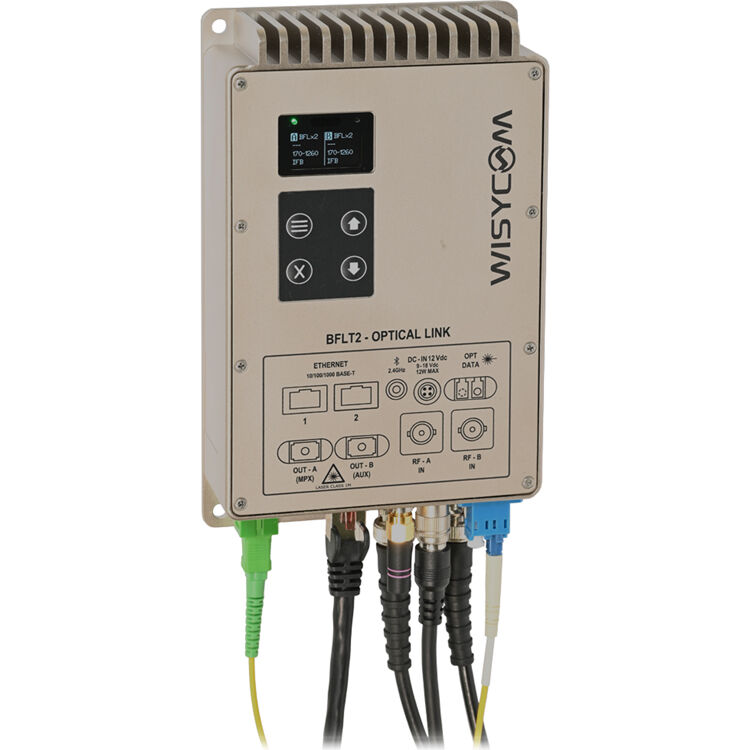

Remove the limitations of distance with the Wisycom BFL-T2, an optical RF transmitter module that converts RF input signals and converts them to optical signals. With a high-contrast OLED and four navigation keys, the BFL-T2 is easy to use and deploy for greatly extended antenna distances.
Use IFB mode to send low power IFB/IEM signals over fiber to remote areas and ANT mode to receive signals from antenna placed in a remote area. The module can be controlled via wired Ethernet or wireless Bluetooth and LoRa. The integrated SFP module can handle 1310nm optical signals and transmits optical lasers at up to 6mW for exceptionally long distances. You can engage 20 bandpass filters and a tunable 40 MHz filter. You can also use the BFL-T2 to remote control LFA, ADGA, and BFA Wisycom antennas. The module is powered by a 9 to 18 VDC power supply. The BFL-T2 includes a PSP15V1A6-H and PSP15V1A2-H power supply.
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Native Resolution | 128 x 64 |
| Touchscreen | No |
| Audio I/O | 2x RJ45 Coaxial Input 1x SFP Optical Input 2x BNC Coaxial Input/Output (RF Antenna) |
| Wireless | Bluetooth *Built-In |
| Mobile App Compatible | Yes: Android & iOS App Name: WISYCOM BT App |
| Power Source | AC Adapter with Power Brick (Included) |
| DC Input Power | 9 to 18 VDC |
| Power Consumption | 6.9 W (Maximum) 5.4 W (Typical) |
| Mounting | 4x M4 Screw Hole |
| Color | Bronze |
| Material of Construction | Metal |
| Operating Conditions | 14 to 122°F / -10 to 50°C |
| Dimensions | 7 x 4.1 x 1.7" / 17.8 x 10.5 x 4.2 cm |
| Weight | 28.2 oz / 800 g |
| Package Weight | 2.38 lb |
| Box Dimensions (LxWxH) | 10.1 x 6.5 x 3.5" |
