Description

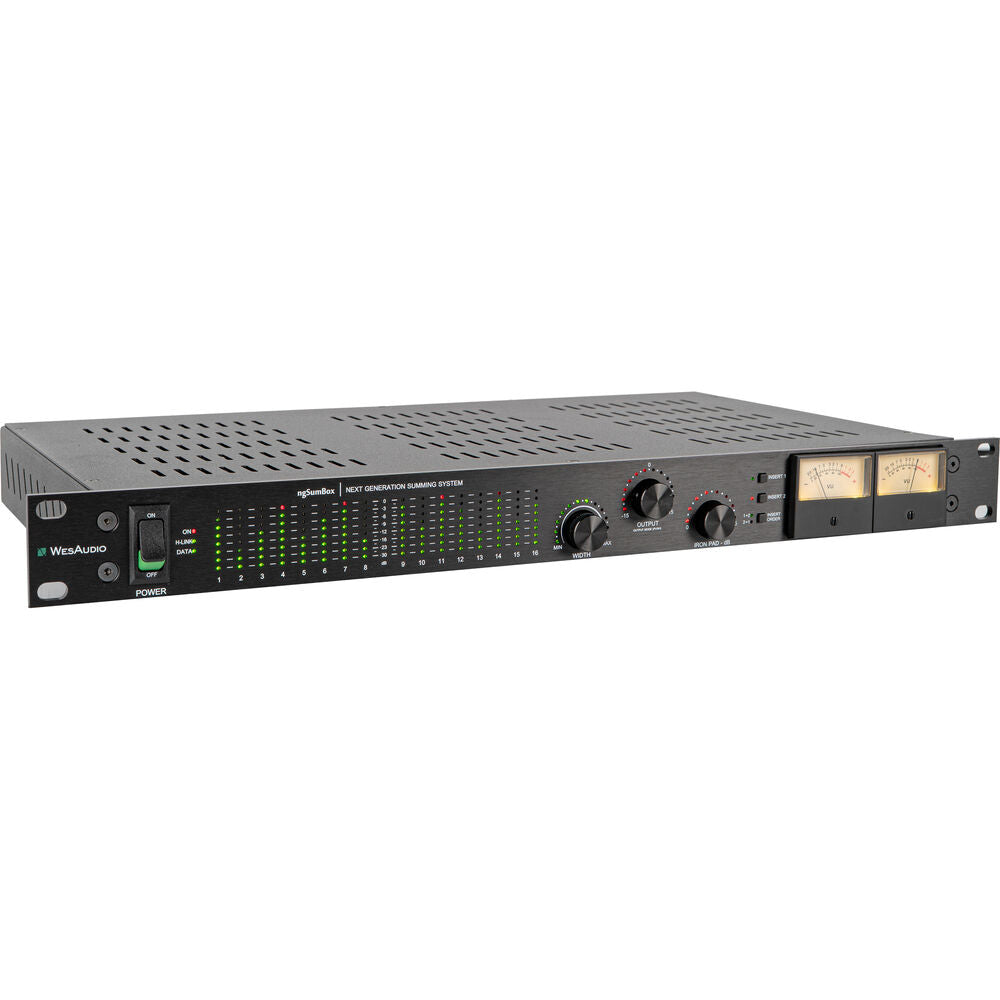

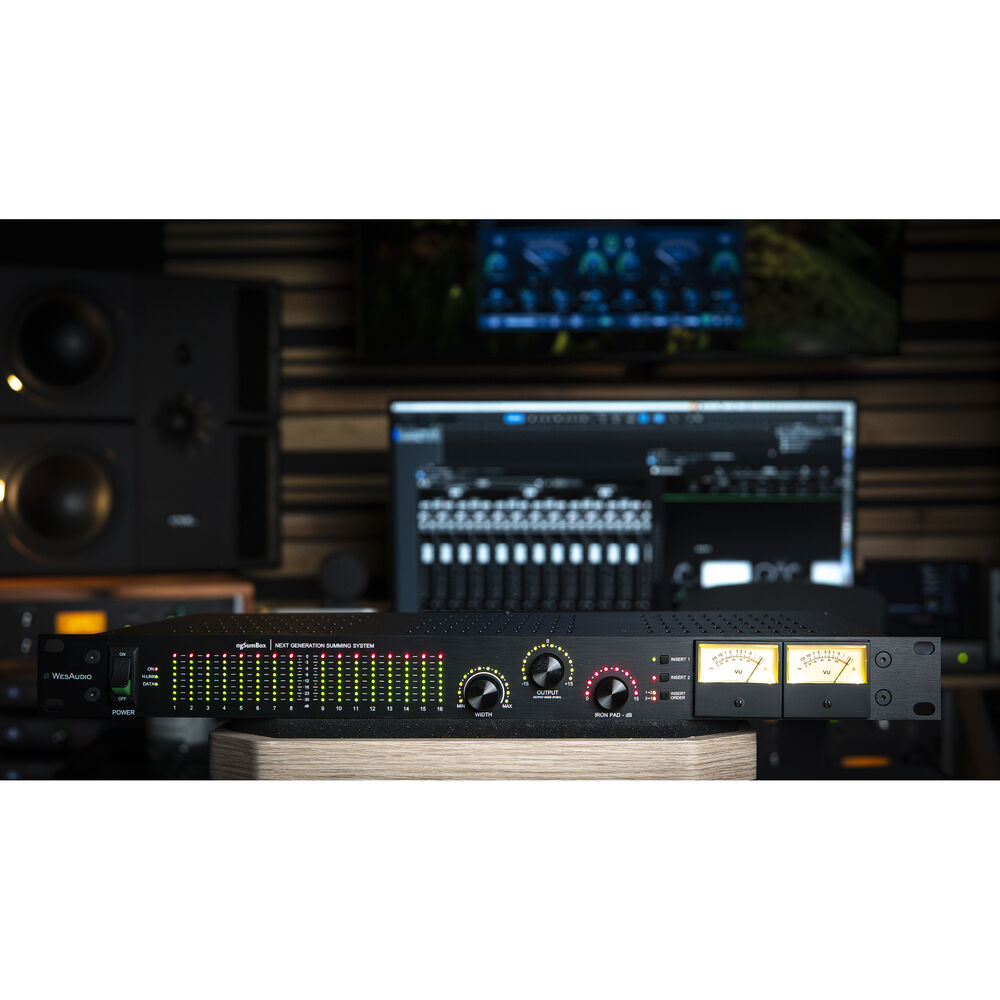

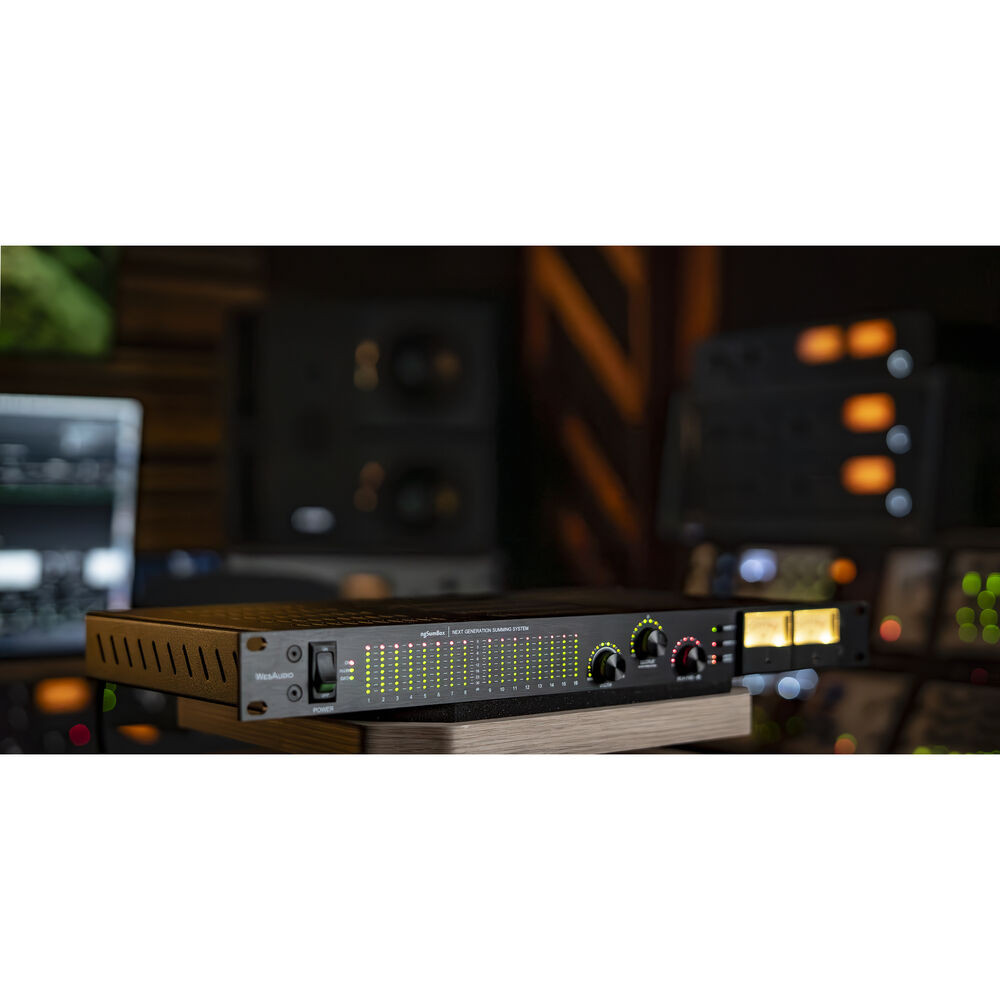

Perfect for modern hybrid studios, the WesAudio ngSumBox merges the depth, width, and cohesion of high-end, analog summing with advanced functionality and control capabilities. An 18x2 architecture provides 16 fully controllable input channels, with two extra inputs for stems, effects returns, or submixes. A single pair of XLR male connectors are provided for the main outputs, while 16 direct outputs are selectable either as pre or post fader. Each of the 16 inputs has full level and automation control thanks to USB and Ethernet connections and contain adjustable total harmonic distortion (THD) for dialing-in anything from pristine clarity to subtle saturated tones.

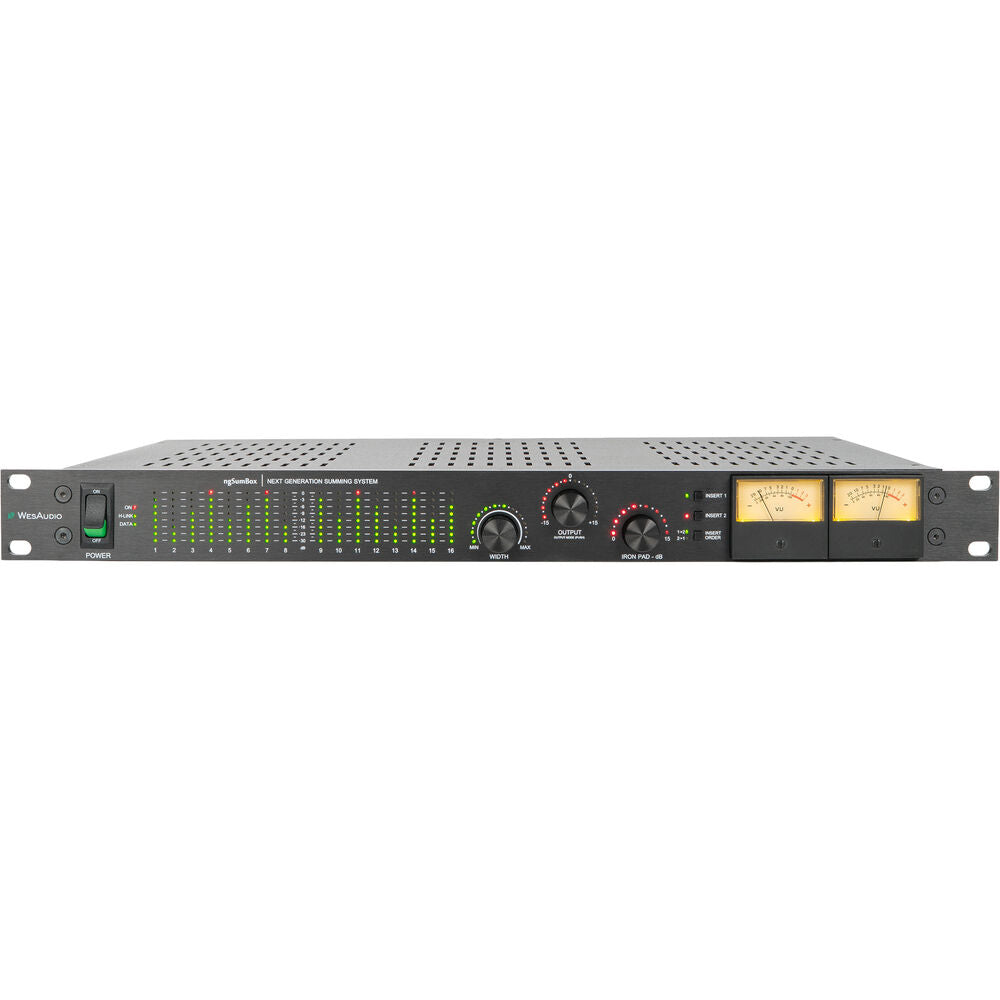

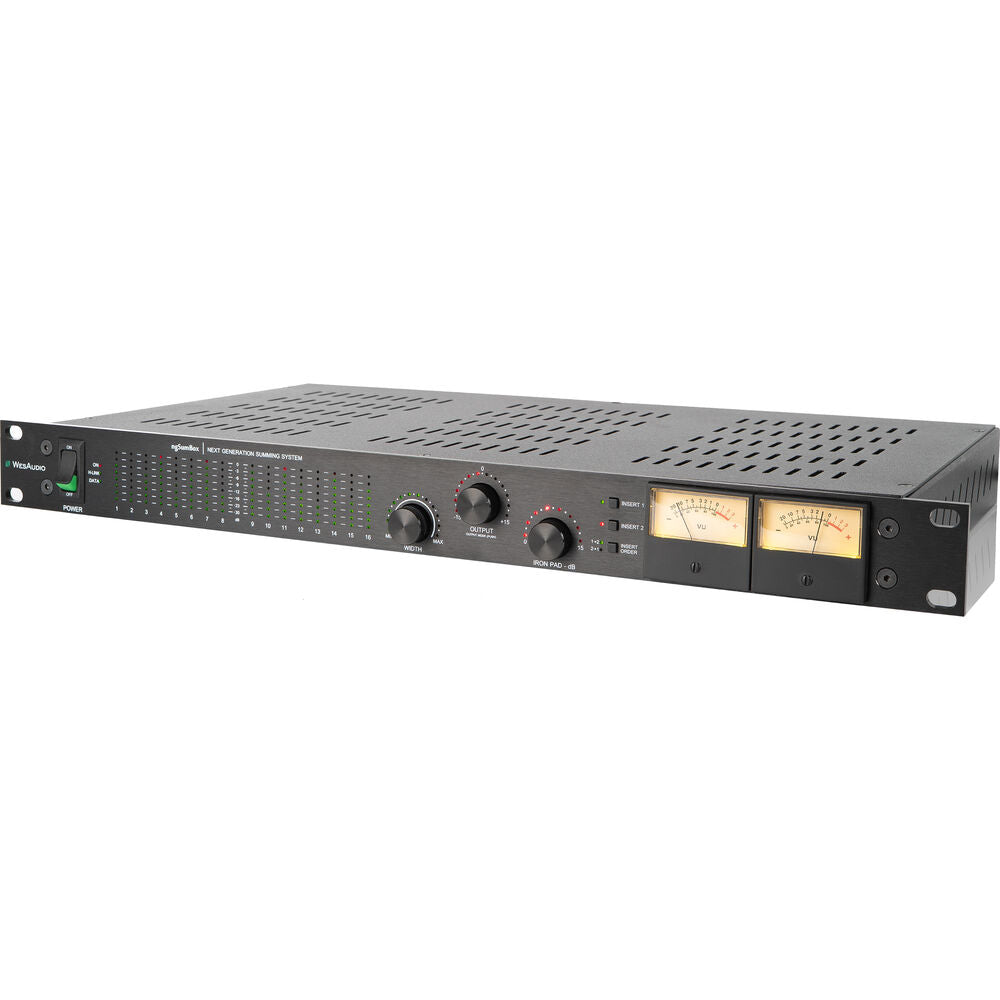

LED metering is available for all 16 inputs, and dual illuminated VU meters show summed stereo bus levels. "Use the width control to naturally enhance the stereo image while bringing depth and openness to your recordings. In addition, each channel can be routed in a true LCR matrix for precise stereo field placement. And with a dual insert section via 1/4" TRS connections, you can integrate your favorite outboard equipment for creating professional sounding records.

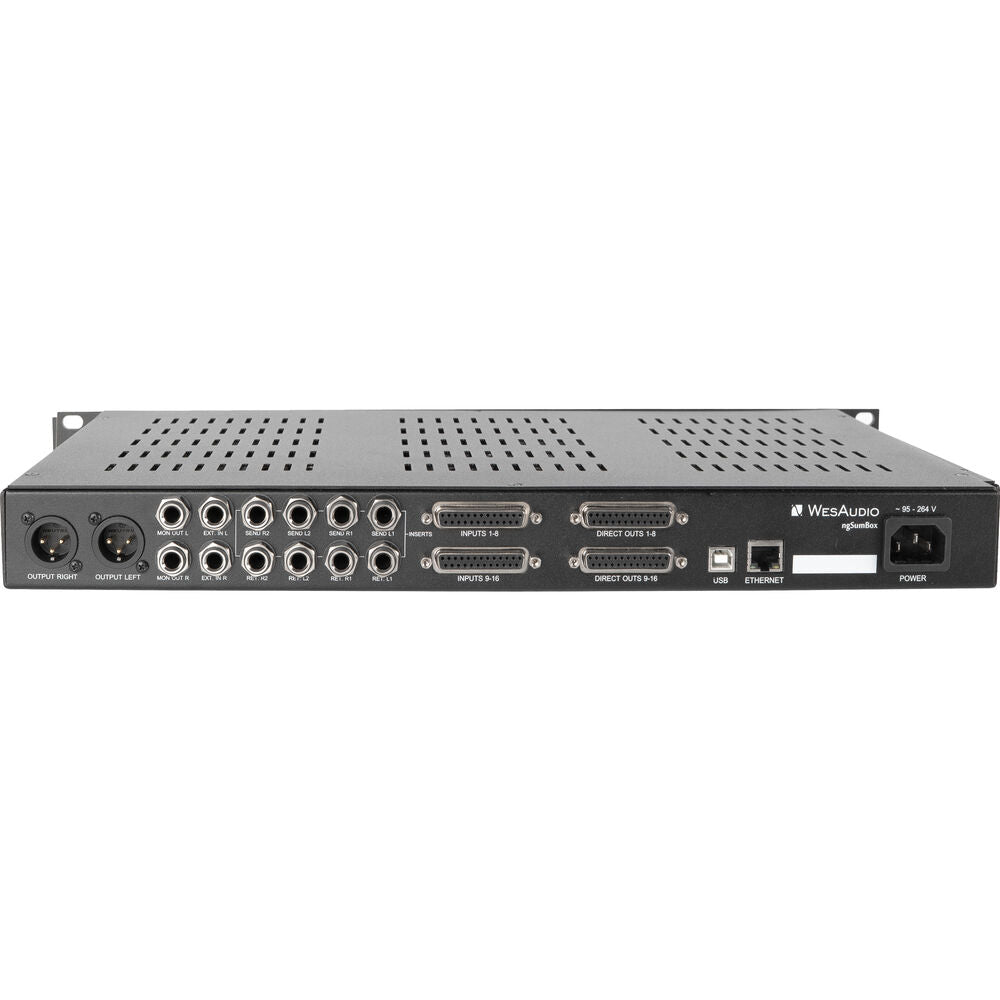

| Inputs | 16 Inputs via Two DB-25 Connectors (Eight Inputs Each) One Pair of 1/4" TRS External Inputs |
| Analog Inserts | Two Pairs of 1/4" TRS Insert Sends Two Pairs of 1/4" TRS Insert Returns |
| Outputs | One Pair of 3-Pin XLR Male Outputs One Pair of 1/4" TRS Monitor Outputs |
| Channel Direct Out | 16 Outputs via Two DB-25 Connectors (Eight Outputs Each) |
| On-Board Processors | Width Control Iron Pad THD |
| Gain Control | Output Control |
| Gain Range | Output: 30 dB (-15 to +15 dB) |
| Metering | Eight LED Array per Input Channel Dual Illuminated VU Meters for Summed Stereo Bus |

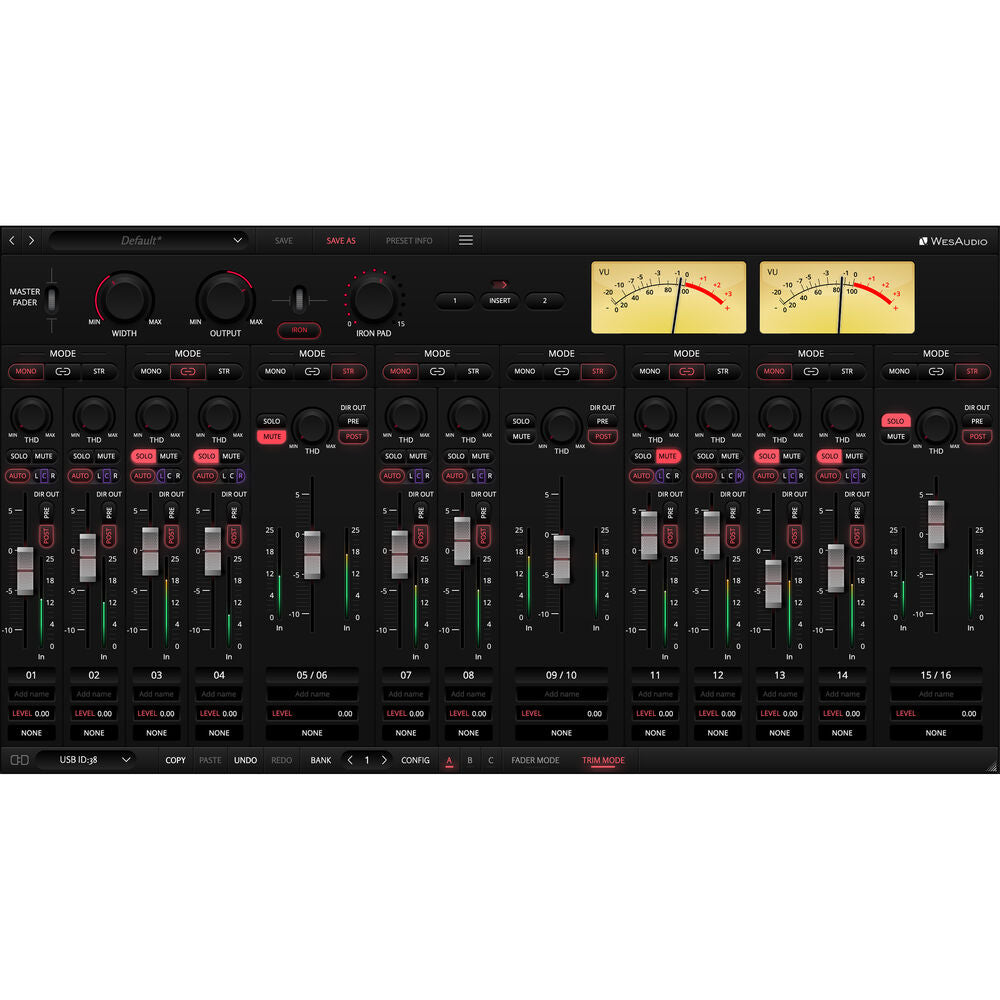

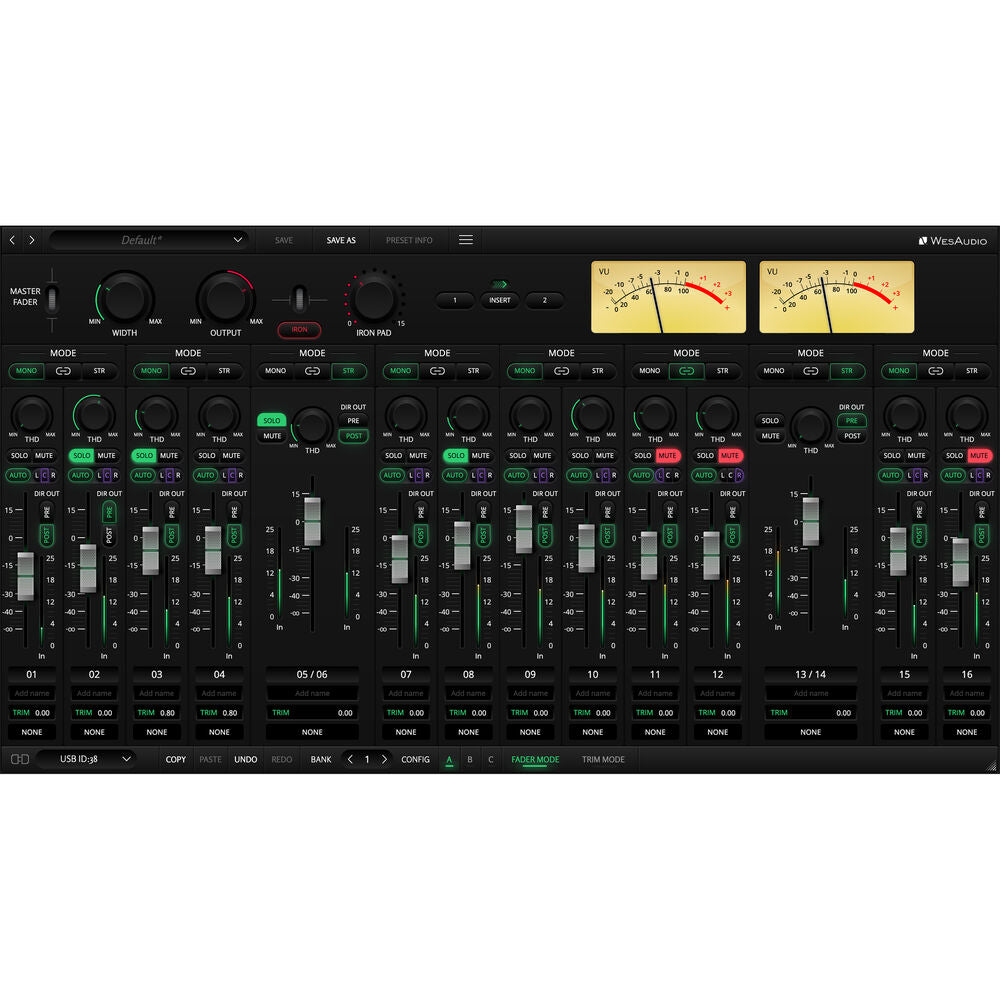

| Recall Method | USB-B and RJ45 Ethernet Connections Parameters Are Controlled via Free Plug-In Inside DAW Software |
| Power | 95 to 264 VAC (IEC Connection) |
| Package Weight | 11.86 lb |
| Box Dimensions (LxWxH) | 14.2 x 6.3 x 6.3" |
