Description

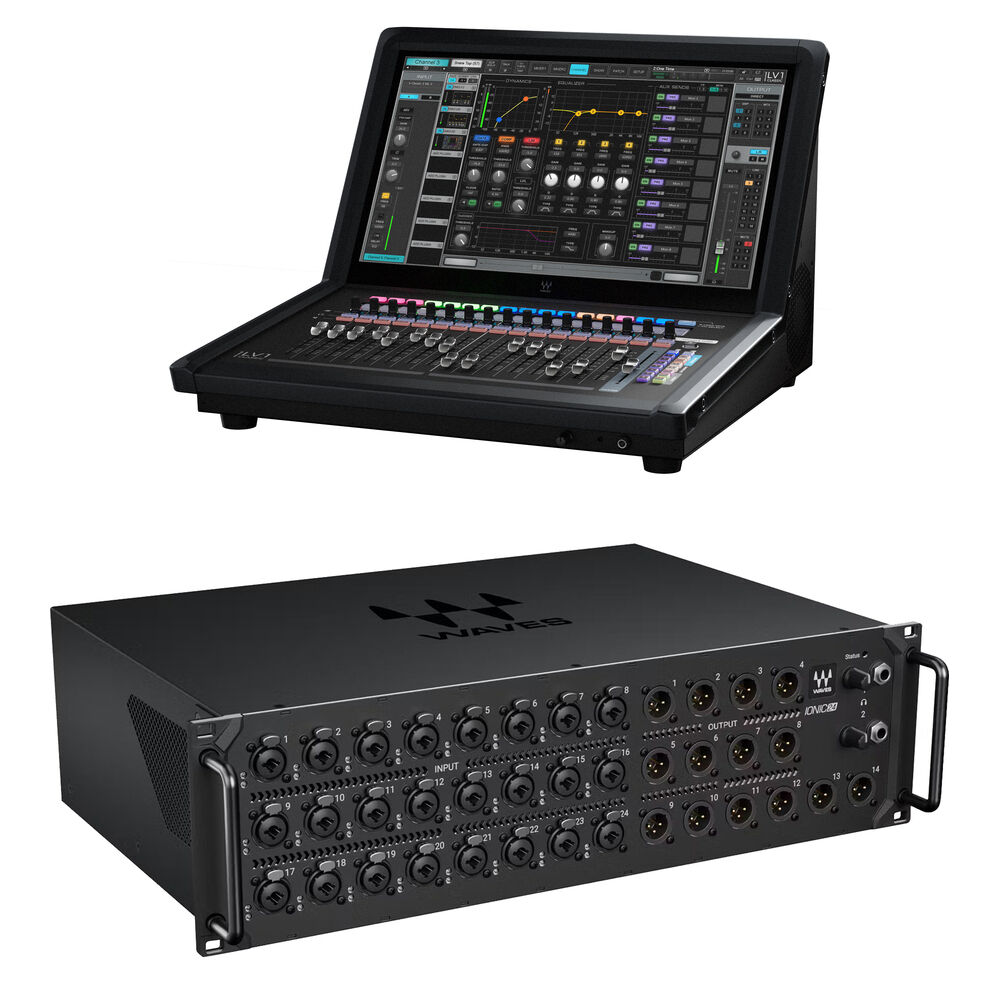

Fully integrate Waves plug-ins into your professional live audio rig with this B&H Kit that provides one Waves eMotion LV1 Classic 64-Channel / 44 Bus Live Mixing Console and one Ionic 24 24-In /18-Out Soundgrid Stagebox. Both units feature Waves Signature preamps and the mixer offers live use of Waves plug-ins for processing your signals.

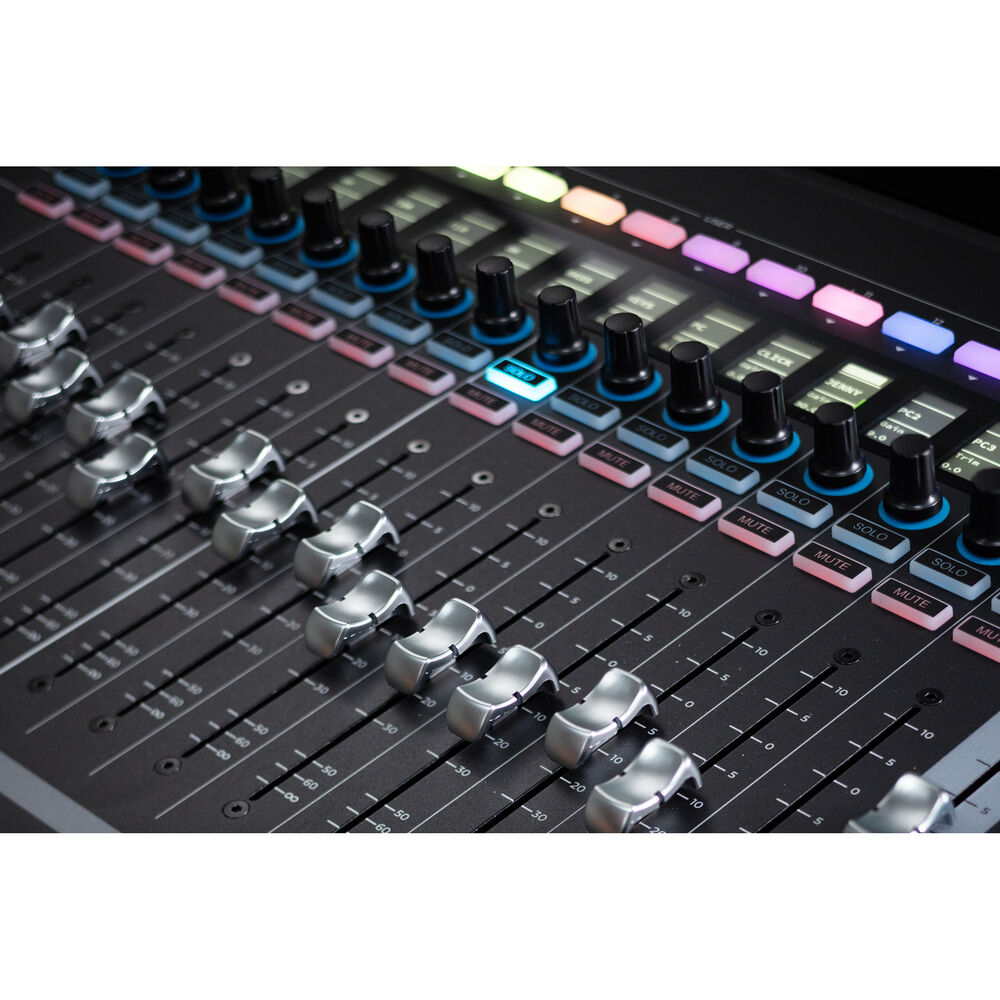

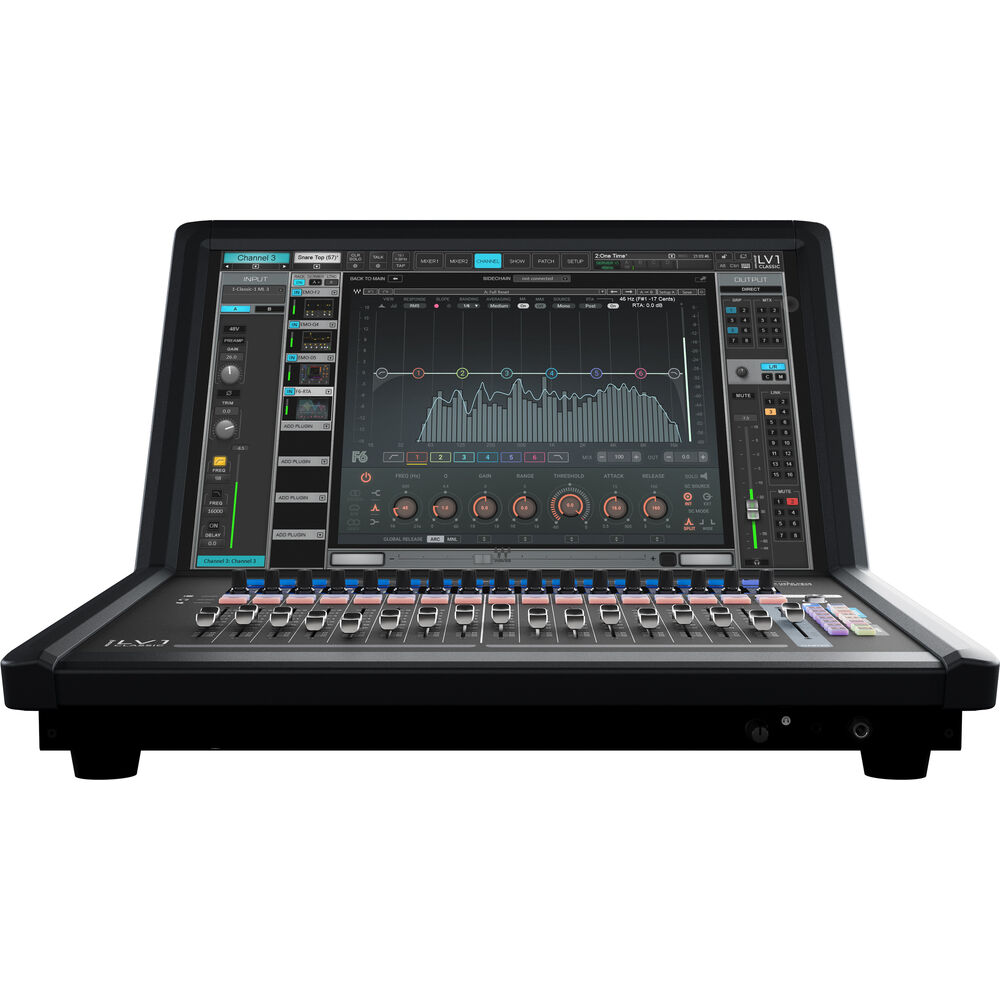

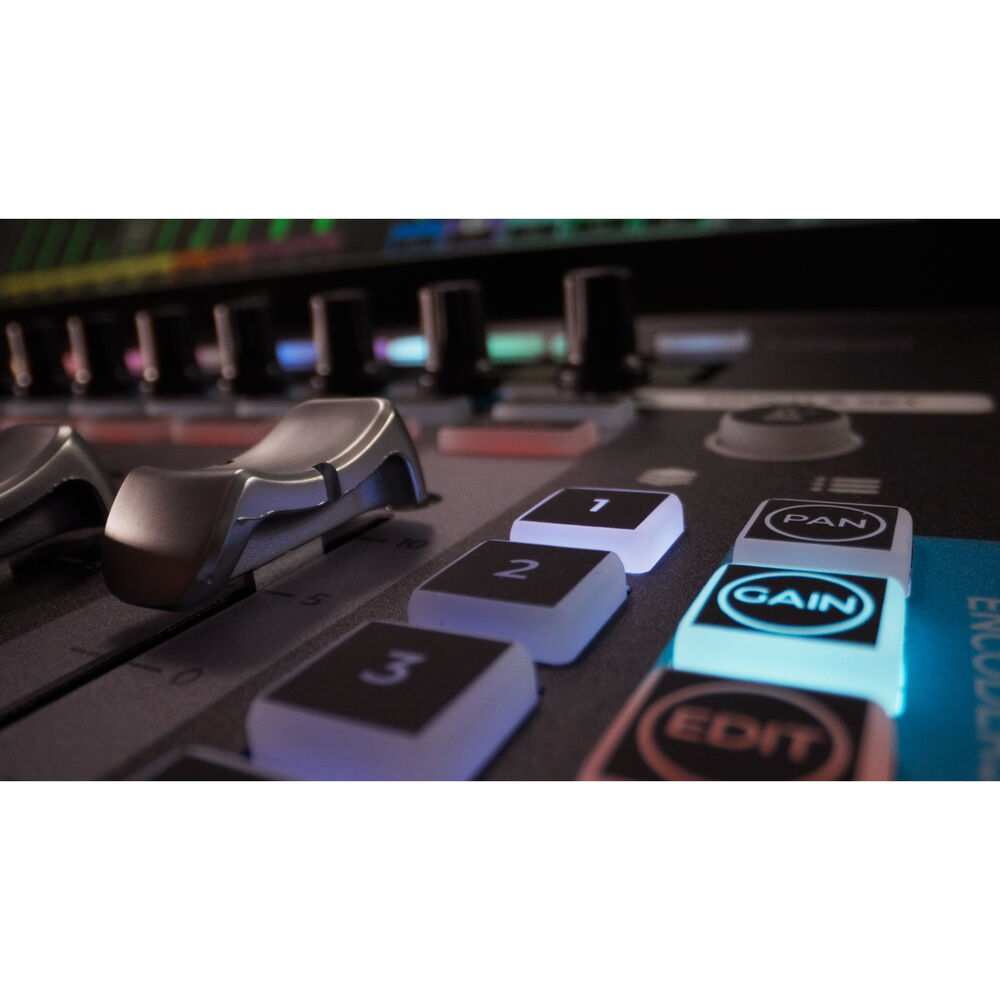

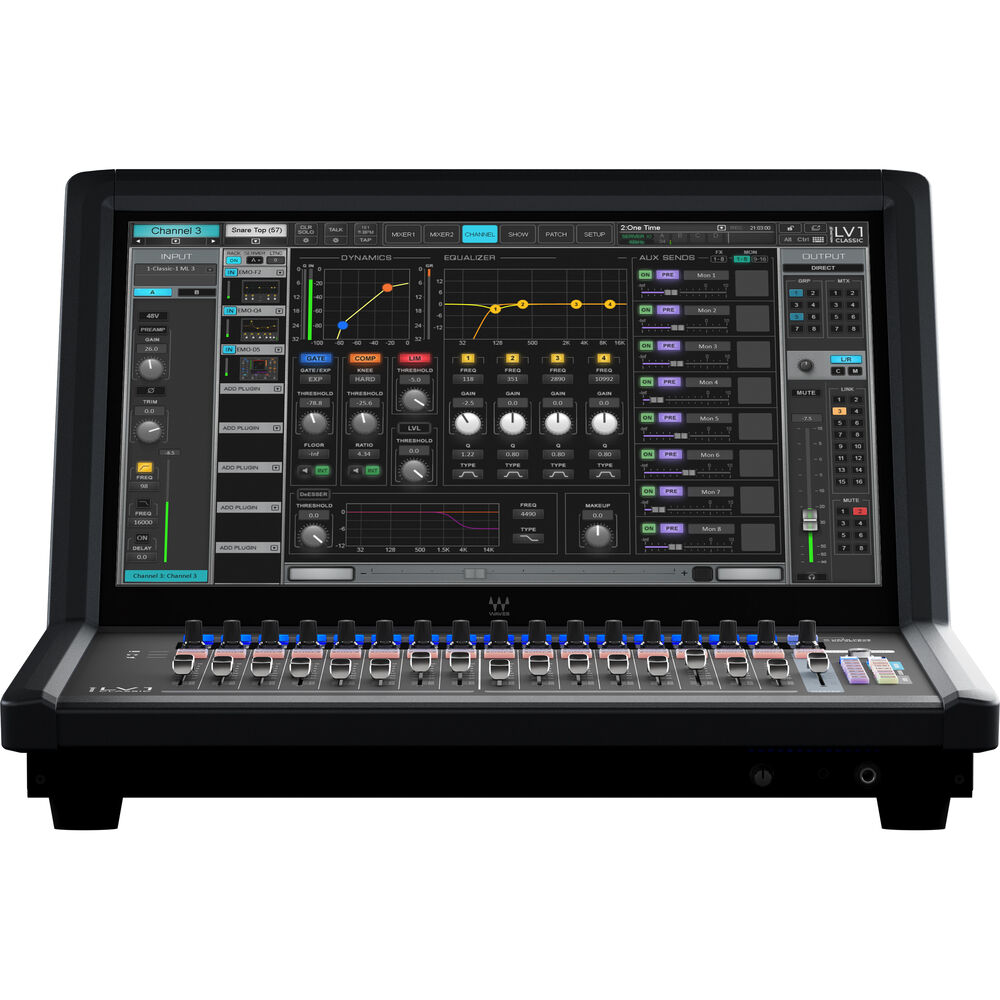

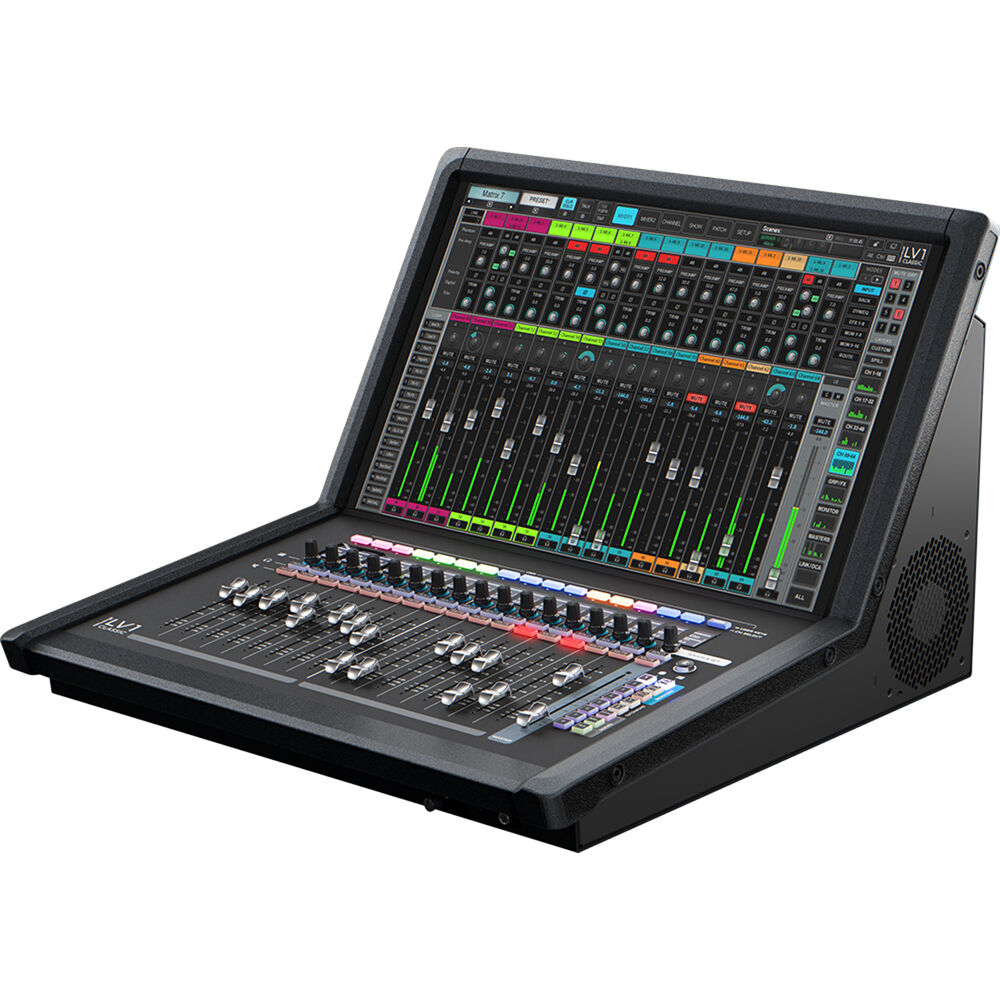

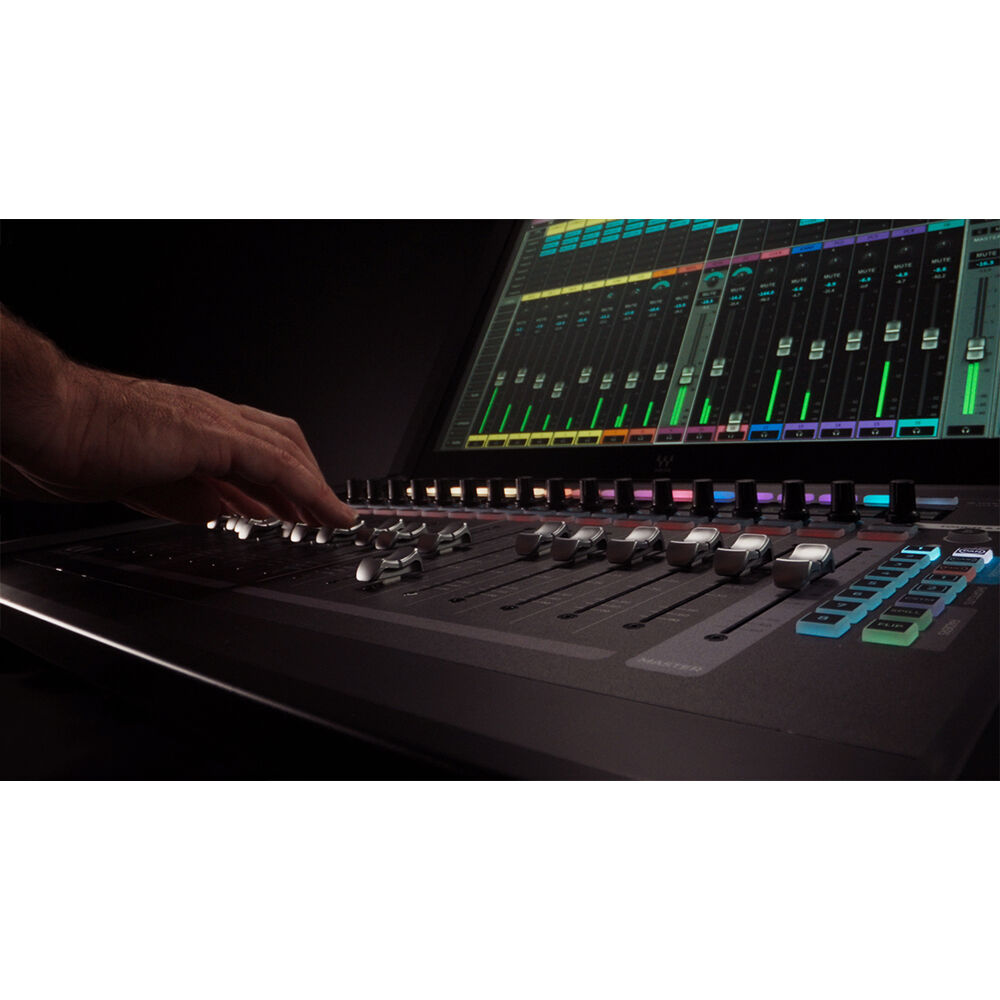

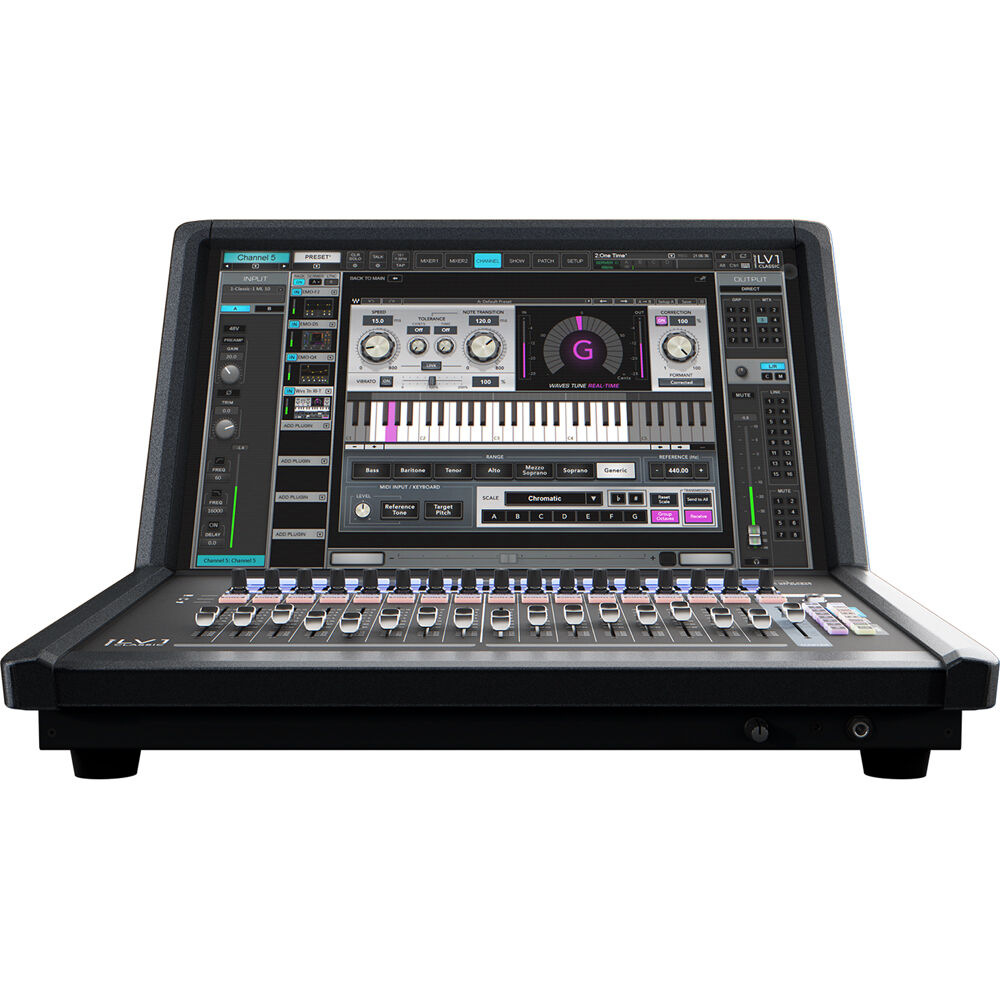

Building upon the proven quality LV1 mixer engine, the Waves eMotion LV1 Classic is the first fully integrated hardware mixer that delivers the preferred console and workflow of live sound engineers worldwide. The LV1 Classic packs the pristine-sounding sound engine into an ergonomic enclosure with a quick-access 21.5" multitouch screen and a powerful tactile control surface with 16+1 100mm Alps faders.

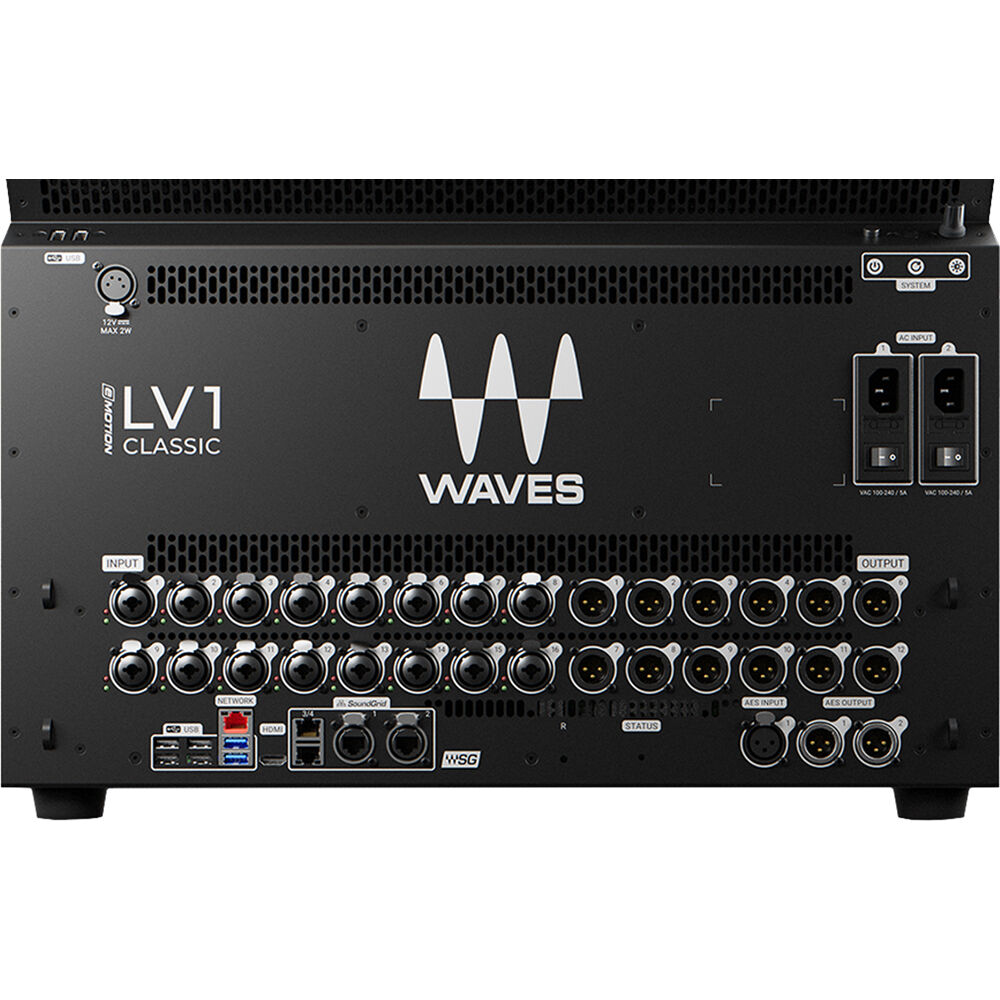

The mixer is capable of mixing up to 64 stereo channels with 44 stereo buses. Its double-precision 32-bit float mix engine works with sample rates from 44.1 to 96 kHz. The rear panel includes 16 Waves Signature preamps and 12 analog line outputs + AES3 I/O for added flexibility. The system is scalable and can be expanded with more I/O, DSP, Dante, MADI, and additional physical fader banks and an external touchscreen.
Note: The LV1 requires a dedicated Ethernet cable from the host computer to the Wi-Fi router to use mobile apps on the same Wi-Fi network. Do NOT run the mobile apps network over the SoundGrid network. If the host computer does not have a second Ethernet port, use a USB-to-Ethernet (or other) adaptor.
Add 24 high-performance, Waves Signature mic preamps and 18 line outputs to your SoundGrid network with the Waves Ionic 24, a digital Soundgrid stagebox housed in a rugged 3 RU rack-mountable chassis. With a secure etherCON port designed for simple hookup to an eMotion LV1 live mixer or any other SoundGrid-compatible hardware/software, the Ionic 24 integrates easily into your stage- or studio-based setup. Its redundant PSU external input enables the stagebox to continue working, even if power to primary power supply fails.
Ionic 24 provides 24 channels of mic/line input on XLR-1/4" combo connectors and 18 line-level outputs on XLR connectors. There is also an XLR AES3 input connector and two XLR AES3 output connectors, and two 1/4" headphone jacks. Most I/O connections are on the front panel. The stagebox features Waves Signature Preamps: fast response, maximum headroom, up to 60 dB of gain, 48V phantom power, and fully discrete analog circuits. A switchable HMX harmonic enhancer adds analog warmth and harmonics without compromising punch or clarity. Preamp impedance is selectable between 2 and 7 kilohms.
| Max I/O Capacity | 64x Input / 44x Output (with Optional Hardware) |
| Number of Analog Input Channels | 16 (16 Mono / 0 Stereo) |
| Number of Mic Preamps | 16 |
| Number of Analog Output Channels | 12 |
| Faders & Level Adjustment | 17x 3.9" / 100 mm Motorized Channel Fader(Touch Sensitive) |
| Built-In Effects | Stereo Delay Stereo Reverb Stereo Vocal Effect Stereo Amp Simulator |
| Analog Inputs | 16x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input |
| Analog Outputs | 12x XLR Line Output |
| Digital I/O | 1x XLR AES3 Input 2x XLR AES3 Output 2x RJ45 Ethernet Input/Output (Wi-Fi Router) 2x etherCON Ethernet Input/Output (Control, I/O) |
| USB | USB-A |
| Wireless | No |
| Rack Mountable | No |
| Max I/O Capacity | 64x Input / 44x Output (with Optional Hardware) |
| Number of Analog Input Channels | 16 (16 Mono / 0 Stereo) |
| Number of Mic Preamps | 16 |
| Number of Analog Output Channels | 12 |
| Mix Routing | 8x Subgroup 24x Aux Send 8x Matrix 3x Main LRC |
| Groups | 8x VCA Group |
| Presets | Yes |
| Display | 21.5" LCD Touchscreen (Backlit, Daylight-Viewable) |
| Faders & Level Adjustment | 17x 3.9" / 100 mm Motorized Channel Fader(Touch Sensitive) |
| Gain/Trim Range | Combo XLR-1/4" Line/Mic: -3 dB to +60 dB (in 1 dB Steps) |
| Dynamic Processing | Input Channels, Buses, Master, Mono Channels, Stereo Channels: Compressor, Multi-Band Compressor, Limiter, Soft Limiter, Gate |
| EQ | Input Channels, Output Buses, Outputs, Subgroups, FX Returns, USB: 4-Band EQ/Parametric/Semi-Parametric/Shelving/Notch/Peak/Tone Cut (Mono Channels) 4-Band EQ/Graphic/Parametric/Semi-Parametric/Shelving/Notch/Peak/Tone Cut (Stereo Channels) 30-Band Graphic (Mono Channels) 30-Band Graphic (Stereo Channels) |
| Graphic EQ | 30-Band |
| Filters | Input Channels, Outputs, Master, FX Returns, Buses, USB, Mono Channels, Stereo Channels: Low-Pass High-Pass Notch |
| Solo/Mute | Solo, Solo-in-Place/AFL, Mute per Input Channel, Bus, FX Bus, Master |
| Built-In Effects | Stereo Delay Stereo Reverb Stereo Vocal Effect Stereo Amp Simulator |
| Audio Delay | Yes |
| Automatic Mic Mixing | No |
| Sample Rates | Up to 96 kHz |
| Bit Depth | Up to 32-Bit |
| Frequency Response | Line Output: 10 Hz to 40 kHz +0.1/-1 dB (at 96 kHz) 20 Hz to 20 kHz ±0.1 dB (at 48 kHz) Headphone Output: 10 Hz to 40 kHz +0.1/-1 dB (at 96 kHz) 20 Hz to 20 kHz +0.1/-0.1 dB (at 48 kHz) Mic/Line Input to Main Output: 20 Hz to 20 kHz ±0.1/18 dB 10 Hz to 40 kHz ±1/18 dB |
| Analog Dynamic Range | Input: > 110 dB at Unity Gain |
| I/O Impedance | Line/Mic Input: 2 Kilohms (XLR, Switchable) 7 Kilohms (XLR, Switchable) 14.6 Kilohms (TRS) Line Output: 150 Ohms Headphone Output: 20 Ohms |
| Signal Generator | Yes |
| Analog Inputs | 16x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input |
| Analog Outputs | 12x XLR 3-Pin Balanced Line Output |
| Phantom Power | +48 V |
| Digital I/O | 1x XLR AES3 Input 2x XLR AES3 Output 2x RJ45 Ethernet Input/Output (Wi-Fi Router) 2x etherCON Ethernet Input/Output (Control, I/O) |
| MIDI I/O | No |
| USB | 4x USB-A (Audio Playback, External Memory, Host Connection, Multitrack Record) |
| USB I/O Capacity | 16x Input / 2x Output |
| Other I/O | 2x etherCON/RJ45 Expansion In/Out (Bi-Directional) |
| Expansion Ports | No |
| Wireless | No |
| External Display I/O | 1 x HDMI |
| Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 A |
| Rack Mountable | No |
| Dimensions | 22.1 x 22 x 15.8" / 56.1 x 55.9 x 40.1 cm |
| Weight | 38 lb / 17.2 kg |
| Package Weight | 57 lb |
| Box Dimensions (LxWxH) | 25.5 x 25.5 x 20" |
