Description
Designed for reliable media broadcasts, the Ubiquiti Enterprise Audio/Video Fiber 22-Port SFP+ 10G Managed Switch supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio. It also has a precision OCXO clock and an optional GPS grandmaster input through the SMA connector for deterministic media synchronization.

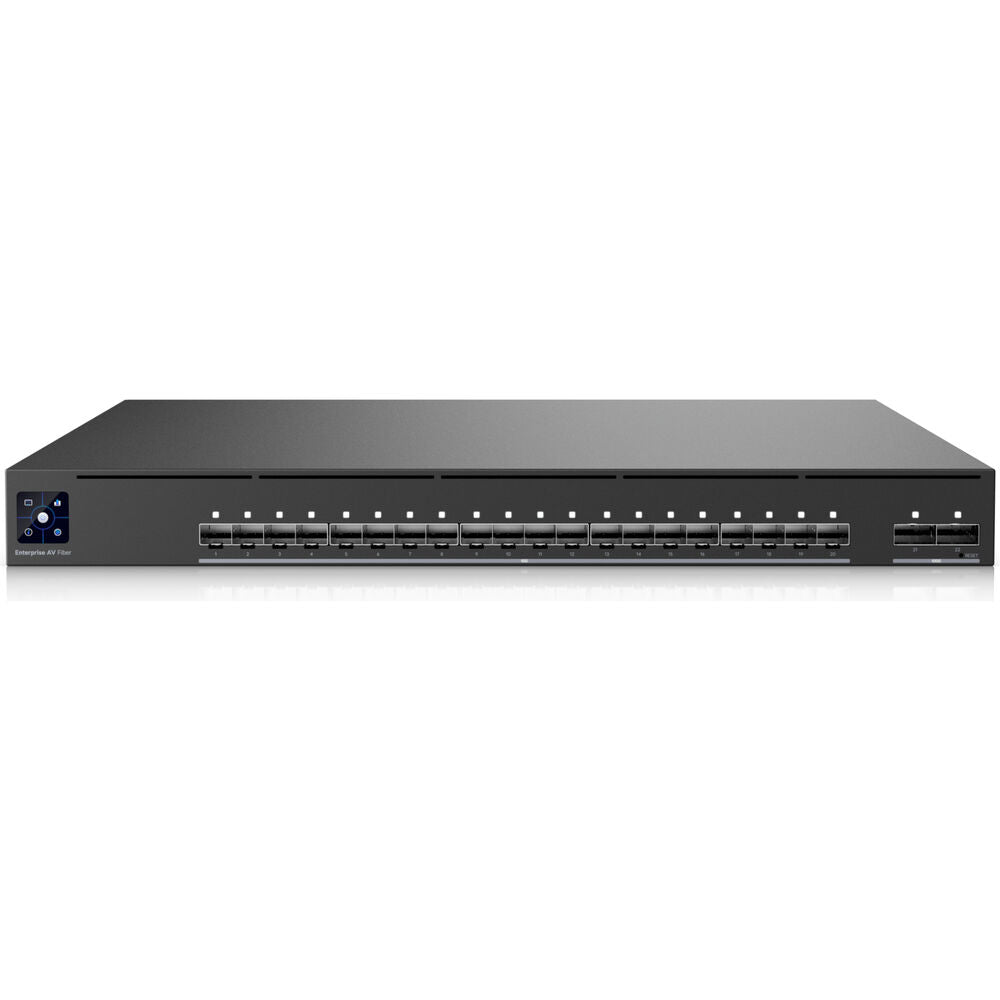

This rack mountable switch includes 20 SFP+ slots that each support up to 10 Gb/s transfers. There are also two QSFP28 slots for up to 100 Gb/s uplinks. Etherlighting support makes it easy to find and troubleshoot ports in darkened environments. An 800 Gb/s switching capacity and 595 Mpps forwarding rate ensure smooth data transfers. A 1.3" touchscreen allows you to manage the configuration and monitor connected devices. Dual hot-swappable 150W power modules provide redundancy. Additionally, four hot-swappable fan modules and a steel chassis help to maintain optimal performance.
| Networking I/O | 23 Total Connections Supporting up to 100 GbE |
| Stackable | No |
| Switching Bandwidth | 800 Gb/s 400 Gb/s (Non-Blocking) |
| Networking I/O | 20x SFP+ 10 GbE 2x SFP28 100 GbE 1x RJ45 Gigabit Ethernet |
| Other I/O | 1x RJ45 RS-232 (Console) 1x SMA Antenna |
| Stackable | No |
| Layer Services Supported | Layer 2, Layer 3 |
| Supported Protocols | IGMP Snooping IPv4 Link Aggregation Port Mirroring |
| MAC Address Table Size | 32K |
| Security Features | DHCP Snooping Storm Control |
| Forwarding Rate | 595 Mpps |
| Switching Bandwidth | 800 Gb/s 400 Gb/s (Non-Blocking) |
| Packet Buffer | 8 MB |
| Power Draw | 150.00 W (Max) |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Redundant |
| Certifications | CE, FCC, IC |
| Operating Conditions | 23 to 104°F / -5 to 40°C at 10 to 90% Humidity |
| Cooling System | Fan |
| Material of Construction | Steel |
| Indicator Lights | Yes |
| Rack Mountable | Yes 1 U |
| Dimensions | 18.9 x 17.4 x 1.7" / 480 x 442.4 x 43.7 mm |
| Weight | 19.73 lb / 8.95 kg |
| Package Weight | 36 lb |
| Box Dimensions (LxWxH) | 30.13 x 23.63 x 9.25" |
