| ₹ 99999999.0 includes GST and import duties. | |
| B2B customers can avail ₹ 15249999.85 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

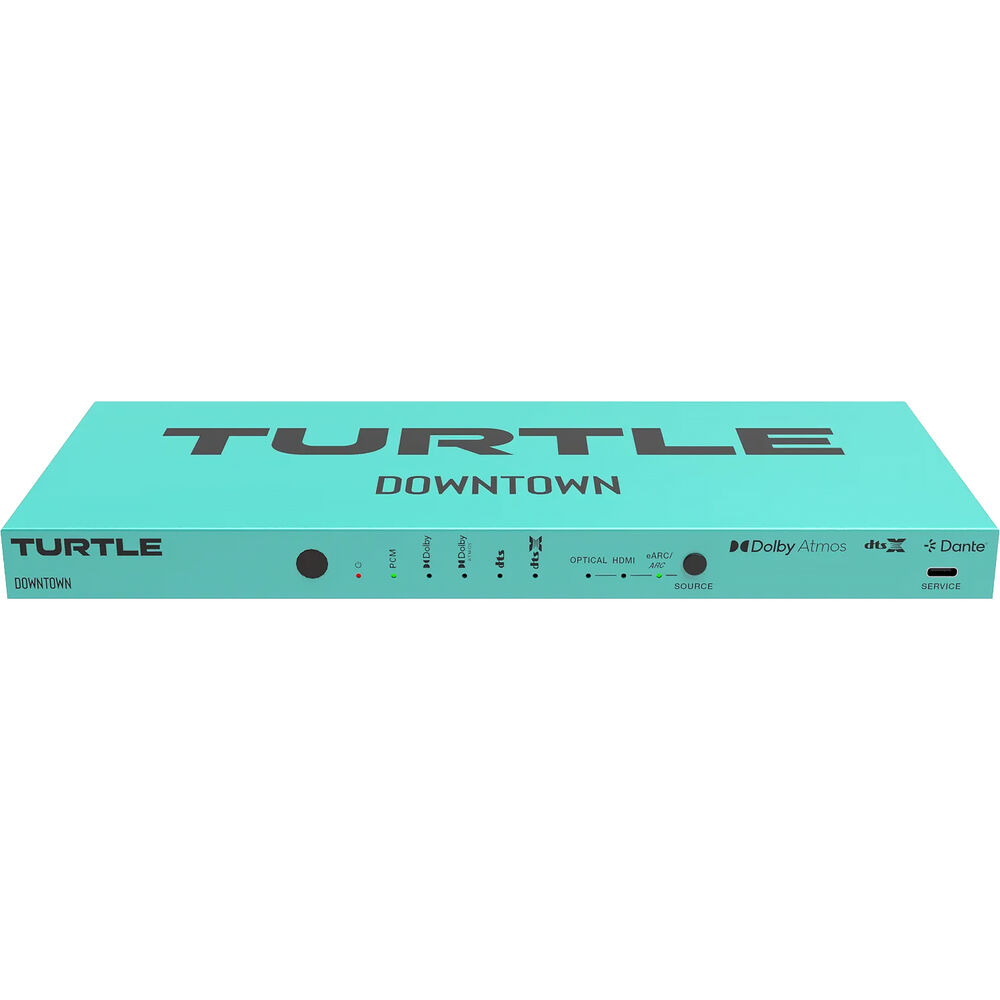

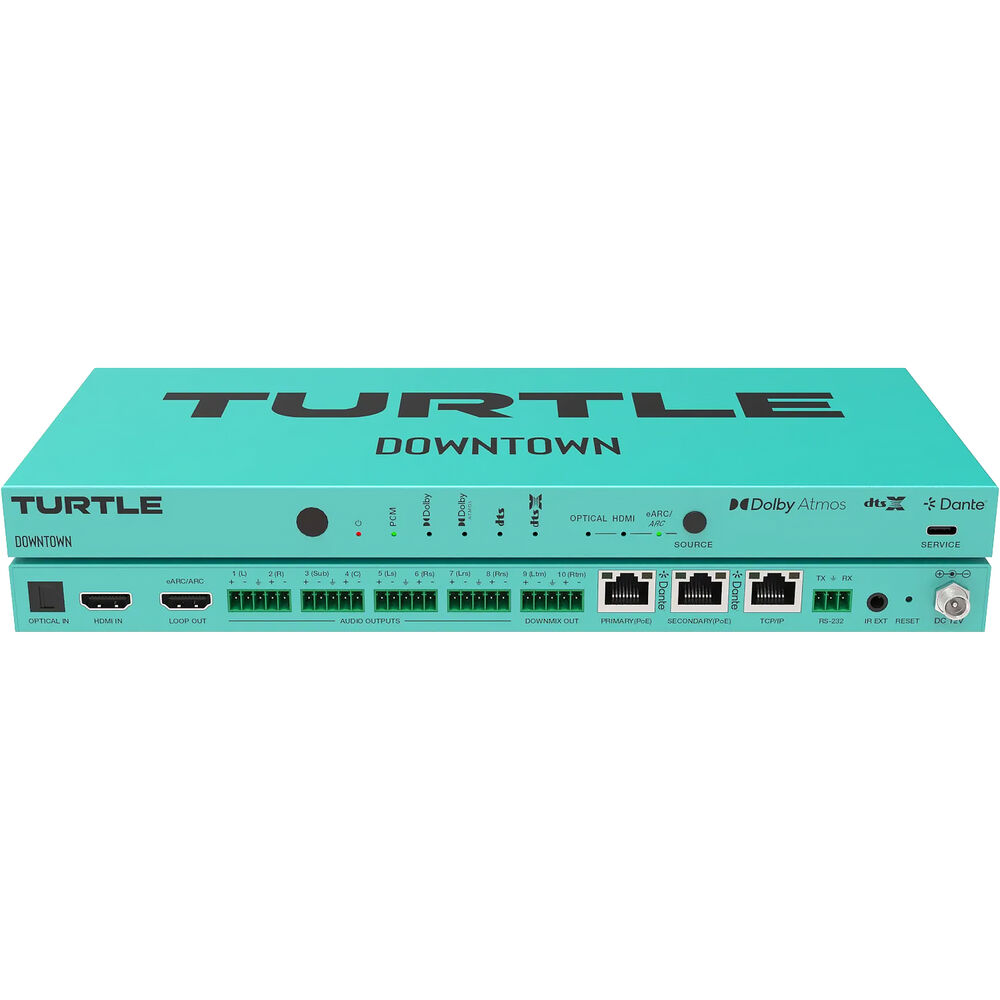

The DOWNTOWN Multichannel Encoder from Turtle AV encodes Dolby Atmos and DTS:X signals to independent Dante channels for flexible routing. The encoder features HDMI ports that support up to 8K60 video. Other input sources include Optical, ARC, and eARC inputs. Additional audio formats supported by DOWNTOWN include Dolby Digital, DD+, Dolby Atmos, DTS Digital Surround, DTS:X, and PCM 9.1/7.1.2/7.1/5.1/2.0. Built-in redundancies make the machine ultrareliable in broadcast applications.
| Video I/O | Input 1x HDMI 2.1 1x S/PDIF Optical |
| Embedded Audio | HDMI |
| Max Recording Modes | No |
| IP Video | Encoding 7680 x 4320 at 23.98/24/25/29.97/30/50/60fps 5120 x 2160 at 50/60fps 4096 x 2160 at 23.98/24/25/29.97/30/50/60/120/59.94pfps 3840 x 2160 at 23.98/24/25/29.97/30/50/29.97p/59.94/60/120fps 1920 x 1080 at 23.98/24/25/29.97/30/50/29.97p/59.94/60fps 1920 x 1080i at 50/59.94/60fps 1280 x 720 at 50/59.94/60fps 720 x 480i at 59.94fps 720 x 480p at 59.94fps 720 x 576i at 50fps 720 x 576p at 50fps |
| IP Audio | Encoding |
| Media/Memory Card Slot | No |
| Video I/O | Input 1x HDMI 2.1 1x S/PDIF Optical |

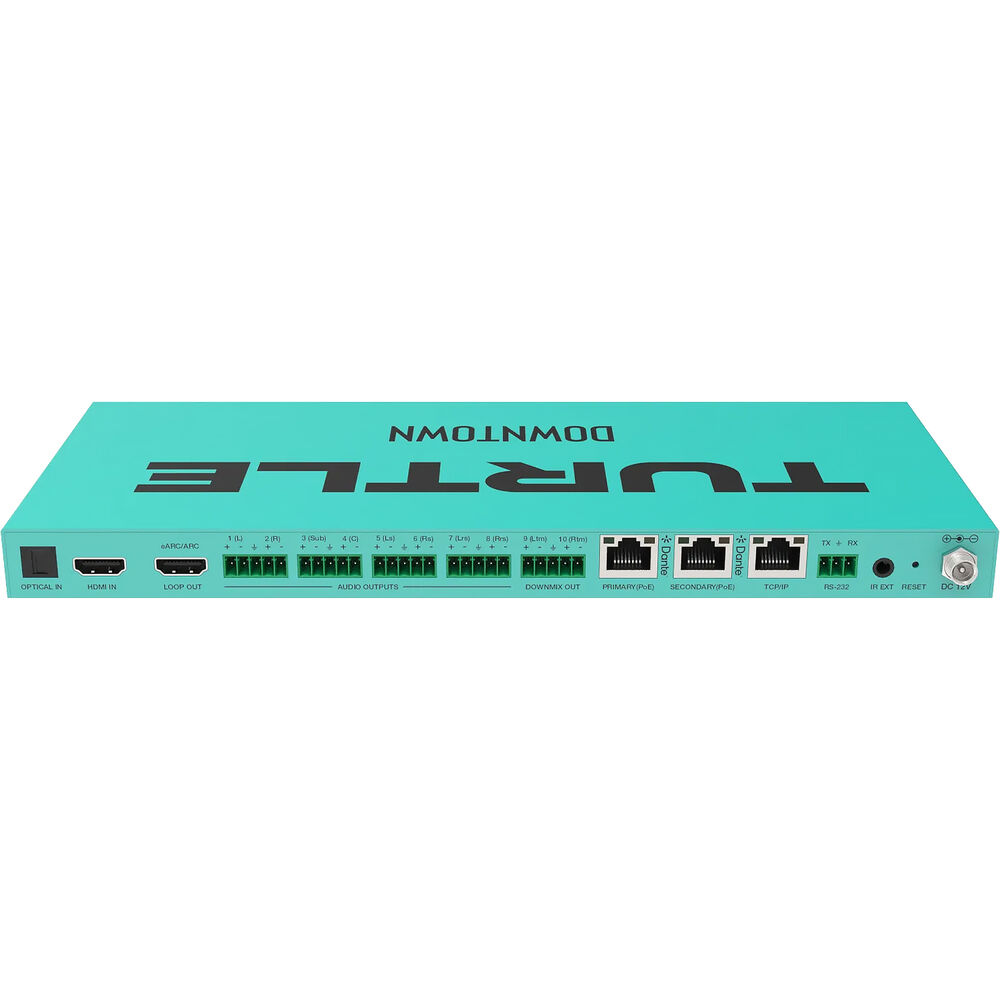

| Audio I/O | Output 9x Block 5-Pin |
| Other I/O | Output 2x RJ45 (LAN) 1x 1/8" / 3.5 mm (IR) Input/Output 1x Block 5-Pin (RS-232) 1x RJ45 (LAN) Input 1x USB-C (Firmware) |
| Embedded Audio | HDMI |
| Internal Recording | No |
| HDCP Support | Yes: Version 2.3 |
| Broadcast System Compatibility | NTSC, PAL |
| IP Video | Encoding 7680 x 4320 at 23.98/24/25/29.97/30/50/60fps 5120 x 2160 at 50/60fps 4096 x 2160 at 23.98/24/25/29.97/30/50/60/120/59.94pfps 3840 x 2160 at 23.98/24/25/29.97/30/50/29.97p/59.94/60/120fps 1920 x 1080 at 23.98/24/25/29.97/30/50/29.97p/59.94/60fps 1920 x 1080i at 50/59.94/60fps 1280 x 720 at 50/59.94/60fps 720 x 480i at 59.94fps 720 x 480p at 59.94fps 720 x 576i at 50fps 720 x 576p at 50fps |
| IP Audio | Encoding |
| Transport Protocols | Dante |
| Media/Memory Card Slot | No |
| Wireless | Wi-Fi |
| Cellular Support | No |
| Power I/O | 1x Barrel Input |
| PoE Support | Yes: PoE Proprietary |
| Operating Conditions | -4 to 140°F / -20 to 60°C at 20 to 90% Humidity |
| Rack Form Factor | 1 RU |
| Certifications | TAA |
| Package Weight | 3.6 lb |
| Box Dimensions (LxWxH) | 14 x 8.5 x 3.25" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 97999999.02 |
| 3-5 | ₹ 96999999.03 |
| 5-10 | ₹ 94999999.05 |
| 10+ | ₹ 92999999.07 |
Bulk discount will be automatically applied during checkout based on quantity.
